Braided Flexible Metal Hose Union Type Flexible Pipe Connectors

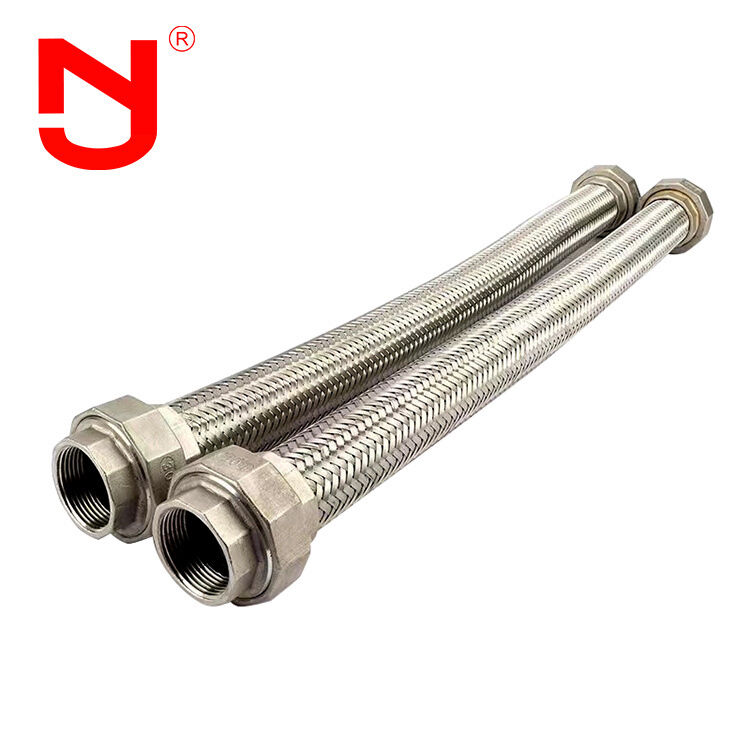

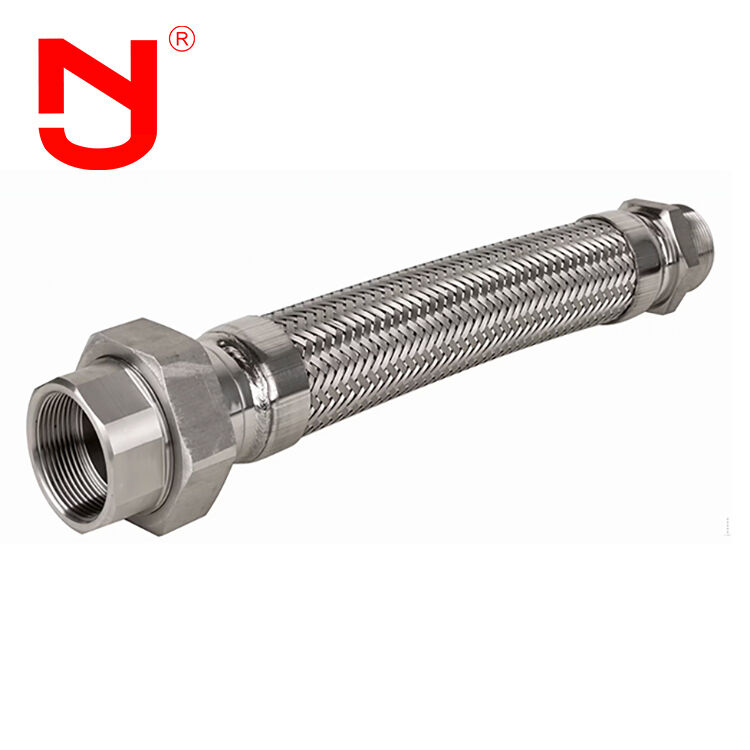

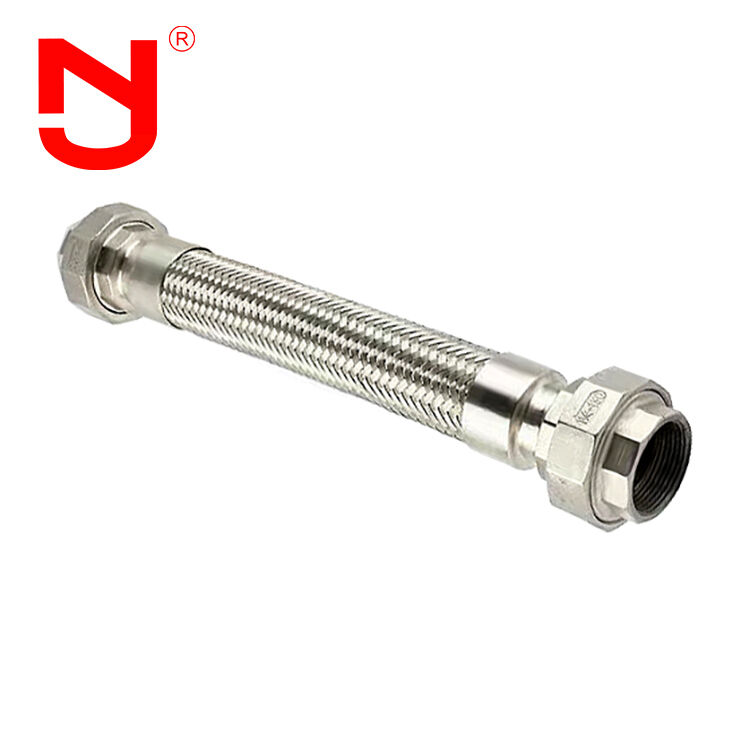

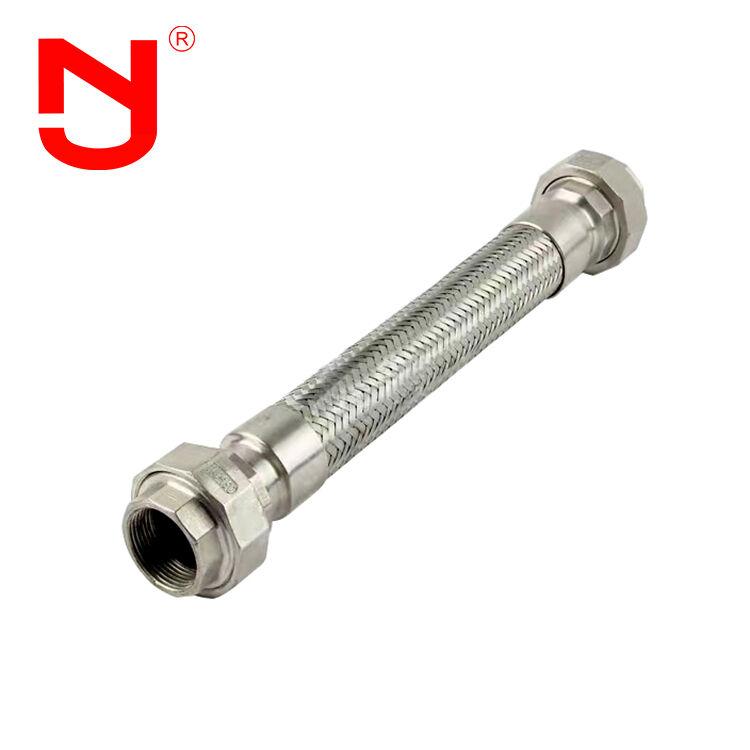

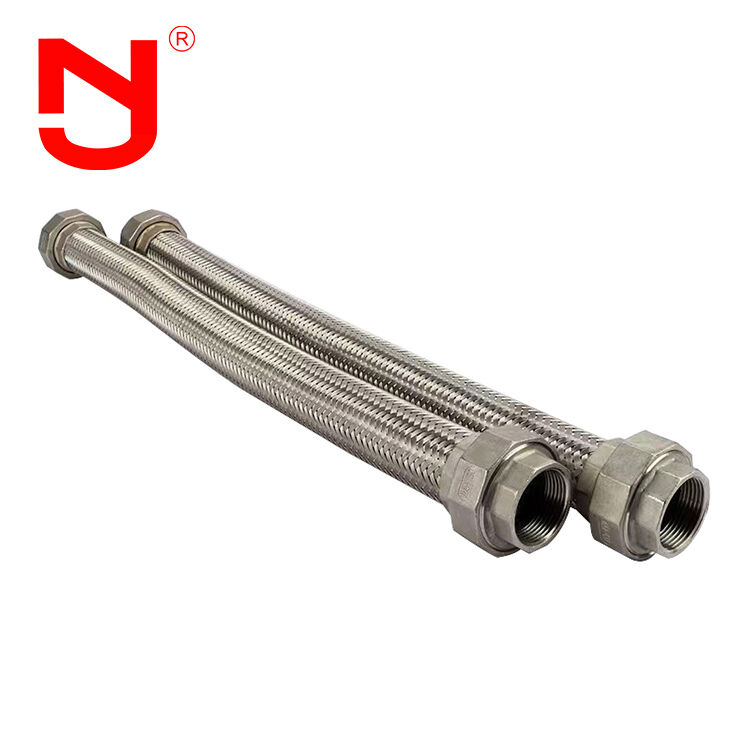

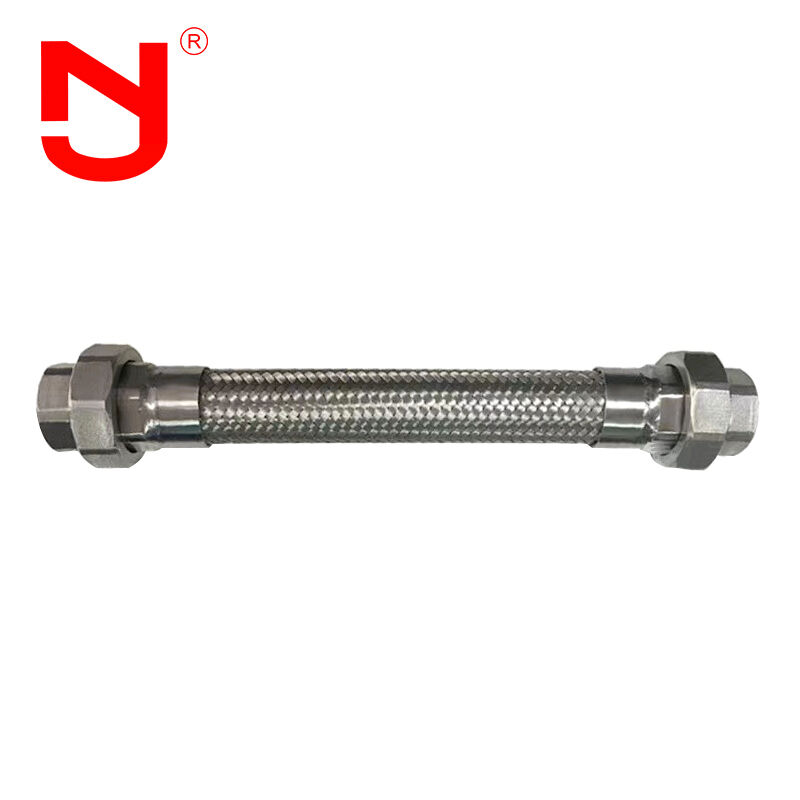

Union Type Flexible Pipe Connectors Stainless Steel are flexible piping connectors consisting of a stainless steel corrugated metal hose reinforced with an external stainless steel braid and fitted with union-type end connections. They are designed to accommodate vibration, thermal expansion, and slight misalignment in piping systems, while providing high pressure capability, corrosion resistance, and secure, leak-tight connections for industrial fluid and gas applications.
Performance Characteristics
The main elastic element of flexible expansion joint is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint accommodates pipeline movement in axial, transverse and angular directions.
- Absorbs axial, transverse and angular thermal deformation of pipelines
- Reduces equipment vibration impact on pipeline systems
- Compensates for pipeline deformation caused by seismic activity and ground settlement
Technical Specifications
Metal Hose Main Data
| Diameter (mm) |
Pressure Grade (Mpa) |
Available Area of Bellows (c㎡) |
Max Size of External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-493 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-609 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490-590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502-602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | 698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | 692 |
Manufacturing Process
Union Type Flexible Pipe Connectors Stainless Steel can be processed into different types according to specific application requirements.
Material Specifications
- Bellows Body: Stainless Steel 304, 316L
- Flange Materials: Q235 carbon steel, 304, 316L stainless steel
Jingning brings over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, disassembly joints, and other industrial pipe fittings. Our flexible expansion joints meet international standards including GB, ISO, DIN, ANSI, BS, JIS, as well as custom requirements.
Product Advantages
- Competitive factory-direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Rigorous quality control exceeding industry standards
- Custom mold base specifications and OEM services
- Free product samples available
- Extensive inventory for quick delivery
Applications
Due to their flexibility, these pipe connectors compensate for temperature differential deformation and other movements between equipment and pipelines, prevent vibration transmission, reduce pipeline thrust on equipment, and accommodate uneven tank foundation settlement. Flexible expansion joints are widely used across multiple industries including chemical processing, oil refining, power generation, light industry, nuclear applications, metallurgy, machinery, instrumentation, marine, and aerospace sectors.
Frequently Asked Questions
Q1: Can the Union Type Flexible Pipe Connectors Stainless Steel be marked with customized logo?
A1: Yes, they can be marked with your logo. We provide comprehensive OEM & ODM services.
Q2: What's the face to face length of Union Type Flexible Pipe Connectors Stainless Steel?
A2: Standard face to face lengths include L130, L152, L203. We also accept custom length specifications according to your requirements.
Q3: Can you provide drawings of Union Type Flexible Pipe Connectors Stainless Steel?
A3: Yes, we provide detailed technical drawings. Please contact us for specific pipe flex connector drawings.
Q4: What certificates of Union Type Flexible Pipe Connectors Stainless Steel can you provide?
A4: We provide CE and ISO certifications for our products.
