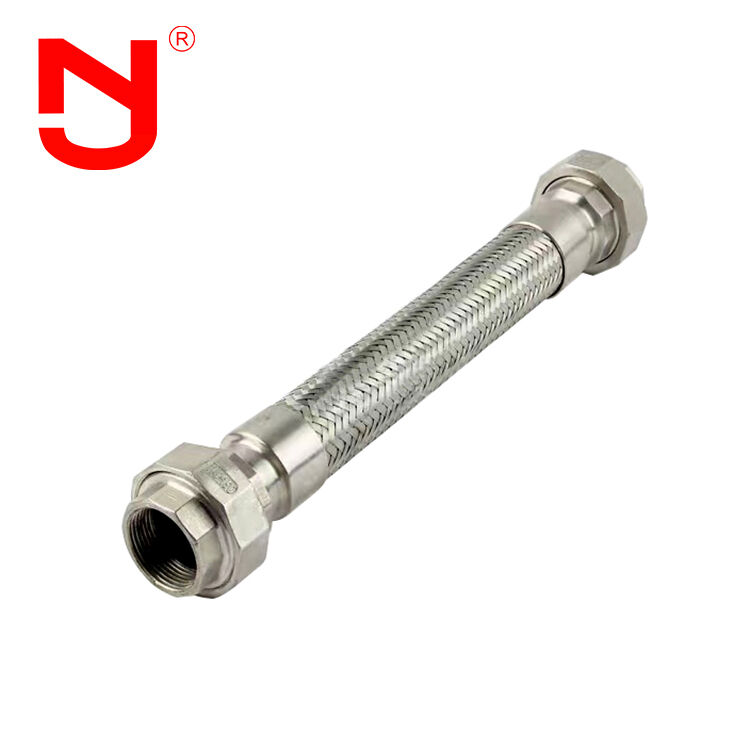

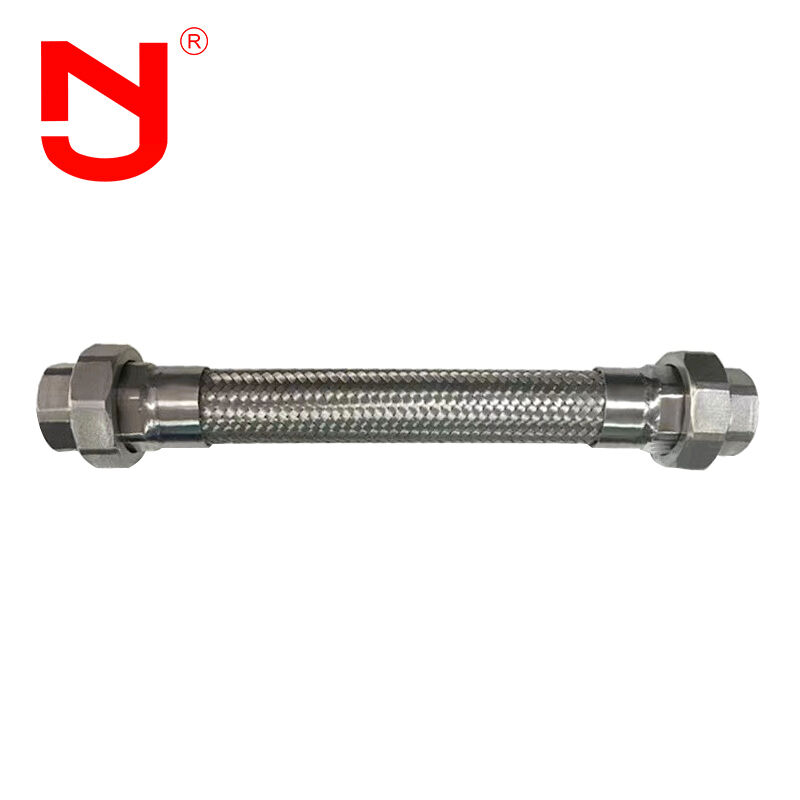

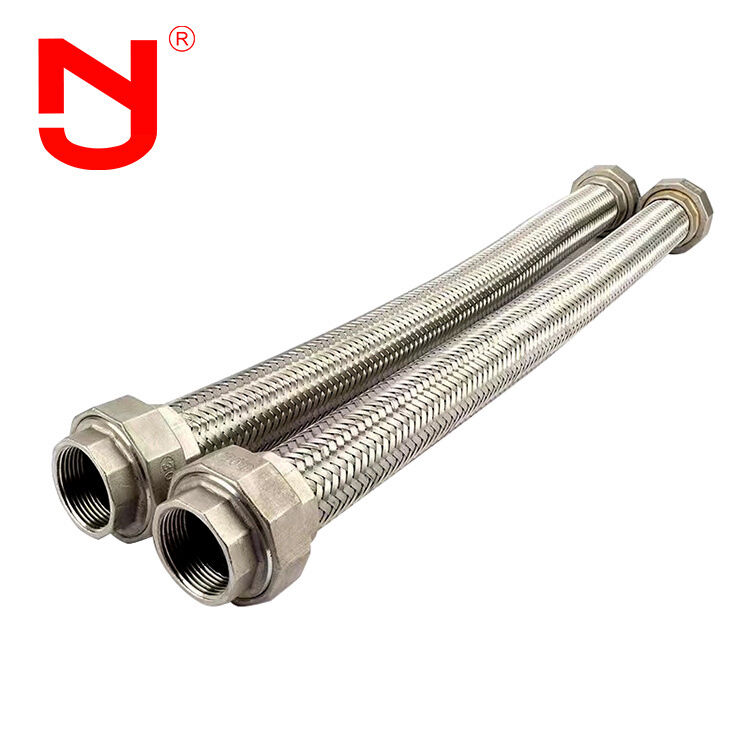

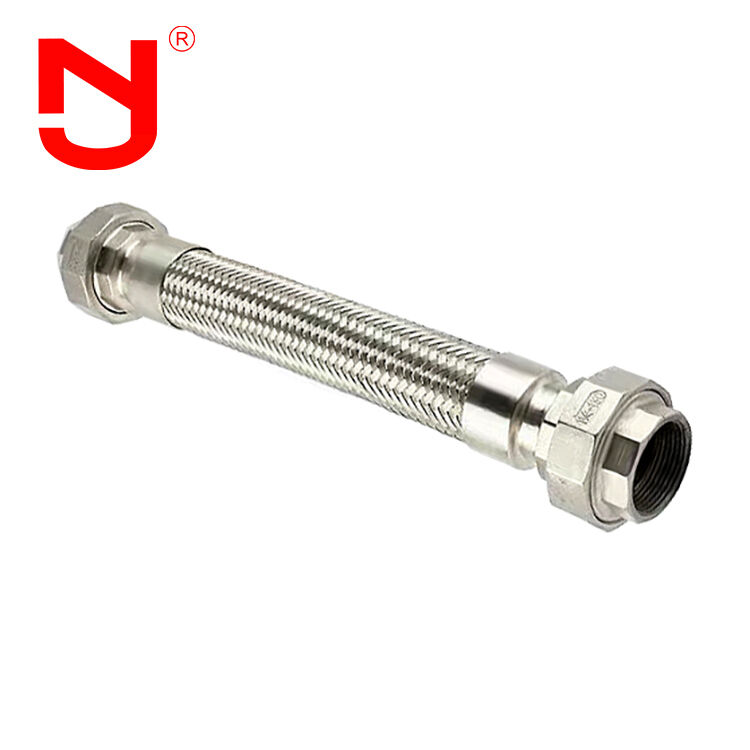

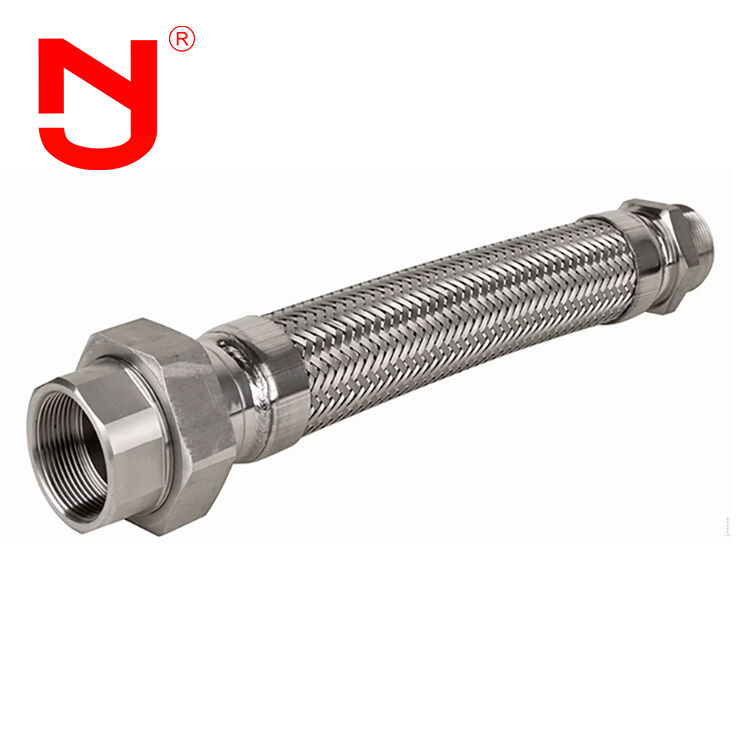

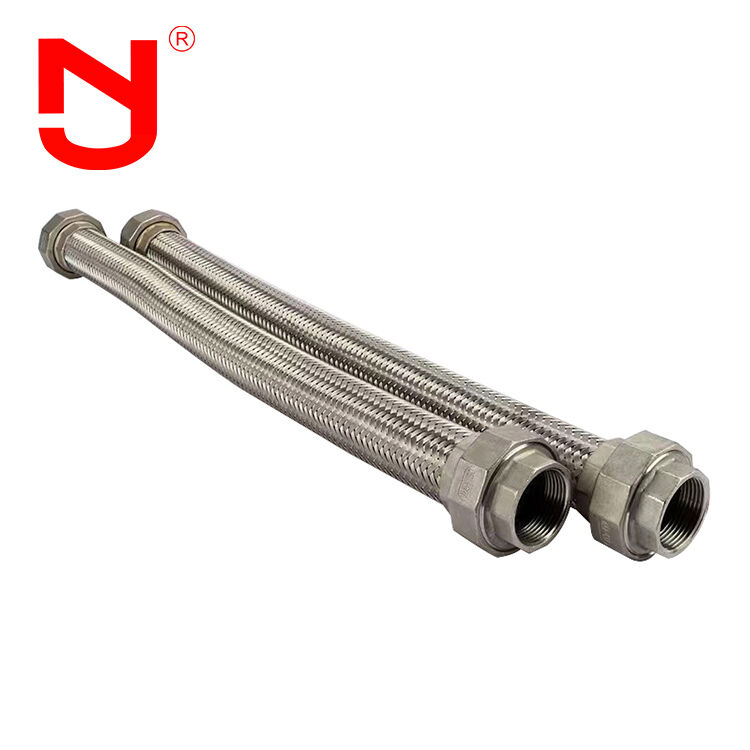

Stainless Steel Wire Braided Flexible Metal Hose Union Type
Union Type Metal Braided Flex Hoses are flexible piping assemblies composed of a metal corrugated inner hose reinforced with an external braided layer and fitted with union-type end connections. They are designed to absorb vibration, accommodate thermal expansion, and compensate for minor misalignment in piping systems, while providing high pressure capability, mechanical strength, corrosion resistance, and reliable, leak-tight performance in industrial applications.
Performance Characteristics
The main elastic element of flexible expansion joint is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint accommodates pipeline movement in axial, transverse and angular directions. Flexible expansion joint can perform the following functions:
- Absorbs axial, transverse and angular thermal deformation of the pipeline
- Reduces equipment vibration impact on pipeline systems
- Compensates for pipeline deformation caused by seismic activity and ground settlement
Technical Specifications
| Diameter (mm) |
Pressure Grade (Mpa) |
Available Area of Bellows (c㎡) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-493 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-609 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490-590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502-602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | 698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | 692 |
Manufacturing Process
JINGNING's high-quality Union Type Metal Braided Flex Hoses are manufactured with precision and expertise:
Union Type Metal Braided Water Flexible can be processed into different types according to specific requirements:
- Bellow Body Materials: Stainless Steel 304, 316L
- Flange Materials: Q235 carbon steel, 304, 316L stainless steel
With over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, disassembly joints, and other industrial pipe fittings, Jingning products meet international standards including GB, ISO, DIN, ANSI, BS, JIS and customer-specific requirements.
Product Advantages
- Competitive factory-direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Strict quality control exceeding industry standards
- Custom mold base specifications and OEM services
- Free product samples available
- Large inventory for immediate delivery
Applications
Due to their flexibility, pipe flex connectors can compensate for temperature differential deformation and other movements between equipment and pipelines, prevent vibration, reduce pipeline thrust on equipment, and accommodate uneven tank foundation settlement. Flexible expansion joints are widely used in chemical processing, oil refining, power generation, light industry, nuclear energy, metallurgy, machinery, instrumentation, marine, and aerospace applications. With increasing use of power and heat pipelines in industrial and civil sectors, the demand for pipe flex connectors continues to grow.
Frequently Asked Questions
Q: Can the Union Type Metal Braided Flex Hoses be marked with customized logo?
A: Yes, they can be marked with your logo. We provide comprehensive OEM & ODM services.
Q: What's the face to face length of Union Type Metal Braided Flex Hoses?
A: Standard face to face lengths include L130, L152, L203. We also accept customized lengths according to your specific requirements.
Q: Can you provide drawings of Union Type Metal Braided Flex Hoses?
A: Yes, we can provide detailed drawings. Please contact us to receive the pipe flex connector drawings.
Q: What certificates can you provide for Union Type Metal Braided Flex Hoses?
A: We provide CE and ISO certifications for our products.
