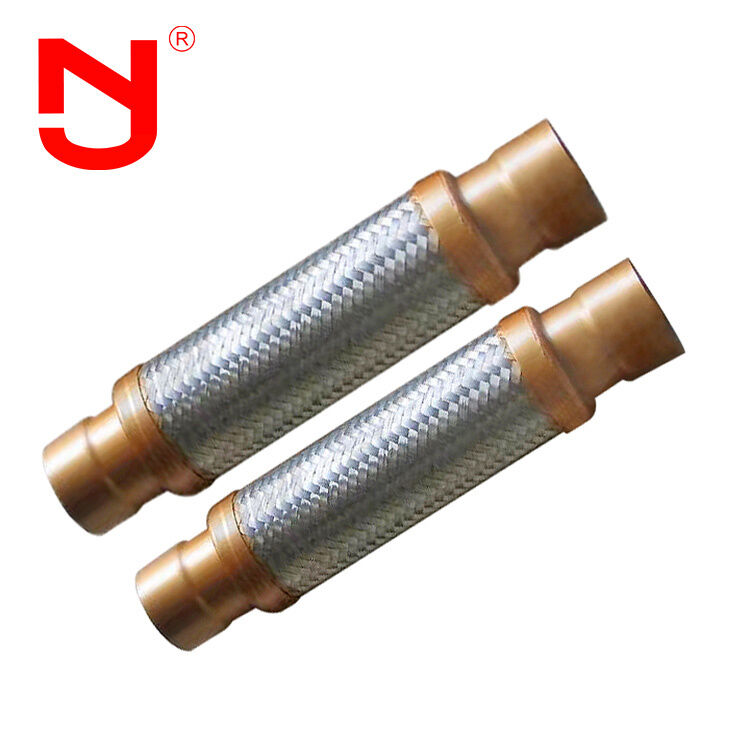

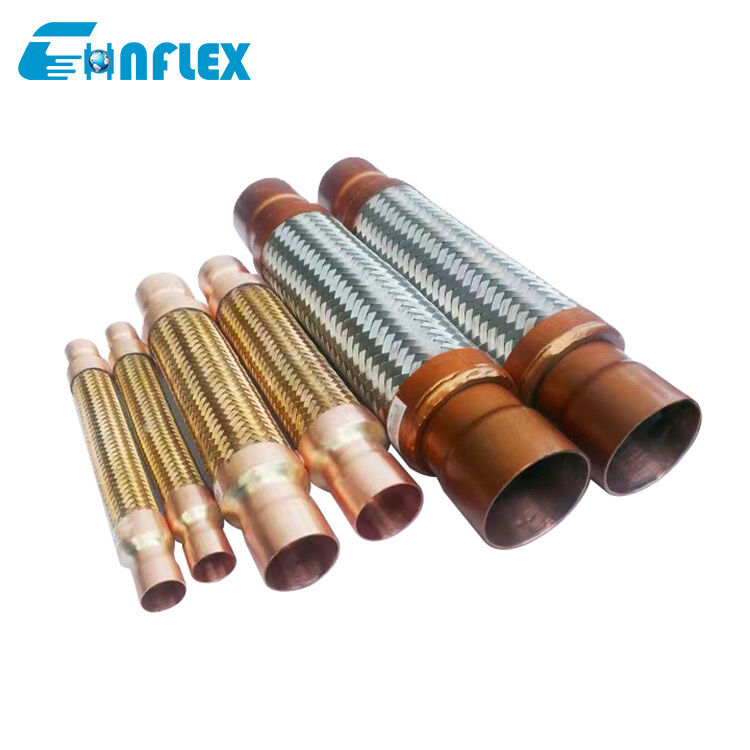

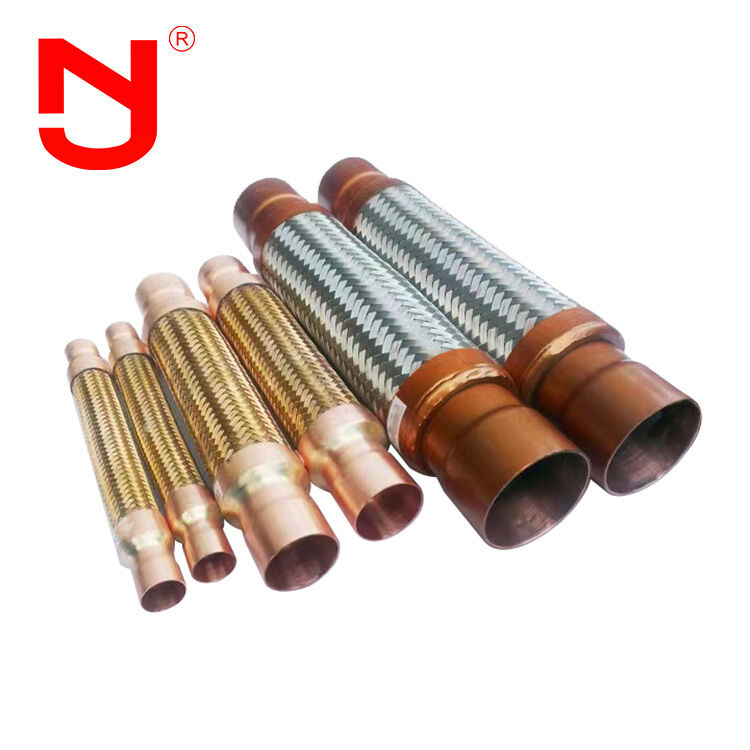

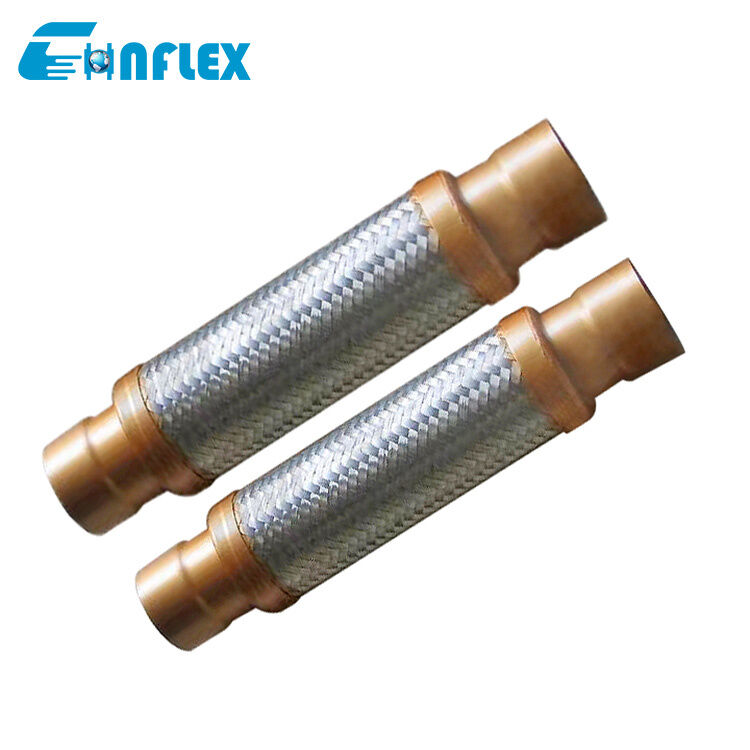

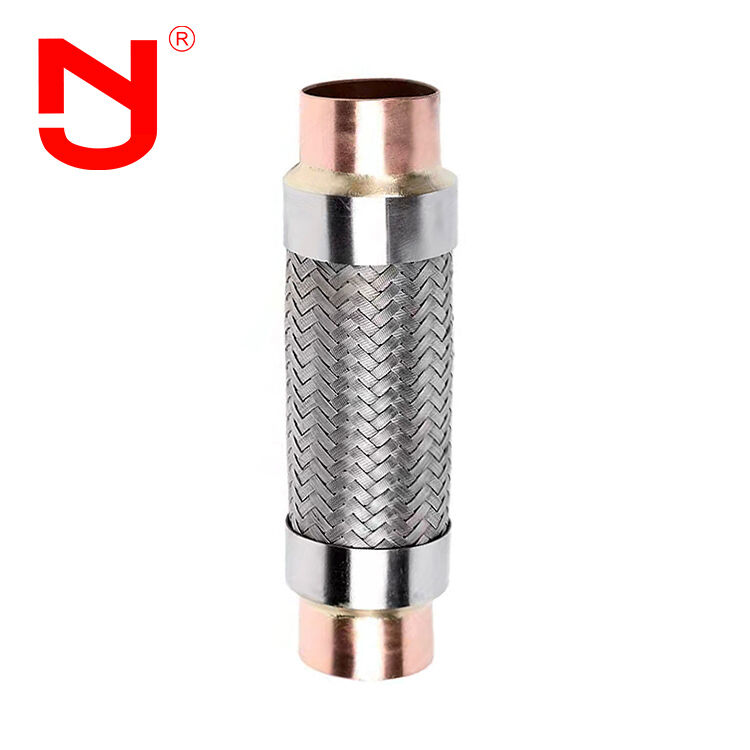

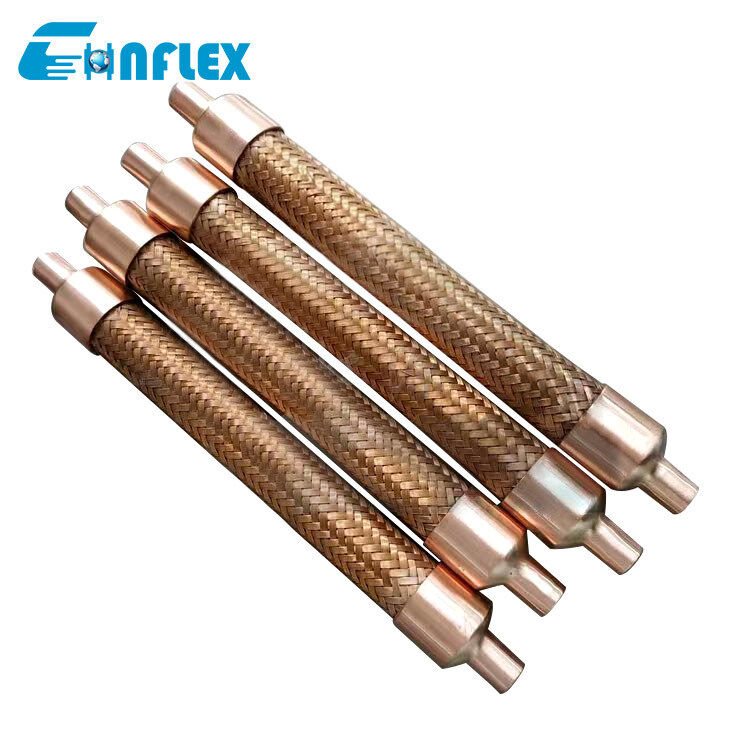

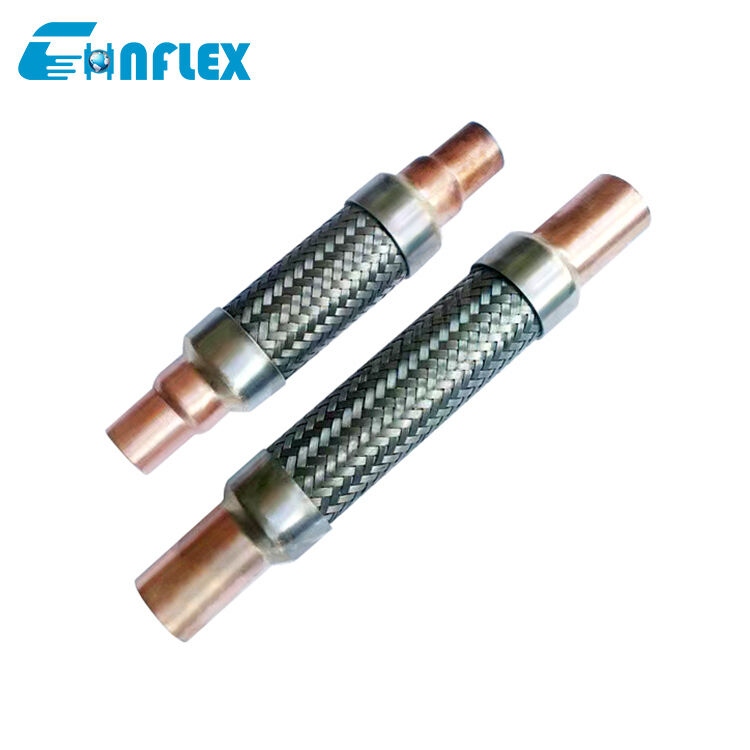

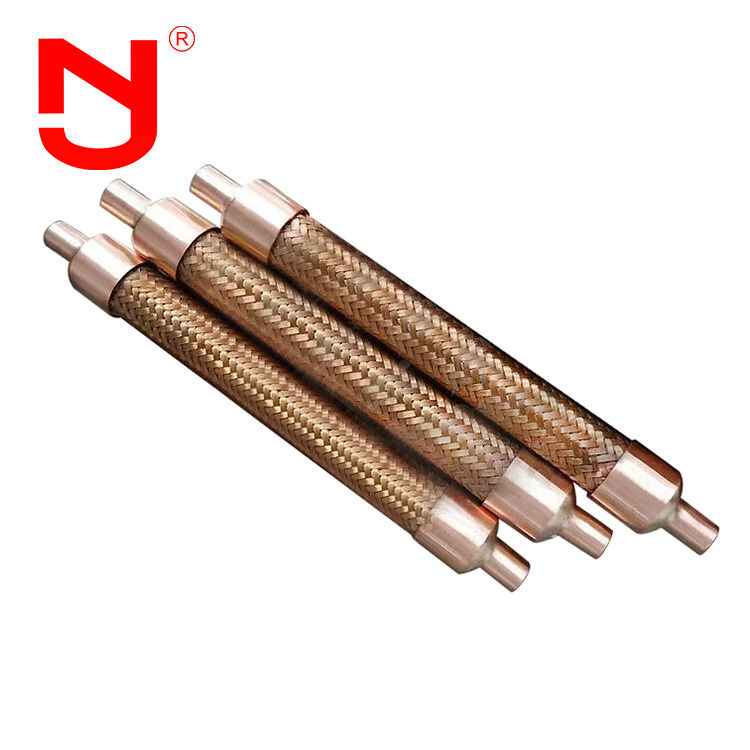

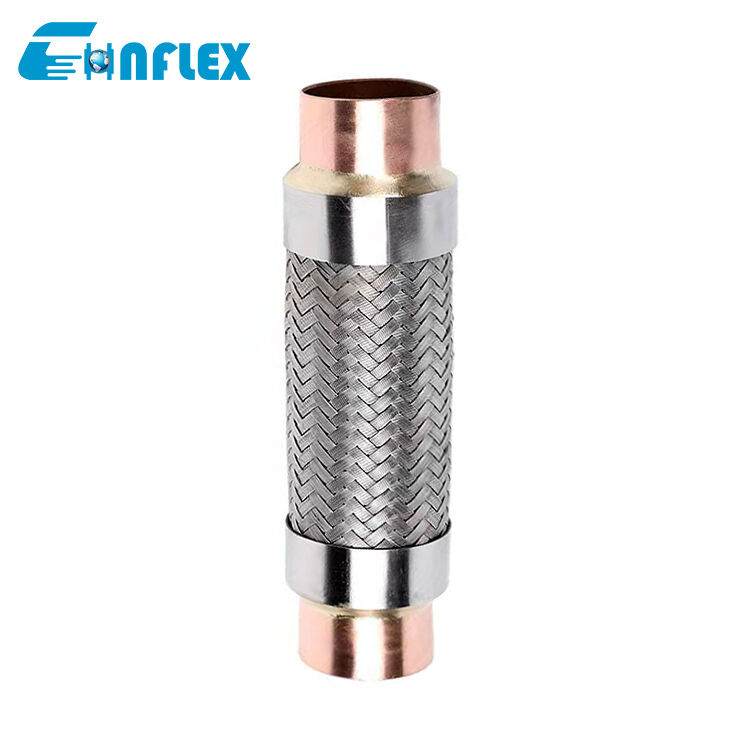

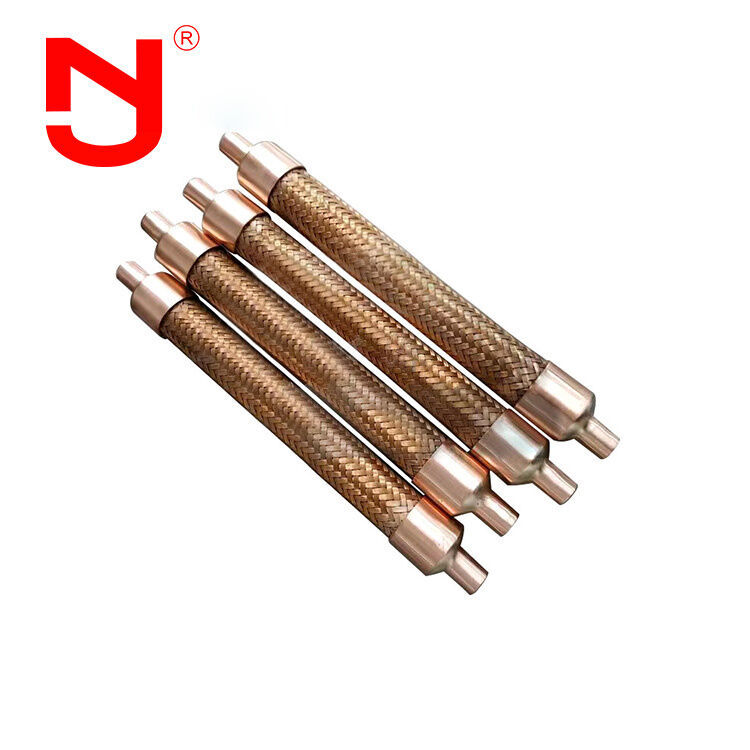

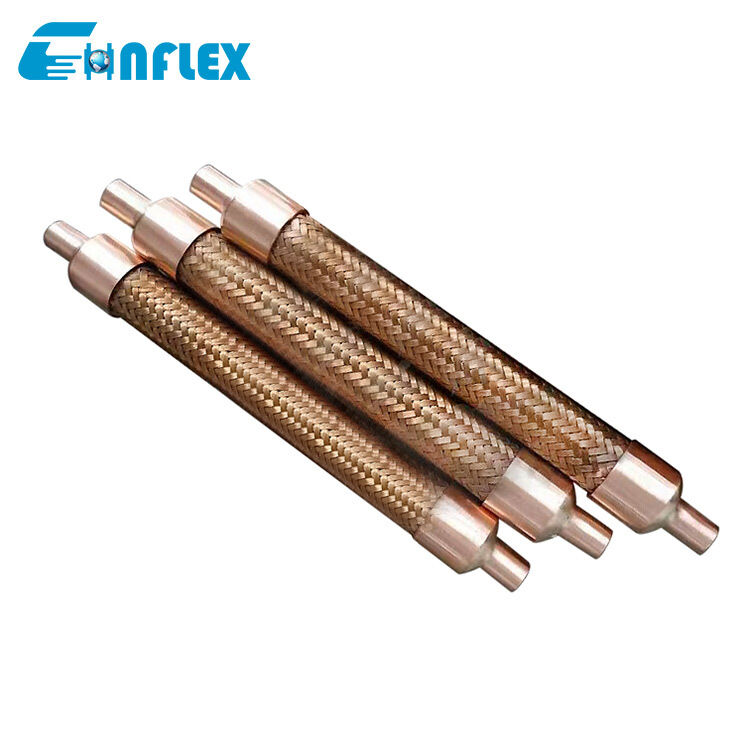

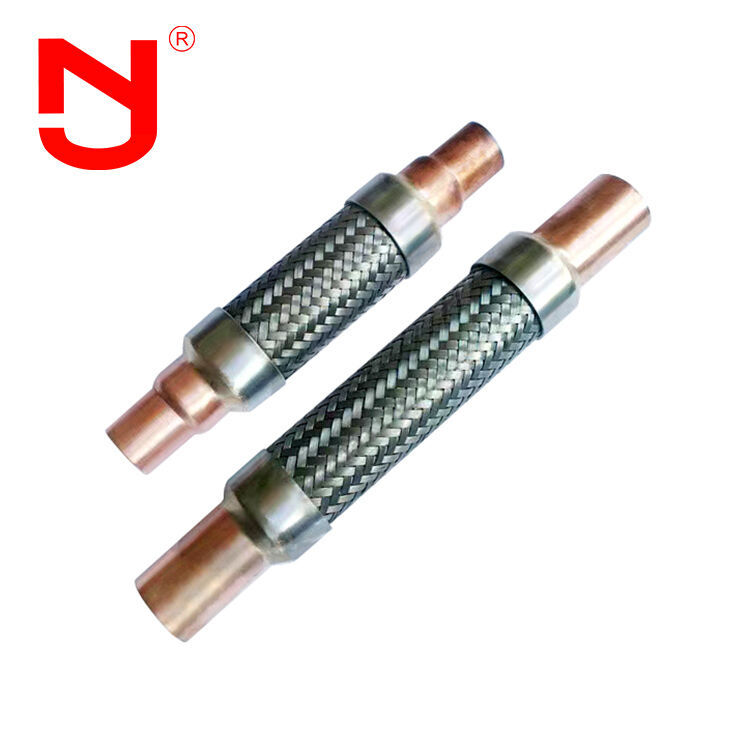

Flexible Connection Hose Stainless Steel Wire Braided Corrugated
Flexible Connection Hose is a flexible piping component designed to absorb vibration, compensate for misalignment, and accommodate thermal expansion or contraction in pipeline systems. It is commonly used to connect pumps, valves, and equipment, helping to reduce noise and stress on rigid piping while ensuring safe and reliable fluid or gas transmission.
Performance Characteristics
- Strong corrosion resistance
- Excellent flexibility and stretchability
- Superior anti-vibration capability
- High pressure bearing capacity
- Multiple connection methods including threaded, flange, and custom welded options
Technical Parameters
| Diameter (mm) |
Pressure Grade (MPa) |
Available Area of Bellows (cm²) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 225 | 160-280 |
| 40 | 1.0/1.6/2.5 | 23 | 244 | 164-289 |
| 50 | 1.0/1.6/2.5 | 37 | 259 | 172-306 |
| 65 | 1.0/1.6/2.5 | 55 | 270 | 215-322 |
| 80 | 1.0/1.6/2.5 | 81 | 284 | 240-366 |
| 100 | 1.0/1.6/2.5 | 121 | 304 | 235-345 |
| 125 | 1.0/1.6/2.5 | 180 | 334 | 282-342 |
| 150 | 1.0/1.6/2.5 | 257 | 364 | 282-367 |
| 200 | 1.0/1.6/2.5 | 479 | 442 | 340-426 |
| 250 | 1.0/1.6/2.5 | 769 | 507 | 393-493 |
| 300 | 1.0/1.6/2.5 | 1105 | 562 | 464-565 |
| 350 | 1.0/1.6/2.5 | 1307 | 622 | 509-609 |
| 400 | 1.0/1.6/2.5 | 1611 | 562 | 522-628 |
| 450 | 1.0/1.6/2.5 | 1972 | 700 | 403-523 |
| 500 | 1.0/1.6/2.5 | 2445 | 760 | 431-554 |
| 600 | 1.0/1.6/2.5 | 3534 | 835 | 478-588 |
| 700 | 1.0/1.6/2.5 | 4717 | 1110 | 490-590 |
| 800 | 1.0/1.6/2.5 | 5822 | 1265 | 502-602 |
| 900 | 1.0/1.6/2.5 | 7620 | 1186 | 698 |
| 1000 | 1.0/1.6/2.5 | 9043 | 1286 | 692 |
Product Details
Production Process
JINGNING's high-quality Flexible Connection Hose manufacturing process ensures superior performance and durability.
Customization Options
- Bellow Body Materials: Stainless Steel 304, 316L
- Connection Materials: Q235 carbon steel, 304, 316L stainless steel
With over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, and pipeline fittings, Jingning meets international standards including GB, ISO, DIN, ANSI, BS, JIS and custom requirements.
Product Advantages
- Competitive factory direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Strict quality control exceeding industry standards
- Custom specifications and OEM services
- Free samples available
- Large inventory for quick delivery
Applications
Flexible Connection Hoses are widely used in food, medical, pharmaceutical, industrial, construction, environmental protection, and energy sectors due to their excellent corrosion resistance and mechanical properties.
Our Services
- 24-hour online support
- Free samples provided
- Customization services
- Technical drawings available
- Multiple payment options
- Factory inspection services
- Extended warranty period
- Transportation-optimized packaging
Frequently Asked Questions
What materials are used for Flexible Connection Hose?
Available materials include SS304, SS316, carbon steel, and others depending on working conditions.
What packaging is provided?
Products are packaged in carton boxes and reinforced plywood cases for safe transportation.
What certificates can you provide?
We provide CE and ISO certificates for quality assurance.
Can you provide technical drawings?
Yes, we provide detailed technical drawings upon request. Please contact us for specific requirements.
