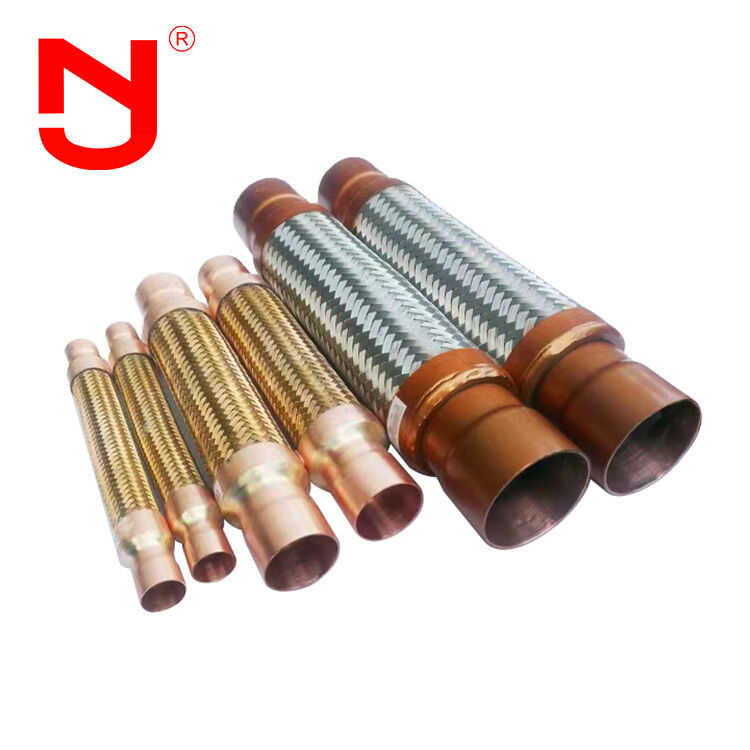

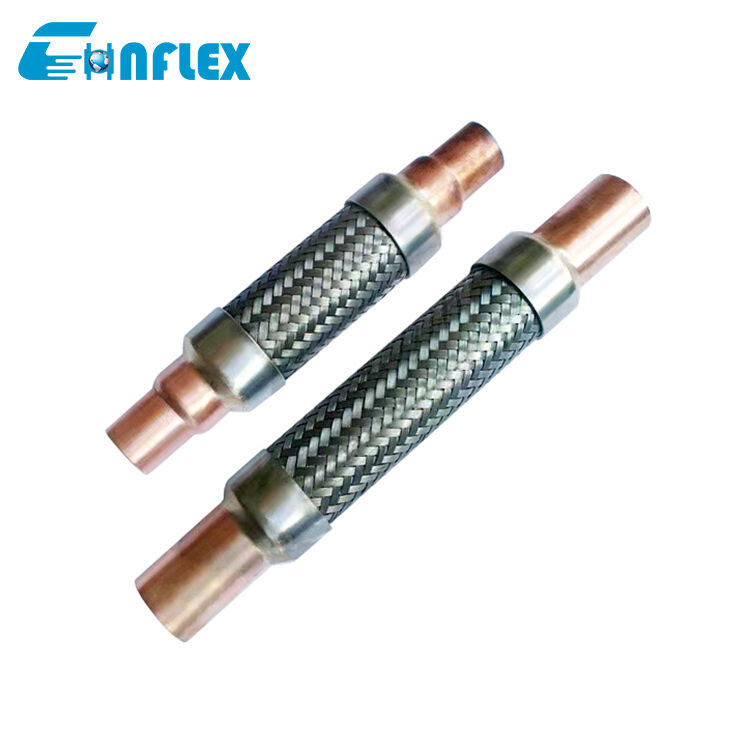

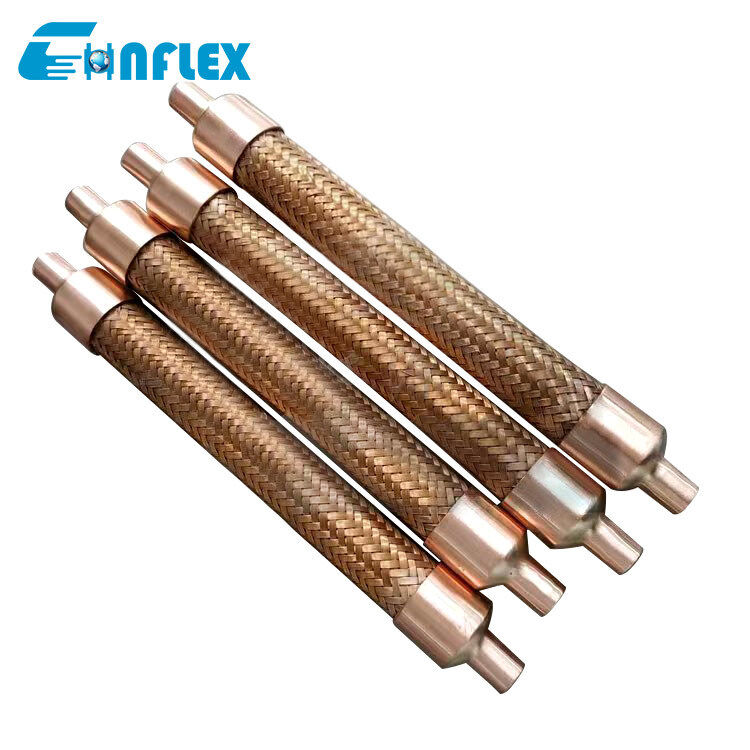

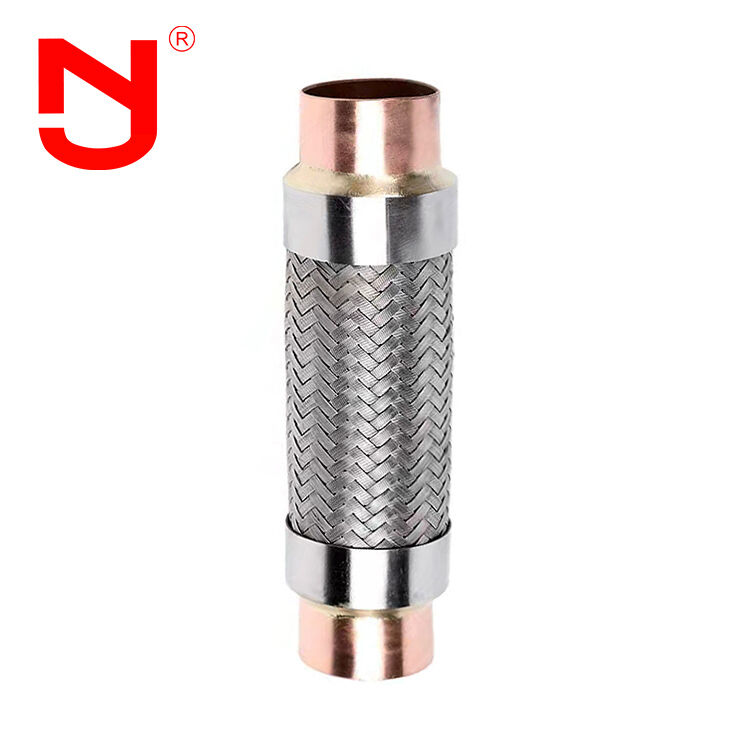

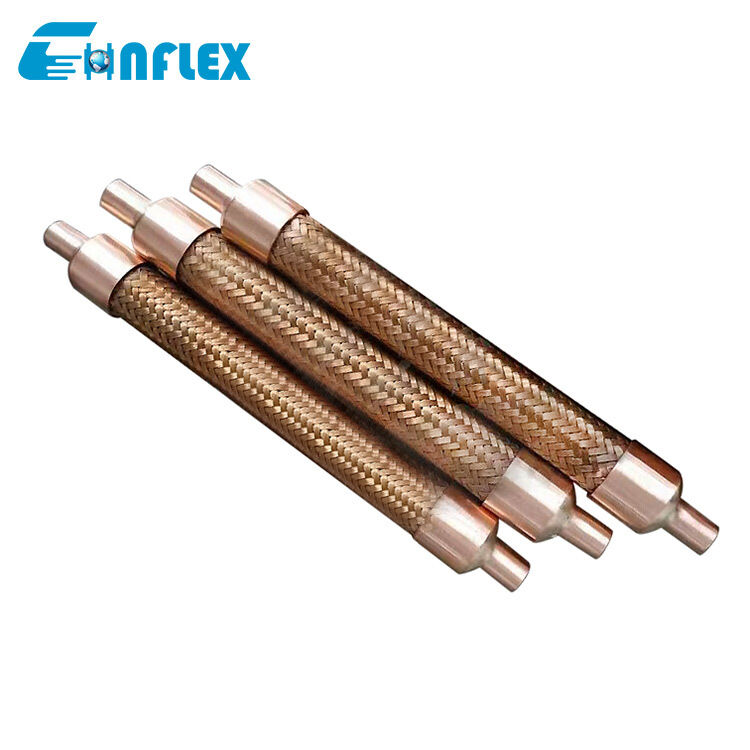

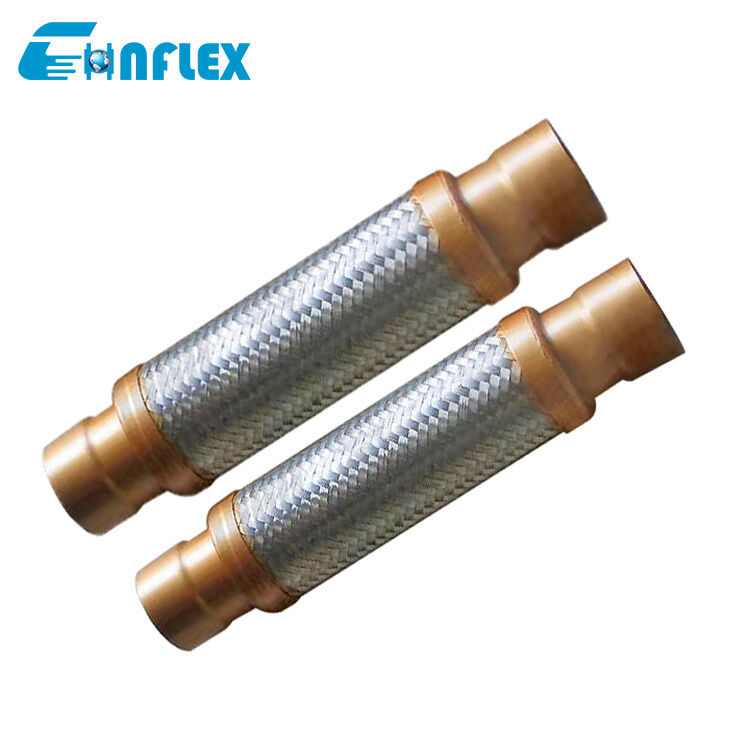

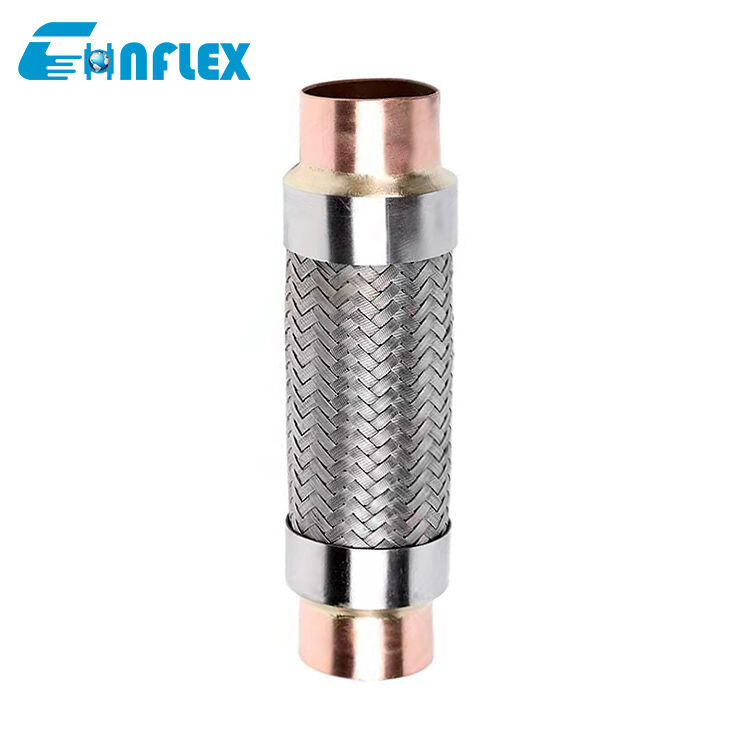

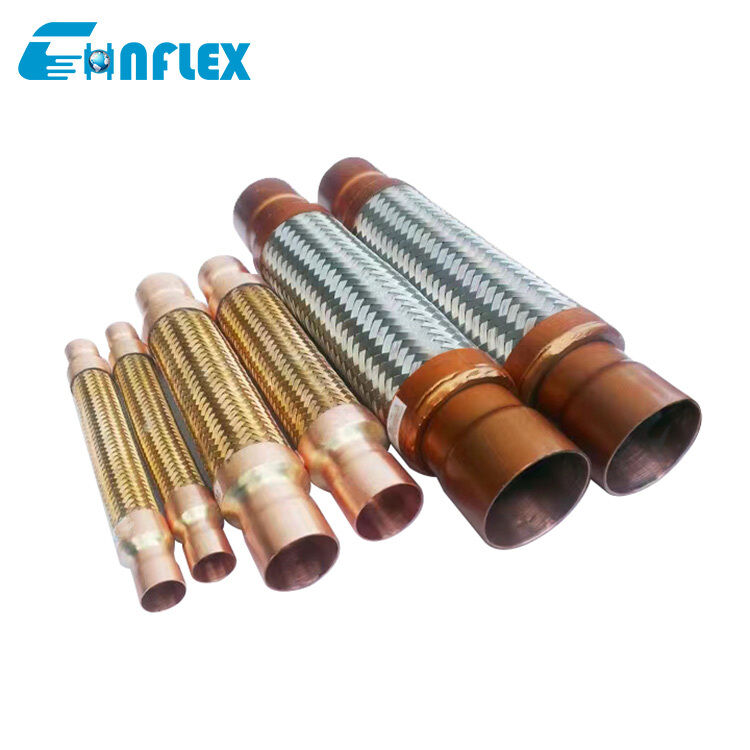

Flexible Hose Braided Stainless Steel Wire
A flexible piping assembly featuring a corrugated inner tube reinforced with a stainless steel braided layer, which enhances pressure resistance and mechanical strength. Designed to absorb vibration, compensate for movement and misalignment, and commonly used for conveying liquids and gases in industrial, HVAC, plumbing, and petrochemical systems.
Performance Characteristics
- Excellent corrosion resistance
- High flexibility and stretchability
- Superior anti-vibration capability
- Strong pressure bearing capacity
- Multiple connection options including threaded, flange, and custom welded configurations
Technical Specifications
| Diameter (mm) |
Pressure Grade (MPa) |
Available Area of Bellows (cm²) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 264/280 | 160/250 |
| 40 | 1.0/1.6/2.5 | 23 | 269/289 | 164/259 |
| 50 | 1.0/1.6/2.5 | 37 | 282/306 | 172/276 |
| 65 | 1.0/1.6/2.5 | 55 | 300/322 | 215/294 |
| 80 | 1.0/1.6/2.5 | 81 | 344/366 | 240/338 |
| 100 | 1.0/1.6/2.5 | 121 | 323/345 | 235/317 |
| 125 | 1.0/1.6/2.5 | 180 | 316/342 | 282/314 |
| 150 | 1.0/1.6/2.5 | 257 | 338/367 | 282/339 |
| 200 | 1.0/1.6/2.5 | 479 | 402/426 | 340/402 |
| 250 | 1.0/1.6/2.5 | 769 | 493/399 | 393/459 |
| 300 | 1.0/1.6/2.5 | 1105 | 564/565 | 464/525 |
| 350 | 1.0/1.6/2.5 | 1307 | 609/604 | 509/564 |
| 400 | 1.0/1.6/2.5 | 1611 | 622/628 | 522/566 |
| 450 | 1.0/1.6/2.5 | 1972 | 503/523 | 403/498 |
| 500 | 1.0/1.6/2.5 | 2445 | 531/554 | 431/523 |
| 600 | 1.0/1.6/2.5 | 3534 | 578/588 | 478/548 |
| 700 | 1.0/1.6/2.5 | 4717 | 590 | 490 |
| 800 | 1.0/1.6/2.5 | 5822 | 602 | 502 |
| 900 | 1.0/1.6/2.5 | 7620 | 698 | / |
| 1000 | 1.0/1.6/2.5 | 9043 | 692 | / |
Product Details
Manufacturing Process
JINGNING specializes in producing high-quality flexible hoses with over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, and other industrial pipe fittings.
Material Specifications
Grooved Metal Hose Body available in Stainless Steel 304 and 316L. All products meet international standards including GB, ISO, DIN, ANSI, BS, JIS and custom requirements.
Key Advantages
- Competitive factory direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Strict quality control exceeding industry standards
- Custom specifications and OEM services
- Free samples available
- Large inventory for immediate delivery
Applications
Widely used in food, medical, pharmaceutical industries due to excellent corrosion resistance and mechanical properties. Applications extend to industrial, construction, environmental protection, and energy sectors.
Our Services
- 24-hour online support
- Free samples provided
- Customization services
- Technical drawings available
- Multiple payment options
- Factory inspection services
- Extended warranty period
- Secure transportation packaging
Frequently Asked Questions
What materials are used for Flexible Hose Braided Stainless Steel?
Available in SS304, SS316, carbon steel, and other materials depending on working conditions.
What packaging is provided?
Products are packaged in carton boxes and reinforced plywood cases for secure shipping.
What certificates can you provide?
We provide CE and ISO certifications.
Can you provide technical drawings?
Yes, we provide detailed technical drawings upon request.
