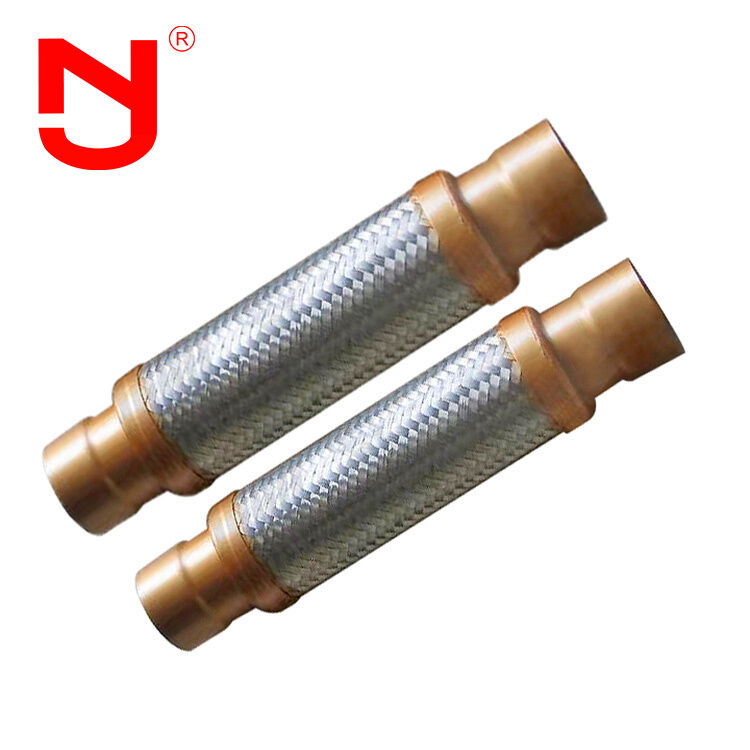

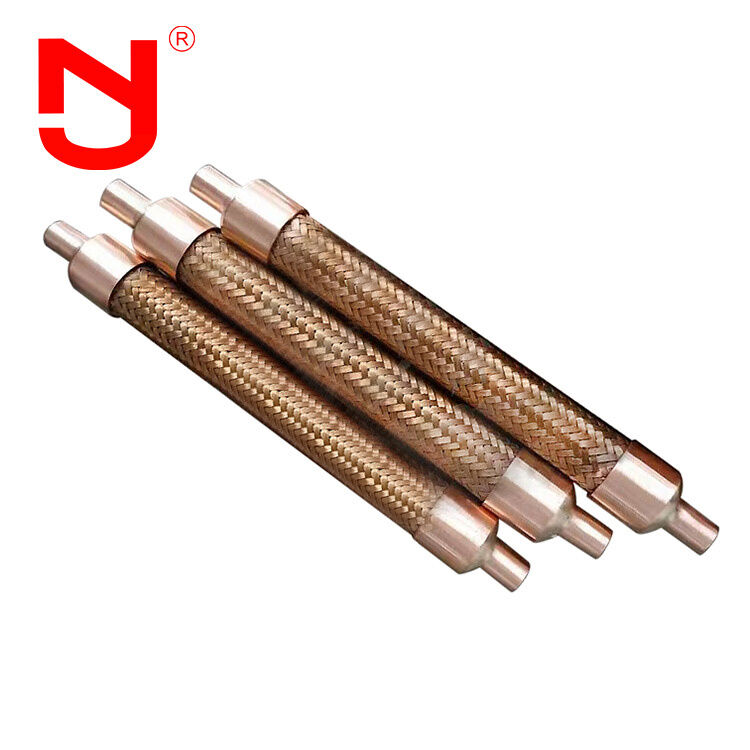

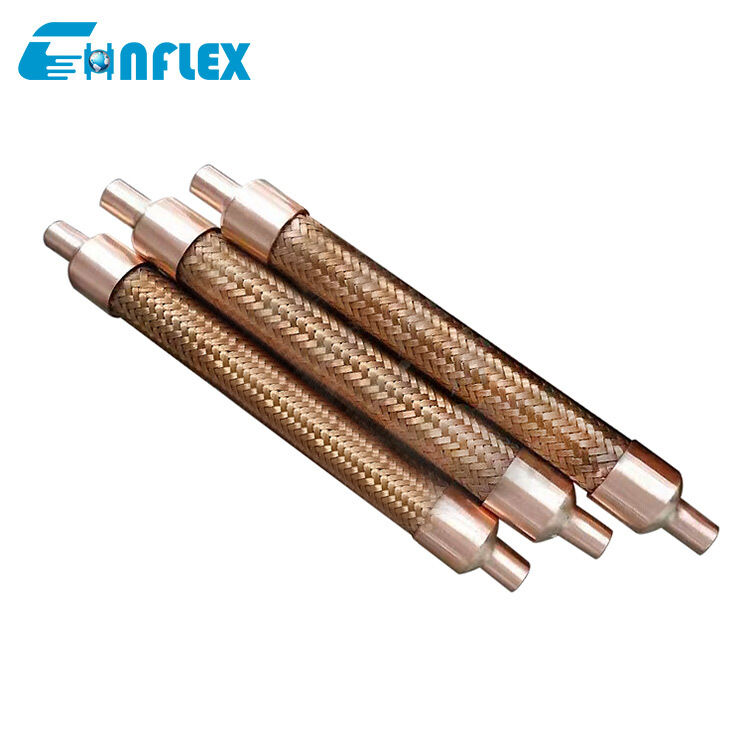

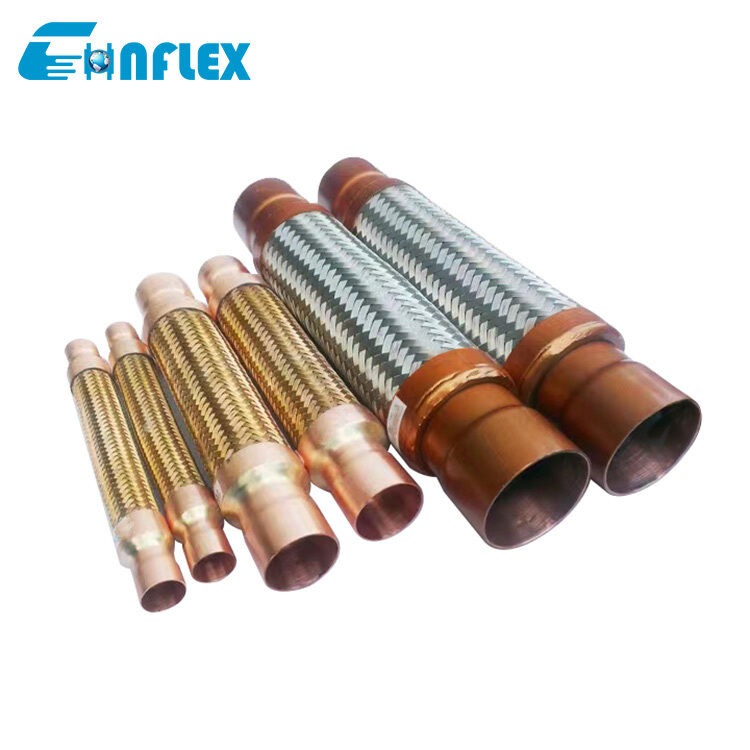

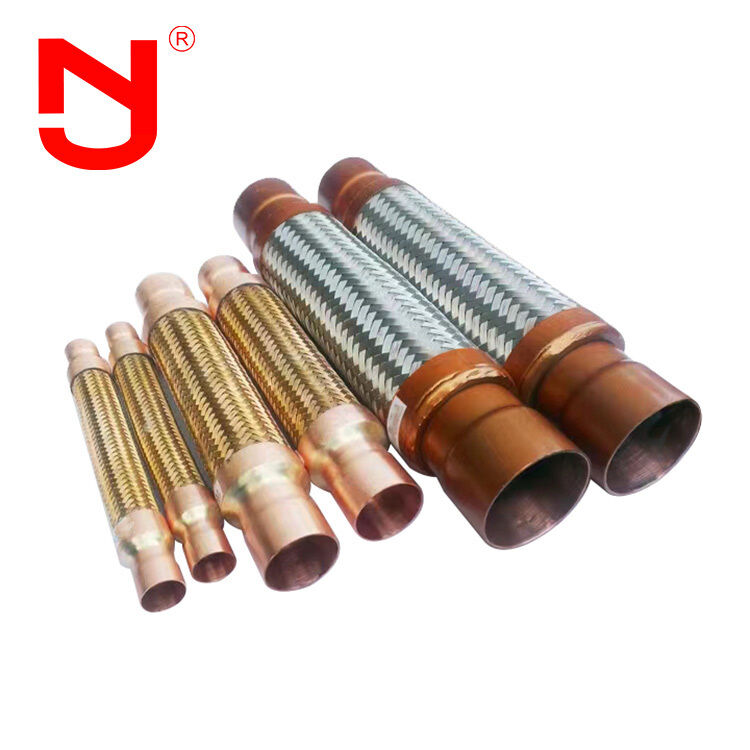

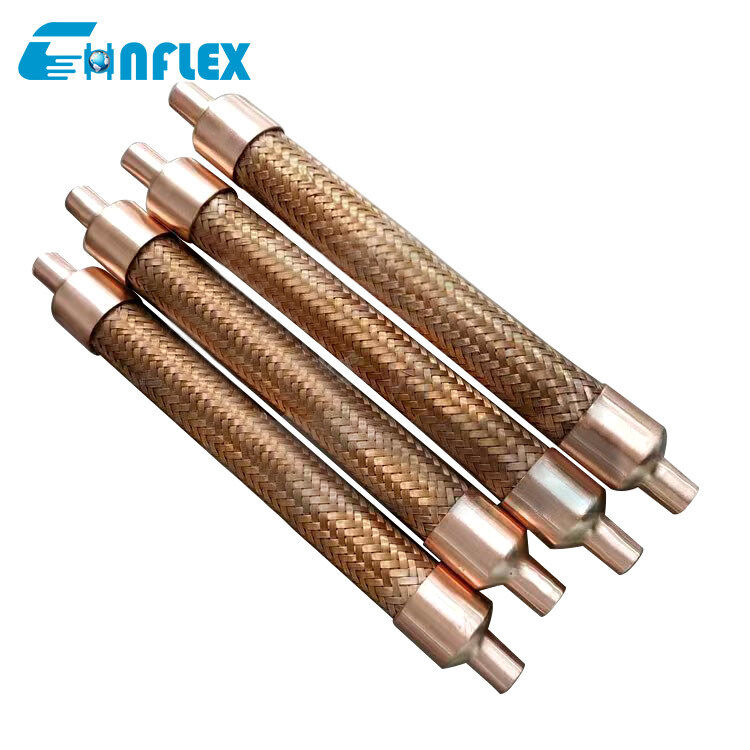

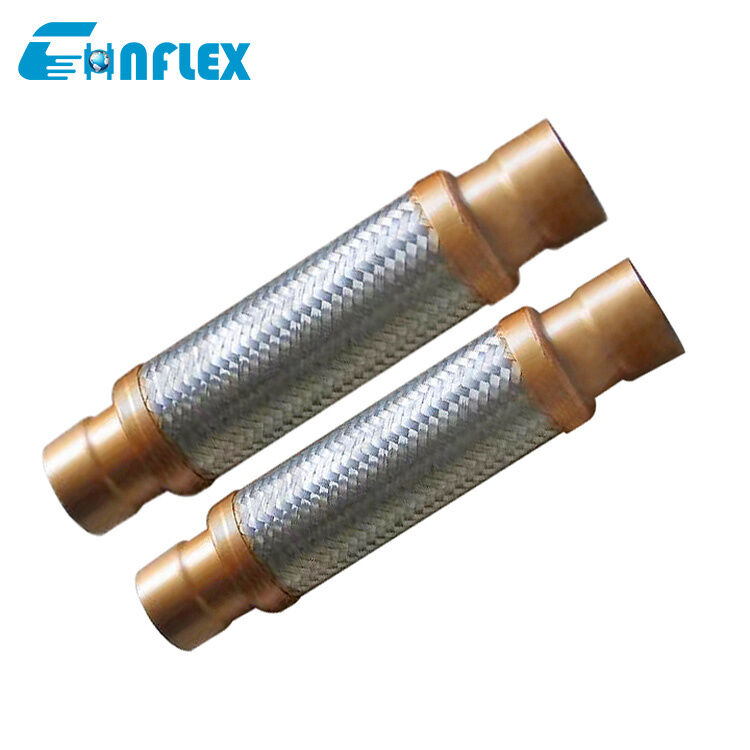

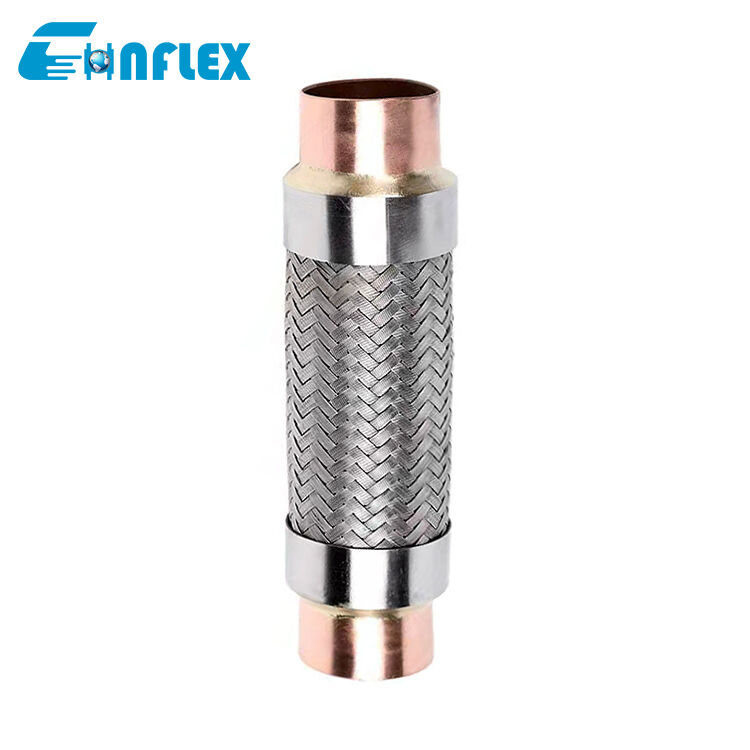

Welded Flexible SS Hose Grooved Metal Braided Pipe Connector with Stainless Steel 304/316 Corrosion Resistant High Pressure Grade

Stainless Steel 304/316 Welded Flexible SS Hose

Corrosion Resistant Metal Braided Pipe Connector

High Pressure Grade Grooved Metal Braided Hose

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE、ZTC

Model Number:

JDZ

Request A Quote

Product Details

Product Name:

Welded Flexible SS Hose Grooved Metal Braided Pipe Connector

Key Word:

Welded Flexible SS Hose

Main Market:

America,Europe, Middle East, Southeast Asia

MOQ:

1PC

OEM,ODM:

Available

Hose Material:

Stainless Steel 304, 316

Bellows Material:

Stainless Steel 304, 316

Warranty:

12 Months

Payment & Shipping Terms

Minimum Order Quantity

Price

US$8.9~266.8/PC

Packaging Details

carton or wooden

Delivery Time

5--15 working days

Payment Terms

Western Union,T/T,L/C,D/A,D/P,MoneyGram

Supply Ability

10000 sets per week

Welded Flexible SS Hose Grooved Metal Braided Pipe Connector with Stainless Steel 304/316 Corrosion Resistant High Pressure Grade

Get Best Price

Video

Flexible Metal Hose with SS304/SS316 Material and Corrugated Grooved Connection - 18 Months Warranty

Get Best Price

Video

Corrosion Resistant Stainless Steel Braided Flex Hose with High Pressure Grade and Vibration Absorption for Industrial Applications

Get Best Price

Video

Stainless Steel Wire Braided Flexible Steel Pipe Connector DN8~DN400 Corrosion Resistant Metal Braided Hose

Get Best Price

86-150-93112546

joints@chnflex.com

Contact Now

Product Description

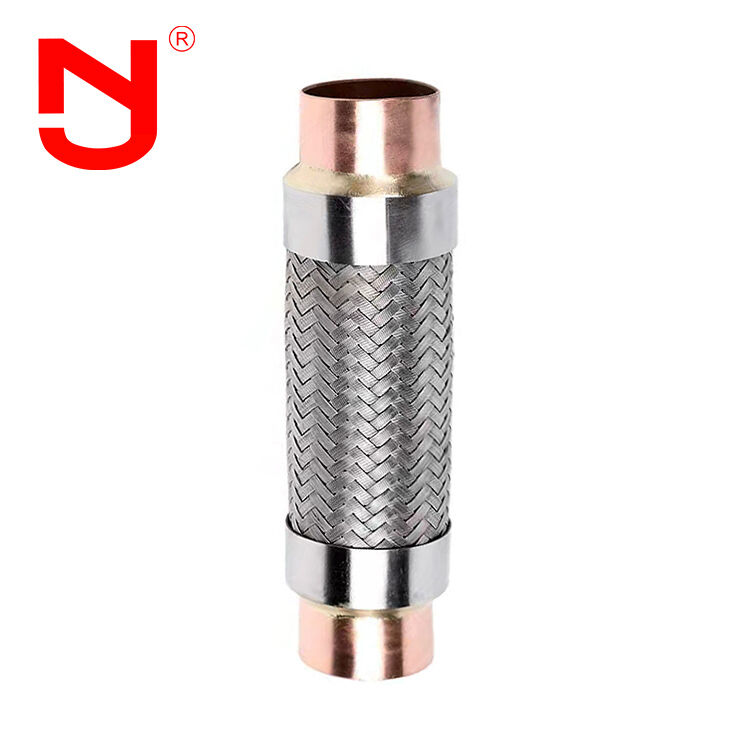

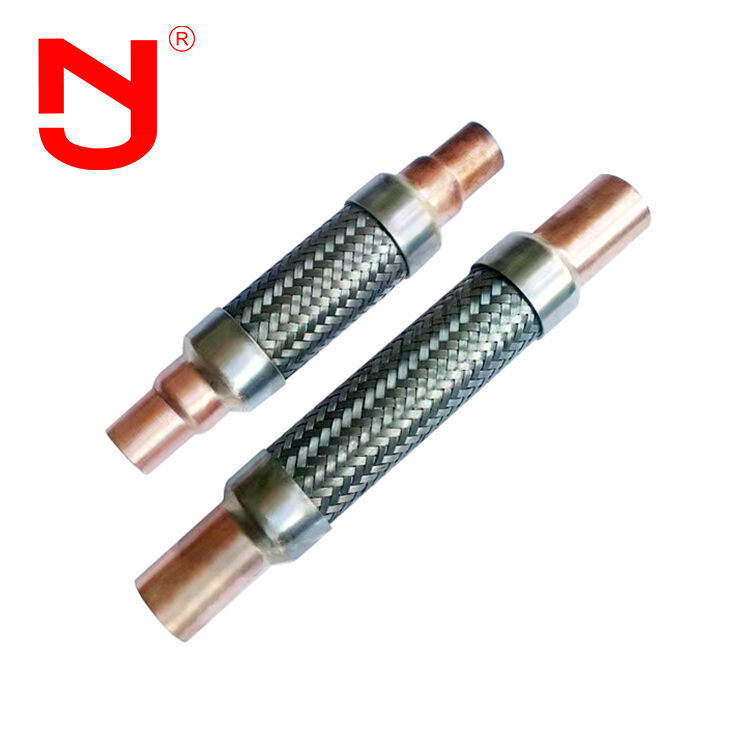

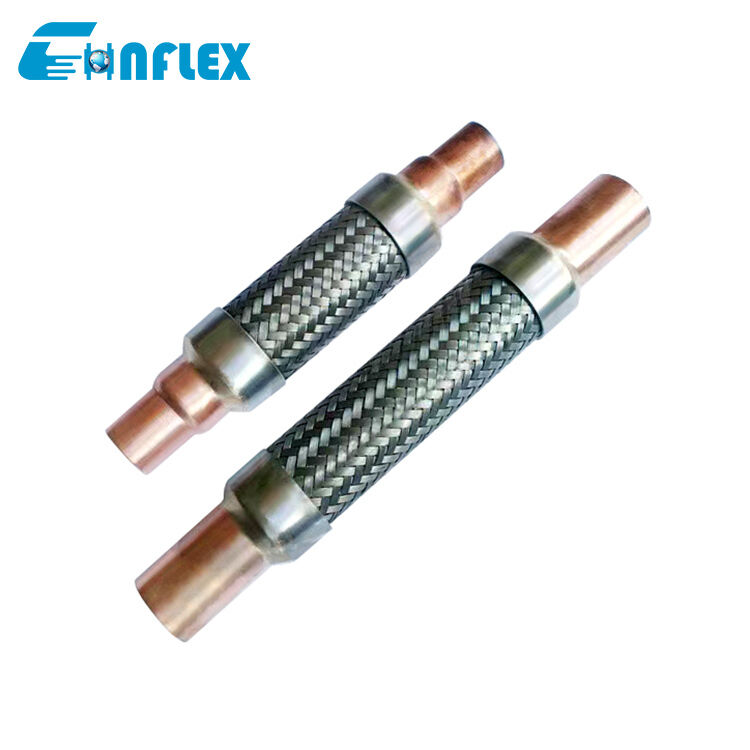

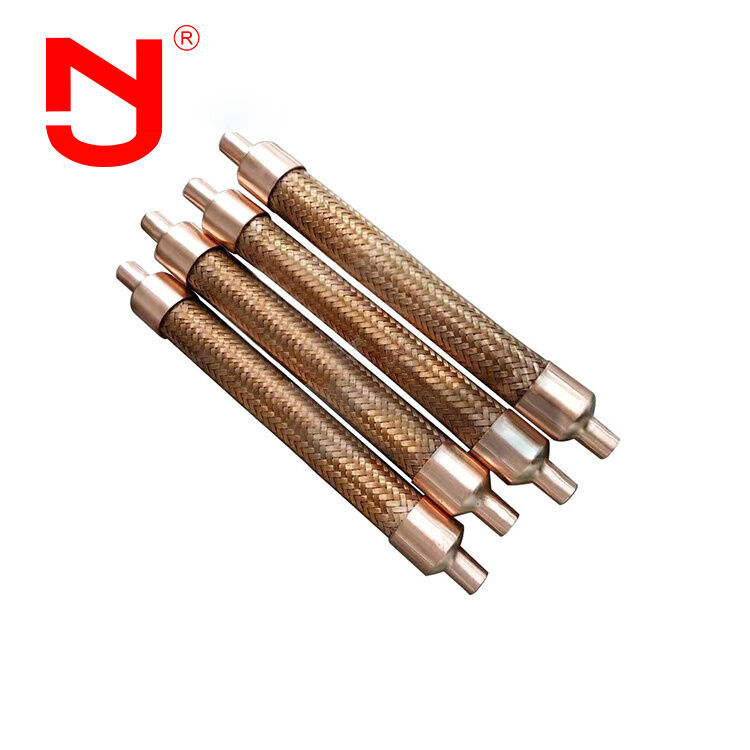

Welded Flexible SS Hose Grooved Metal Braided Pipe Connector

Welded Flexible SS Hose is a stainless steel flexible hose with welded end connections, designed for secure and leak-free installation in piping systems. It combines a corrugated stainless steel hose with welded fittings to withstand high pressure and temperature while absorbing vibration, thermal expansion, and misalignment. Widely used in industrial, petrochemical, and HVAC applications.

Performance Characteristics

Excellent corrosion resistance
Superior flexibility and stretchability
Strong anti-vibration capability
High pressure bearing capacity
Multiple connection options including threaded, flange, and custom configurations

Technical Specifications

Diameter (mm)	Pressure Grade (MPa)	Available Area of Bellows (cm²)	Max External Diameter (mm)	Length (mm)
32	1.0/1.6/2.5	16	225	160-280
40	1.0/1.6/2.5	23	244	164-289
50	1.0/1.6/2.5	37	259	172-306
65	1.0/1.6/2.5	55	270	215-322
80	1.0/1.6/2.5	81	284	240-366
100	1.0/1.6/2.5	121	304	235-345
125	1.0/1.6/2.5	180	334	282-342
150	1.0/1.6/2.5	257	364	282-367
200	1.0/1.6/2.5	479	442	340-426
250	1.0/1.6/2.5	769	507	393-493
300	1.0/1.6/2.5	1105	562	464-565
350	1.0/1.6/2.5	1307	622	509-609
400	1.0/1.6/2.5	1611	562	522-628
450	1.0/1.6/2.5	1972	700	403-523
500	1.0/1.6/2.5	2445	760	431-554
600	1.0/1.6/2.5	3534	835	478-588
700	1.0/1.6/2.5	4717	1110	490-590
800	1.0/1.6/2.5	5822	1265	502-602
900	1.0/1.6/2.5	7620	1186	698
1000	1.0/1.6/2.5	9043	1286	692

Product Details

Manufacturing Process

JINGNING's high-quality Welded Flexible SS Hose manufacturing process ensures superior performance and durability.

Material Options

Grooved Metal Braided Pipe Connector Body: Stainless Steel 304, 316L.

With over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, disassembly joints, and pipeline fittings, Jingning meets international standards including GB, ISO, DIN, ANSI, BS, JIS and custom requirements.

Key Advantages

Competitive factory direct pricing
17 years manufacturing experience with 5 years export expertise
Strict quality control exceeding industry standards
Custom mold base and OEM specifications available
Free samples provided upon request
Large inventory for immediate delivery

Applications

Welded Metal Braided Pipe Connectors are widely used in food, medical, and pharmaceutical industries due to excellent corrosion resistance and mechanical properties. Applications also include industrial, construction, environmental protection, and energy sectors.

Our Services

24-hour online support
Free samples available
Customization services
Technical drawings provided
Multiple payment options
Factory inspection services (material, specifications, quantity, pressure, packaging)
Extended warranty period
Secure transportation packaging

Frequently Asked Questions

Q1: What's the material of Welded Flexible SS Hose?

A1: Materials include SS304, SS316, carbon steel, and others depending on working conditions.

Q2: What's the package?

A2: Packaging includes carton boxes and reinforced plywood cases for secure shipping.

Q3: What certificates can you provide?

A3: We provide CE and ISO certifications.

Q4: Can you provide drawings?

A4: Yes, we provide technical drawings. Please contact us to receive them.
