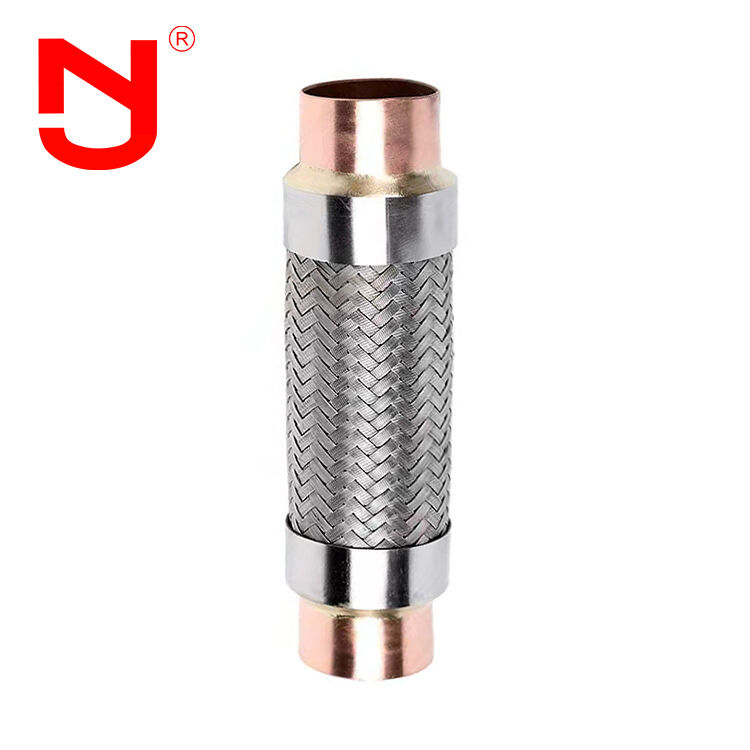

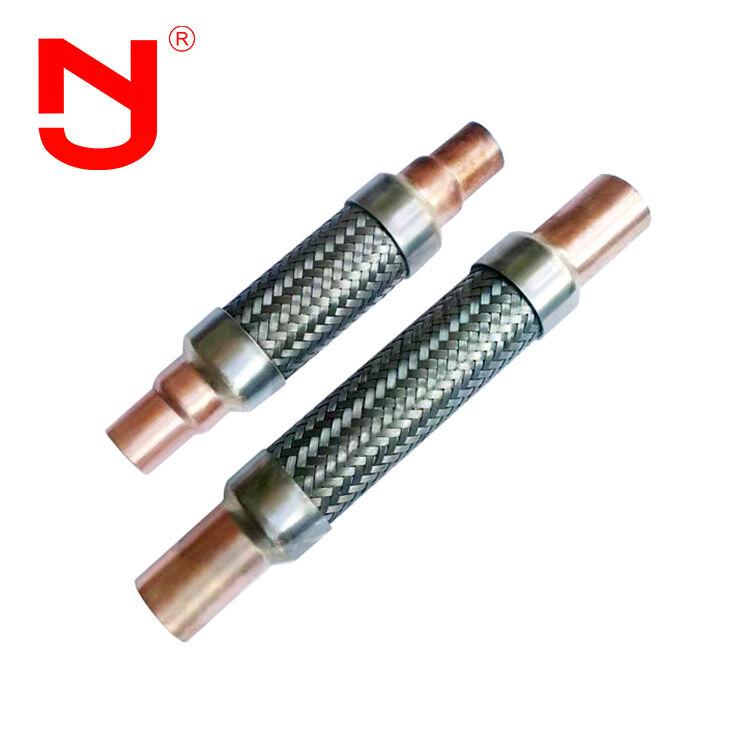

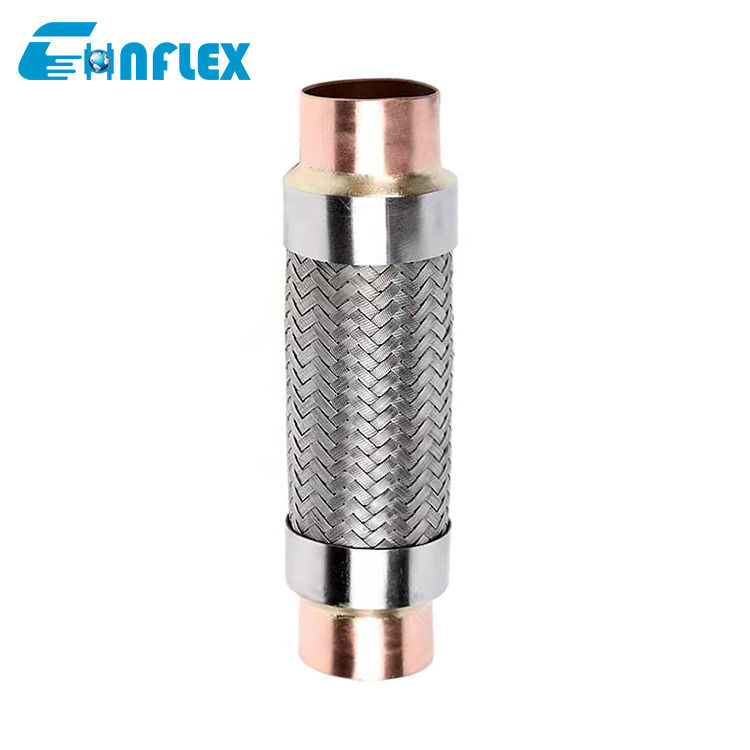

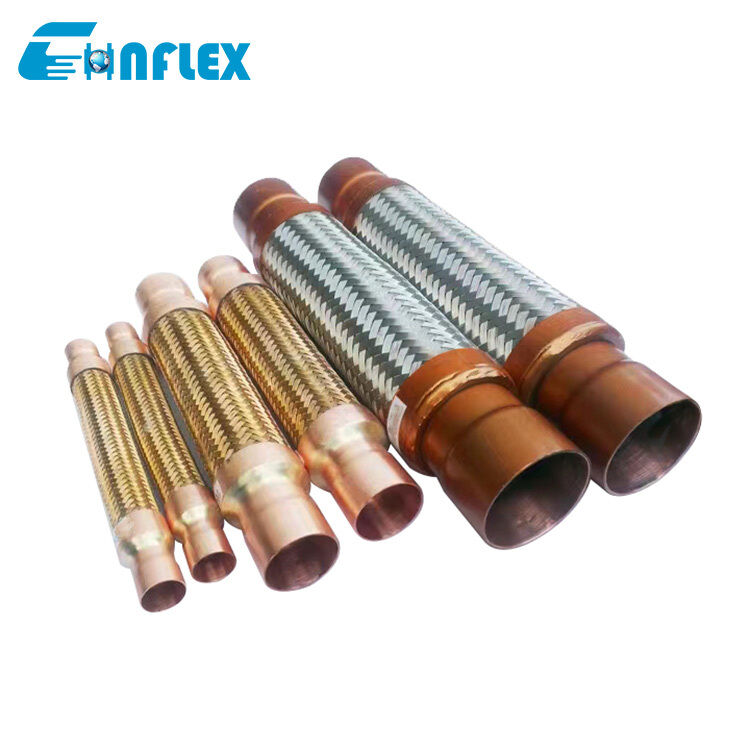

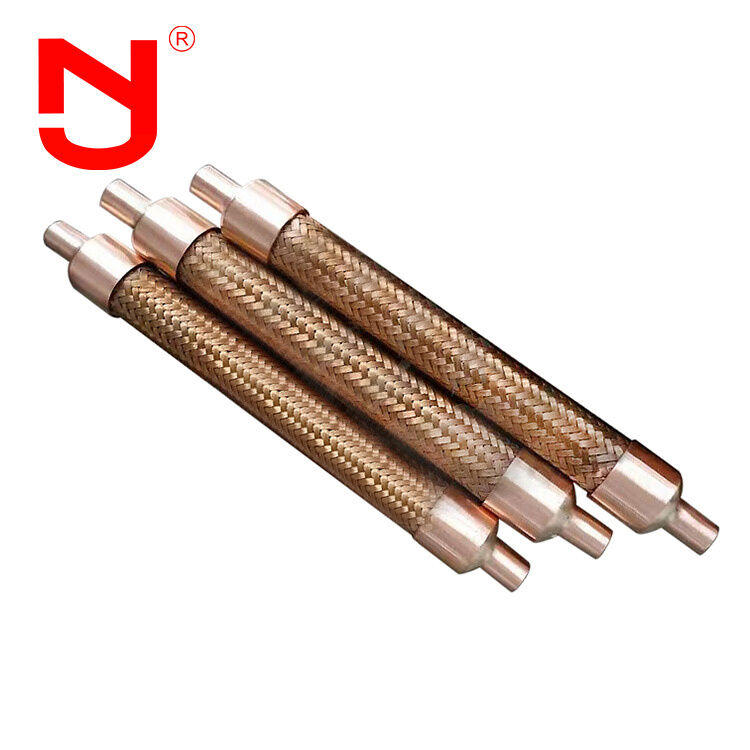

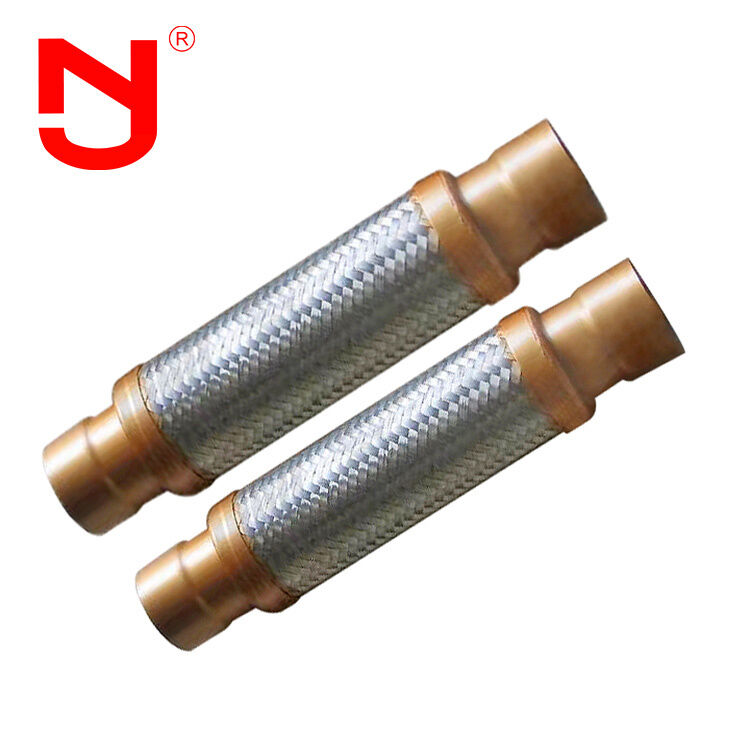

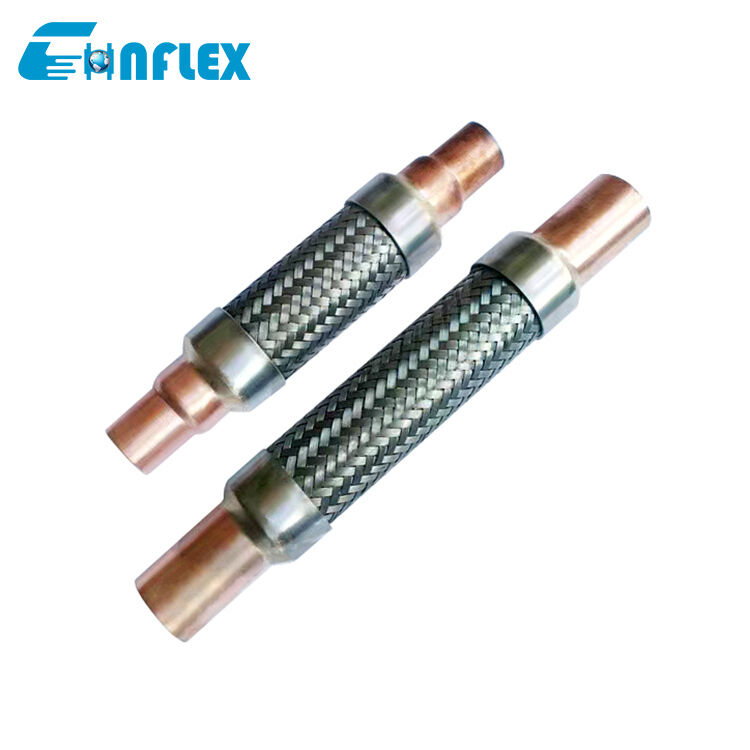

Welded Flexible Stainless Hose
Welded Flexible Stainless Hose is a stainless steel flexible hose assembly with welded end connections, providing a strong and leak-tight joint to the piping system. It is designed to handle high pressure and temperature while absorbing vibration, compensating for thermal expansion, and correcting misalignment, making it suitable for industrial, petrochemical, power, and HVAC applications.
Performance Characteristics
- Excellent corrosion resistance
- Superior flexibility and stretchability
- Strong anti-vibration capability
- High pressure bearing capacity
- Multiple connection options including threaded, flange, and custom configurations
Technical Specifications
| Diameter (mm) |
Pressure Grade (Mpa) |
Available Area of Bellows (c㎡) |
Max External Diameter (mm) |
Length (mm) |
| 32 | 1.0/1.6/2.5 | 16 | 264/280 | 160/250 |
| 40 | 1.0/1.6/2.5 | 23 | 269/289 | 164/259 |
| 50 | 1.0/1.6/2.5 | 37 | 282/306 | 172/276 |
| 65 | 1.0/1.6/2.5 | 55 | 300/322 | 215/294 |
| 80 | 1.0/1.6/2.5 | 81 | 344/366 | 240/338 |
| 100 | 1.0/1.6/2.5 | 121 | 323/345 | 235/317 |
| 125 | 1.0/1.6/2.5 | 180 | 316/342 | 282/314 |
| 150 | 1.0/1.6/2.5 | 257 | 338/367 | 282/339 |
| 200 | 1.0/1.6/2.5 | 479 | 402/426 | 340/402 |
| 250 | 1.0/1.6/2.5 | 769 | 493/399 | 393/459 |
| 300 | 1.0/1.6/2.5 | 1105 | 564/565 | 464/525 |
| 350 | 1.0/1.6/2.5 | 1307 | 609/604 | 509/564 |
| 400 | 1.0/1.6/2.5 | 1611 | 622/628 | 522/566 |
| 450 | 1.0/1.6/2.5 | 1972 | 503/523 | 403/498 |
| 500 | 1.0/1.6/2.5 | 2445 | 531/554 | 431/523 |
| 600 | 1.0/1.6/2.5 | 3534 | 578/588 | 478/548 |
| 700 | 1.0/1.6/2.5 | 4717 | 590 | 490 |
| 800 | 1.0/1.6/2.5 | 5822 | 602 | 502 |
| 900 | 1.0/1.6/2.5 | 7620 | 698 | / |
| 1000 | 1.0/1.6/2.5 | 9043 | 692 | / |
Product Details
Manufacturing Process
JINGNING produces high-quality welded flexible stainless steel hoses using advanced manufacturing techniques and strict quality control processes.
Custom Configuration Options
- Bellow Body Materials: Stainless Steel 304, 316L
- Flange Materials: Q235 carbon steel, 304, 316L stainless steel
With over 17 years of design experience in manufacturing flexible expansion joints, rubber expansion joints, metal bellows joints, and other industrial pipe fittings, Jingning meets international standards including GB, ISO, DIN, ANSI, BS, JIS and custom requirements.
Product Advantages
- Competitive factory direct pricing
- 17 years manufacturing experience with 5 years export expertise
- Strict quality inspection exceeding industry standards
- Custom specifications and OEM services
- Free samples available
- Large inventory for quick delivery
Applications
Welded Flexible Stainless Hoses are widely used in food, medical, pharmaceutical, industrial, construction, environmental protection, and energy sectors due to their excellent corrosion resistance and mechanical properties.
Our Services
- 24-hour online support
- Free samples provided
- Customization services
- Technical drawings available
- Multiple payment options
- Factory inspection services
- Long warranty period
- Secure packaging for transportation
Frequently Asked Questions
What materials are available for Welded Flexible Stainless Hose?
Available materials include SS304, SS316, carbon steel, and others depending on working conditions.
What packaging is used?
Products are packaged in carton boxes and strong plywood cases for secure shipping.
What certificates can you provide?
We provide CE and ISO certifications.
Can you provide technical drawings?
Yes, we provide detailed technical drawings upon request.
