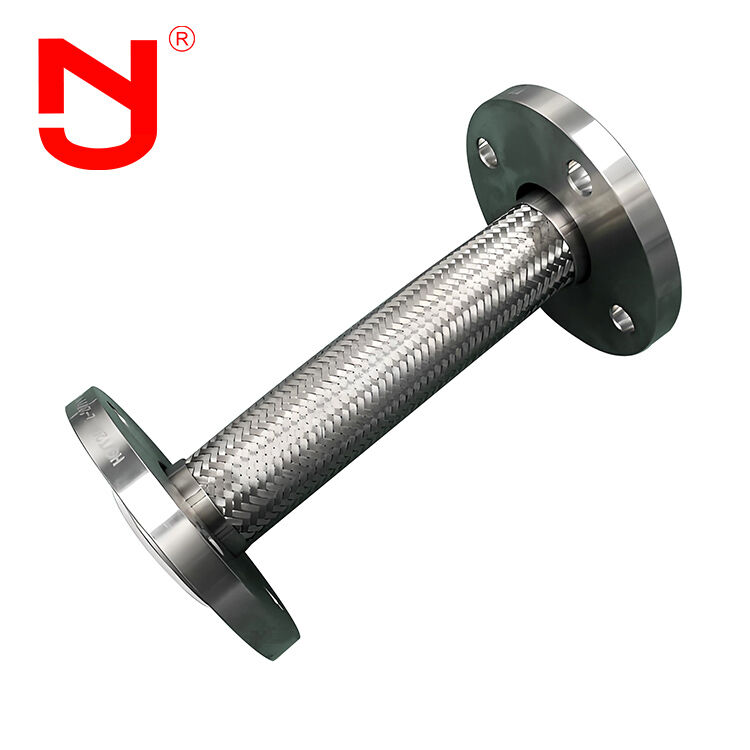

PTFE Lining Stainless Steel Wire Braided Corrugated Flexible Connection Hose

PTFE Lining Stainless Steel Wire Braided Corrugated Flexible Connection Hose

Flexible Connection Hose is a high-performance flexible connection solution featuring a corrugated stainless steel hose with an inner PTFE lining and an external stainless steel wire braid. The PTFE liner offers excellent resistance to corrosion, chemicals, and high temperatures while ensuring a smooth, non-stick flow path. The corrugated metal structure provides superior flexibility and fatigue resistance, and the stainless steel braid enhances pressure bearing capacity and mechanical protection. It is widely used as a flexible connector in pipelines to absorb vibration, compensate for thermal expansion, and ensure safe, reliable fluid transfer in chemical, petrochemical, pharmaceutical, and food processing systems.

Performance of Gas Flex

The main elastic element of flexible expansion joint is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint the pipeline in axial, transverse and angular directions. Flexible expansion joint can play the following roles:

1. Flexible Connection Hose absorbs the axial, transverse and angular thermal deformation of the pipeline.

2. Flexible Connection Hose can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.

3. Flexible Connection Hose can absorb the pipeline deformation caused by earthquake and land subsidence.

Technique Parameter of Flexible Connection Hose

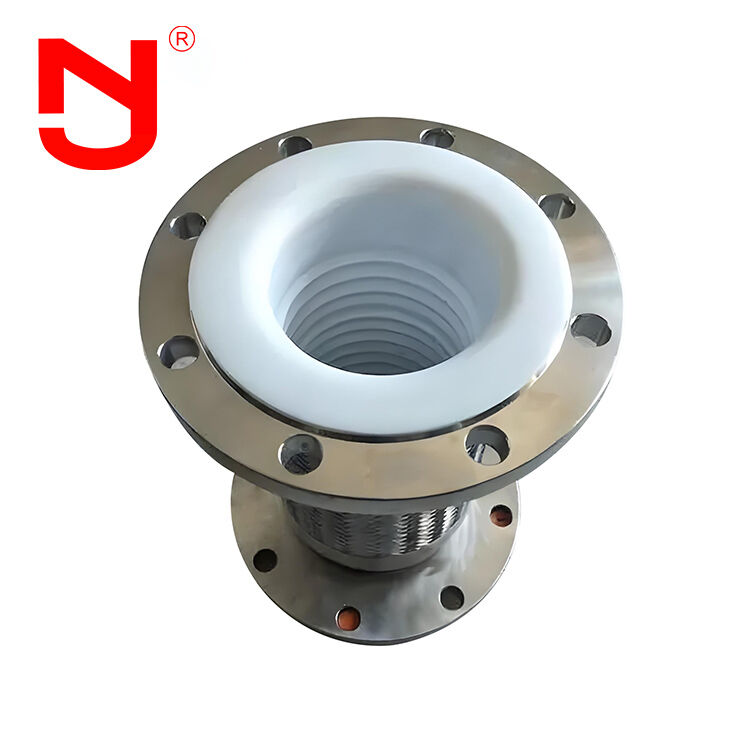

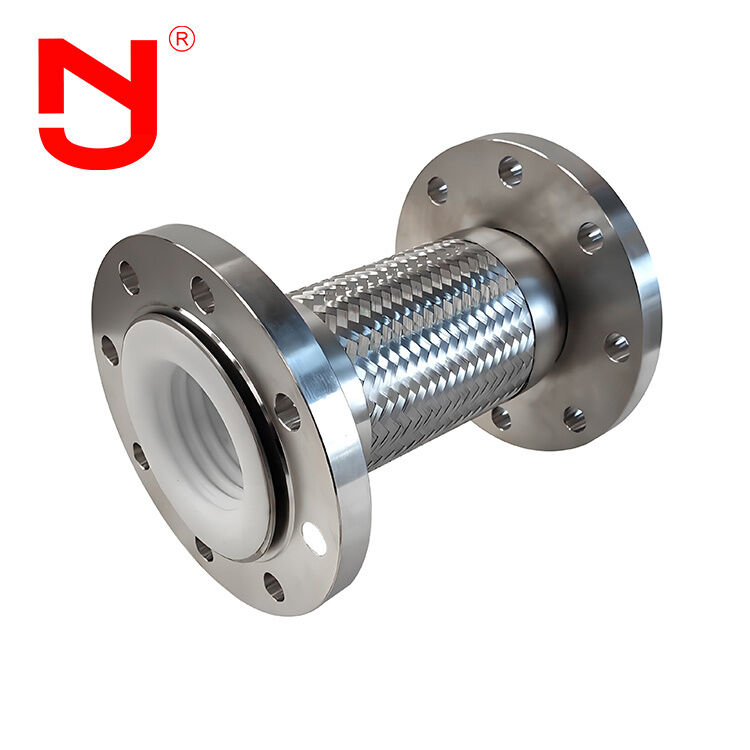

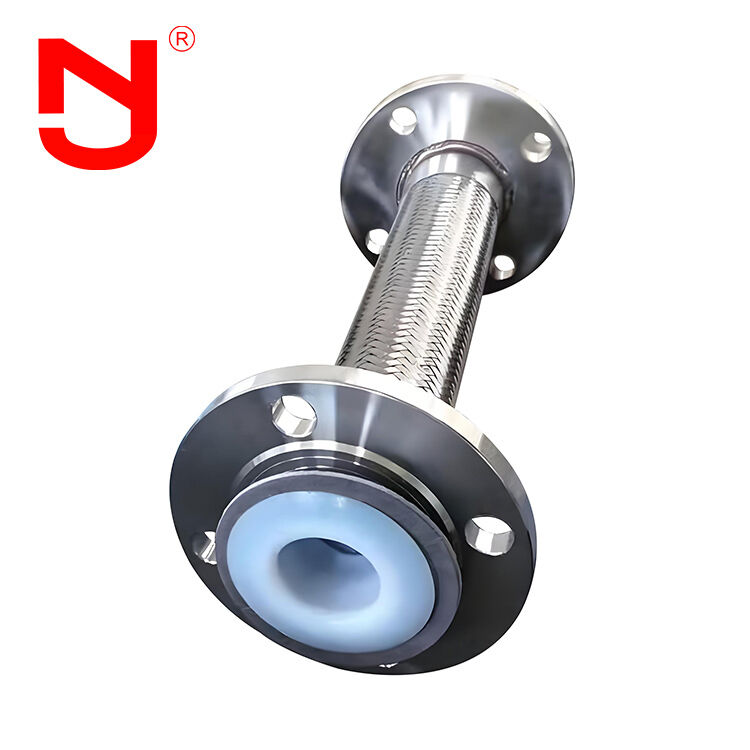

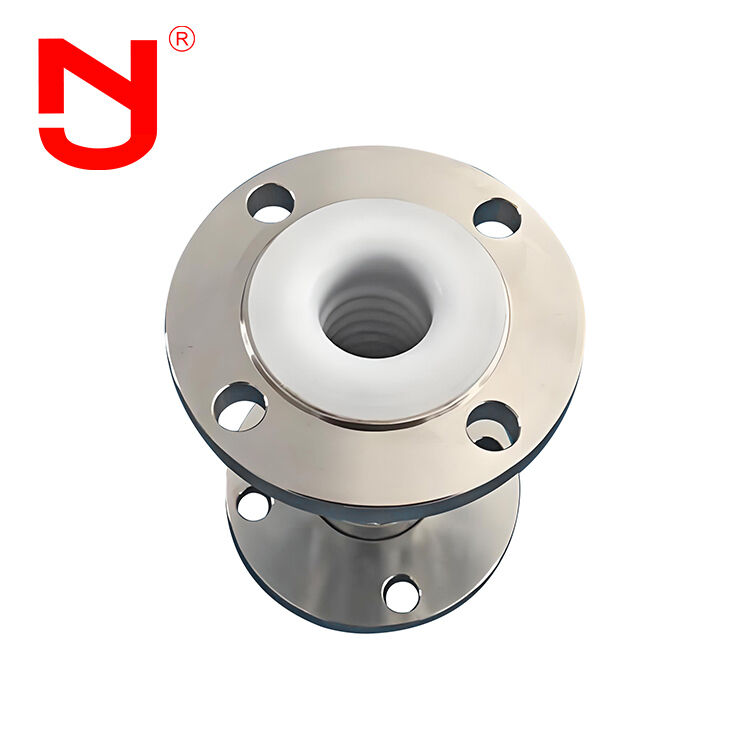

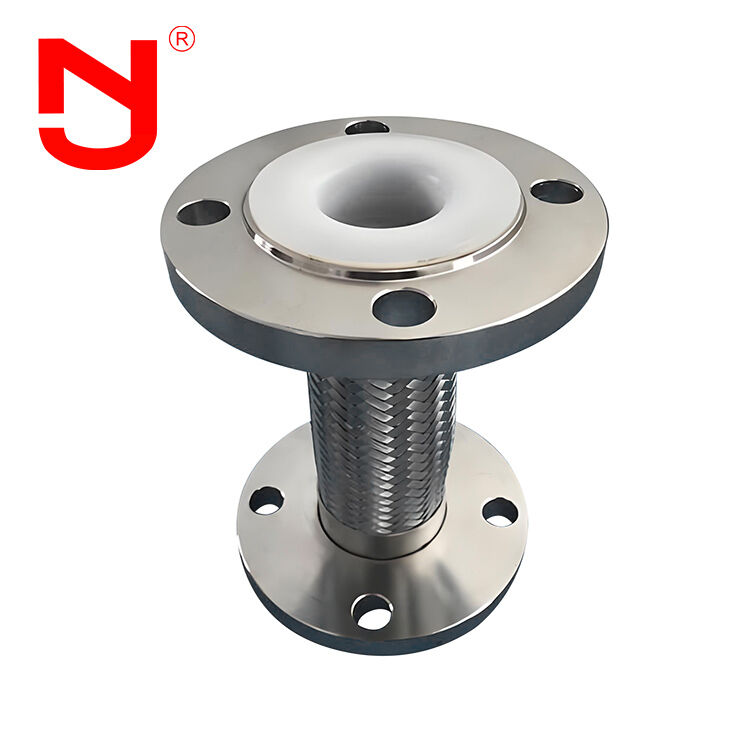

Metal hose with PTFE Lining details show.

Do you know how is a high quality Metal hose with PTFE Lining made?Let's see with JINGNING.

Flexible Connection Hose Advantages

1. Gas flex is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. The pipe metal flexible tube has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of flexible expansion joint mold base customization and OEM

5. Free flex hose pipe samples

6. Large inventory of gas flex

Flexible Connection Hose Application

Because of its flexibility, gas flex can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The flexible expansion joint can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of gas flex is higher and higher.

FAQ

Q1:Can the Flexible Connection Hose be marked with customized logo?

A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.

Q2:What’s the face to face length of Flexible Connection Hose?

A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.

Q3:Can you provide drawings of Flexible Connection Hose?

A3:Yes,we could provide drawings for you.Please contact us to get the drawing of pipe metal flexible tube.

Q4:What certificates of Flexible Connection Hose can you provide?

A4:We could provide CE,ISO certificate.
