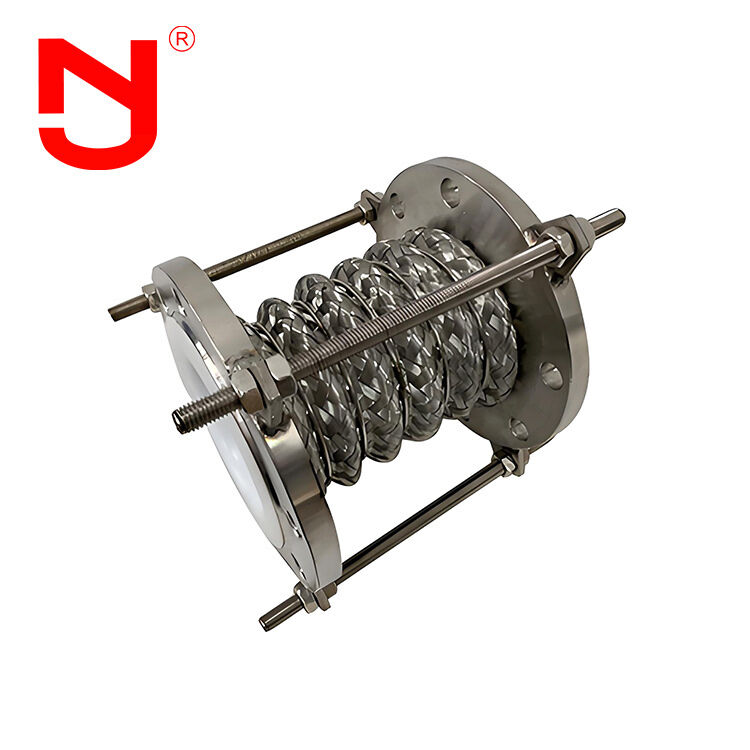

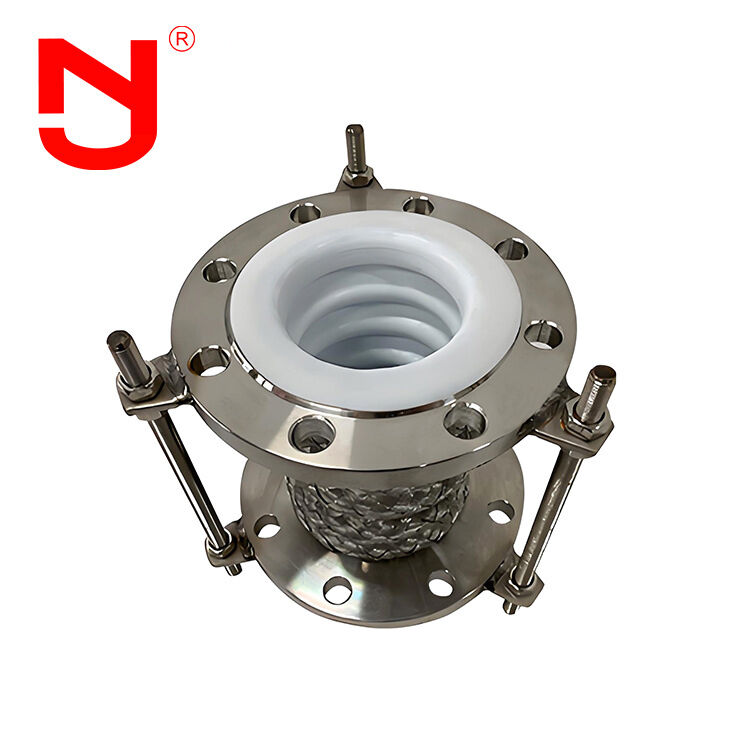

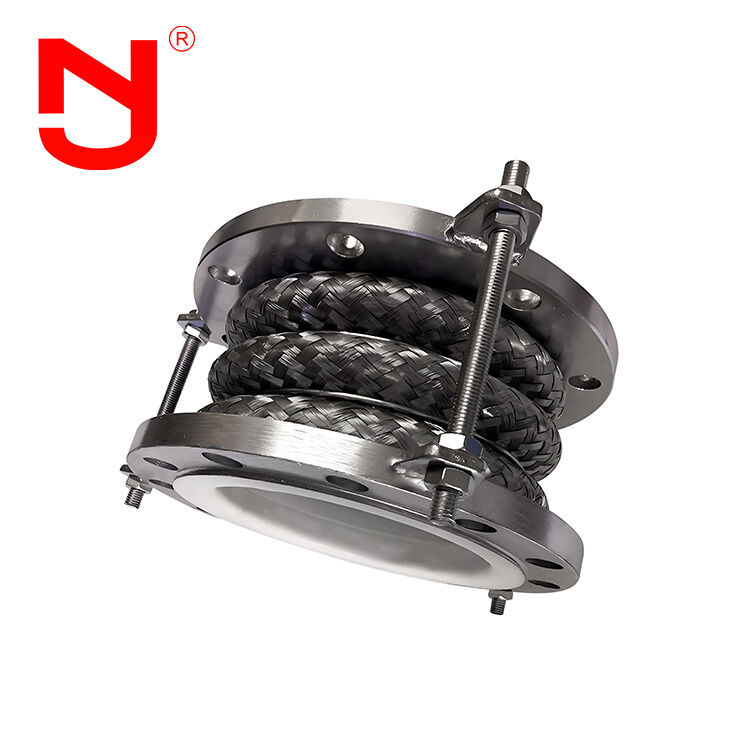

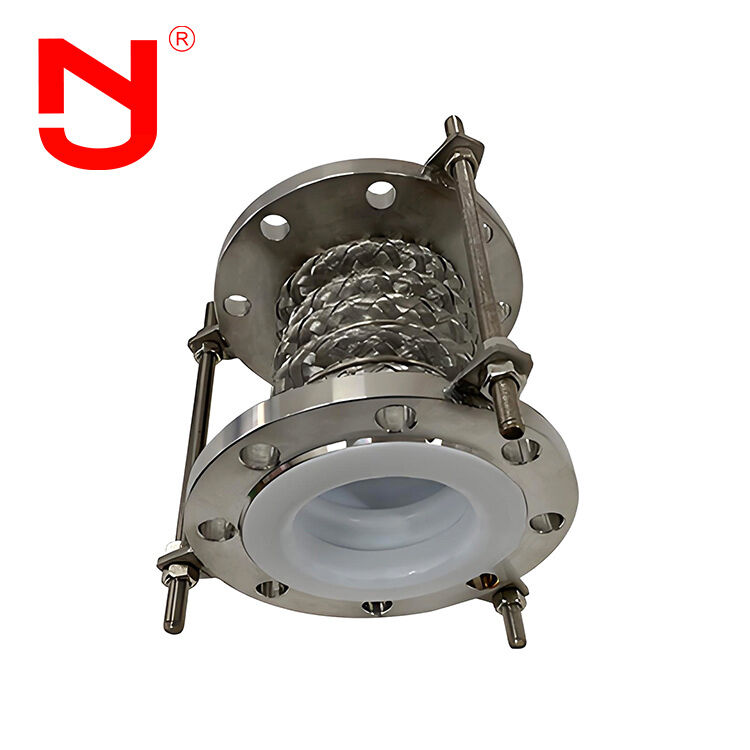

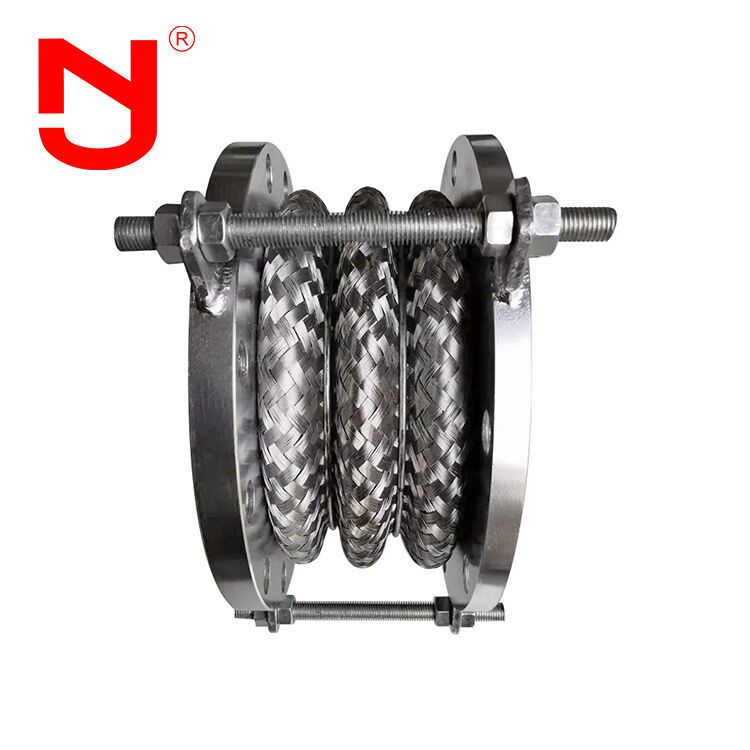

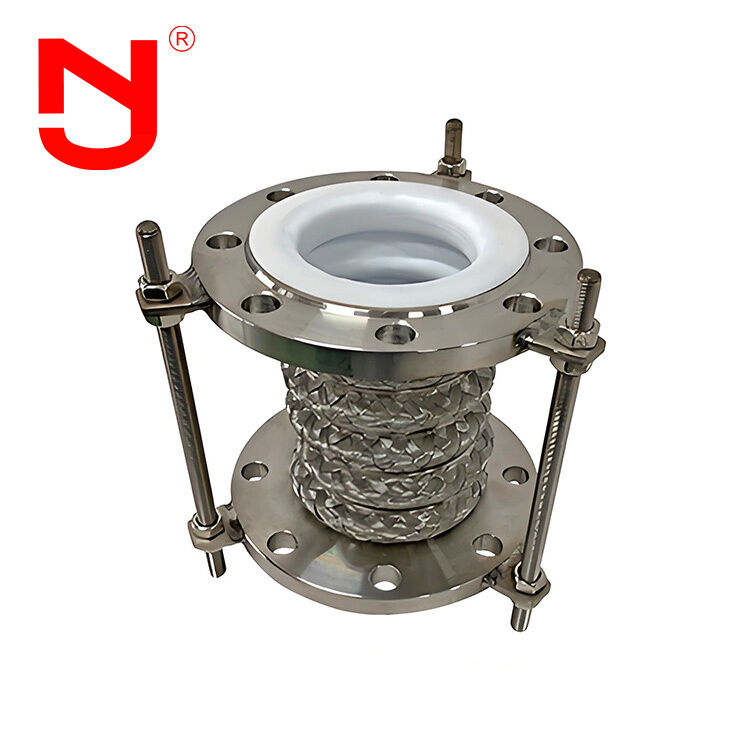

Expansion Loop Pipe SS316 High Temperature Resistance PTFE Lined Bellows Metal

Expansion Loop Pipe SS316 High Temperature Resistance PTFE Lined Bellows Metal

This SS316 metal bellows expansion loop pipe features a PTFE lining and excellent high-temperature resistance, integrating the structural strength of 316 stainless steel and the superior corrosion/chemical resistance of PTFE. The metal bellows design enables flexible axial, lateral and angular compensation, effectively absorbing pipe thermal expansion, contraction and vibration displacement, while the PTFE lining ensures safe media conveyance even in high-temperature, corrosive working conditions. It is widely applied in petrochemical, pharmaceutical, food processing and other industrial piping systems that require thermal compensation and corrosion resistance, with reliable sealing performance and long service life, effectively reducing pipe system stress and improving operational stability.

Performance of PTFE Lined Bellows Metal

The main elastic element of Ptfe Lined Metal expansion loop pipe is stainless steel bellows. Through the expansion and bending of bellows, the flexible expansion joint compensates the pipeline in axial, transverse and angular directions. Bellows expansion can play the following roles:

1. The Ptfe Lined Metal expansion loop pipeabsorbs the axial, transverse and angular thermal deformation of the pipeline.

2. Ptfe Lined Metal expansion loop pipe can absorb equipment vibration and reduce the influence of equipment vibration on pipeline.

3. Ptfe Lined Metal expansion loop pipe can absorb the pipeline deformation caused by earthquake and land subsidence.

Technique Parameter of PTFE Lined Bellows Metal

PTFE Lined Bellows Metal details show

Production process of Expansion Loop Pipe

Do you know how is a high quality PTFE Lined Bellows Metal made?Let's see with JINGNING.

PTFE Lined Bellows Metal advantages

1. Ptfe Lined Expansion Loop Pipe is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. The bellows expansion has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of bellows expansion mold base customization and OEM

5. Free bellows expansion samples

6. Large inventory of bellows expansion

PTFE Lined Bellows Metal application

Because of its flexibility, bellows expansion can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The bellows expansion can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of bellows expansion is higher and higher.

FAQ

Q1:Can the PTFE Lined Expansion Loop Pipe be marked with customized logo?

A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.

Q2:What’s the face to face length of PTFE Lined Expansion Loop Pipe?

A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.

Q3:Can you provide drawings of PTFE Lined Expansion Loop Pipe?

A3:Yes,we could provide drawings for you.Please contact us to get the drawing of bellows expansion.

Q4:What certificates of PTFE Lined Expansion Loop Pipe can you provide?

A4:We could provide CE,ISO certificate.

Q5:Can we get a sample of PTFE Lined Expansion Loop Pipe?

A5:Yes,we could provide samples for you to test the quality.
