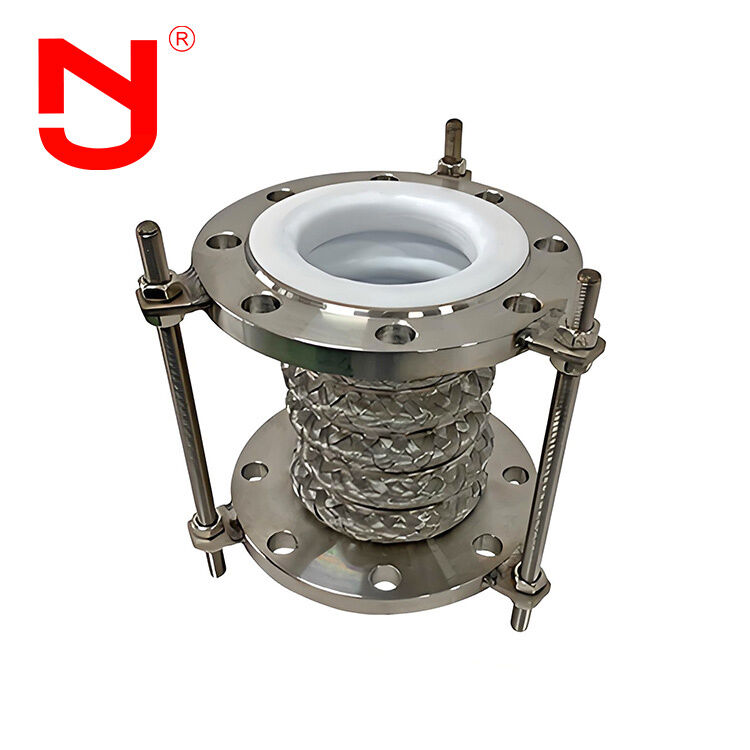

Flange Bellows SS316 High Resistance Ptfe Lined Flexible Expansion Joint

Flange Bellows SS316 High Resistance Ptfe Lined Flexible Expansion Joint

Flange Bellows are precision-engineered flexible pressure components with integral flange connections, core structure is the corrugated metal bellows (usually stainless steel), combined with flanges at both ends for direct bolted installation to piping or equipment. Primarily designed to absorb axial, lateral and angular misalignment in piping systems, as well as compensate thermal expansion and contraction caused by temperature fluctuations, while dampening vibration and reducing mechanical stress on pipelines, valves and heat exchange equipment. Featuring excellent sealing performance, high pressure and temperature resistance, corrosion resistance and structural stability, they are widely used in petrochemical, power, metallurgy, HVAC and industrial process piping systems, especially suitable for harsh working conditions requiring reliable connection and flexible compensation.

Ptfe Lined Flexible Expansion Joint have the following characteristics:

• High temperature resistance, corrosion resistance, and high pressure resistance
• Lightweight and highly flexible
• Strong resistance to destruction
• Durable and long-lasting

Taking into account the advantages of this product, its service life greatly exceeds that of existing steam hoses. Long term use does not require replacement, greatly reducing usage costs, improving efficiency, and being economical and practical.

Technique Parameter of Ptfe Lined Metal Expansion Joint

Ptfe Lined Flexible Expansion Joint details show

Production process of Flange Bellows

Do you know how is a high quality Flange Bellows made?Let's see with JINGNING.

Ptfe Lined Flexible Expansion Joint advantages

1. Flange Bellows is ex factory price

2. 17 years manufacturing experience, 5 years export experience

3. The bellows expansion has strict quality inspection, and the quality far exceeds the industry standard.

4. Various specifications of bellows expansion mold base customization and OEM

5. Free bellows expansion samples

6. Large inventory of bellows expansion

Ptfe Lined Flexible Expansion Joint application

Because of its flexibility, Expansion Joint Plumbing can compensate the temperature difference deformation or other deformation between equipment and pipeline, prevent vibration, reduce the thrust of pipeline on equipment, and adapt to the uneven settlement of oil tank foundation. The Ptfe Lined Flexible Expansion Joint can be widely used in chemical industry, oil refining, electric power, light industry, atomic energy, metallurgy, machinery, instrument, ship, aerospace and other departments. With the wide application of power pipeline and heat pipeline in industry and civil field, the requirement of bellows expansion is higher and higher.

FAQ

Q1:Can the Flange Bellows be marked with customized logo?

A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.

Q2:What’s the face to face length of Flange Bellows?

A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.

Q3:Can you provide drawings of Flange Bellows?

A3:Yes,we could provide drawings for you.Please contact us to get the drawing of bellows expansion.

Q4:What certificates of Flange Bellows?

A4:We could provide CE,ISO certificate.

Q5:Can we get a sample of Flange Bellows?

A5:Yes,we could provide samples for you to test the quality.
