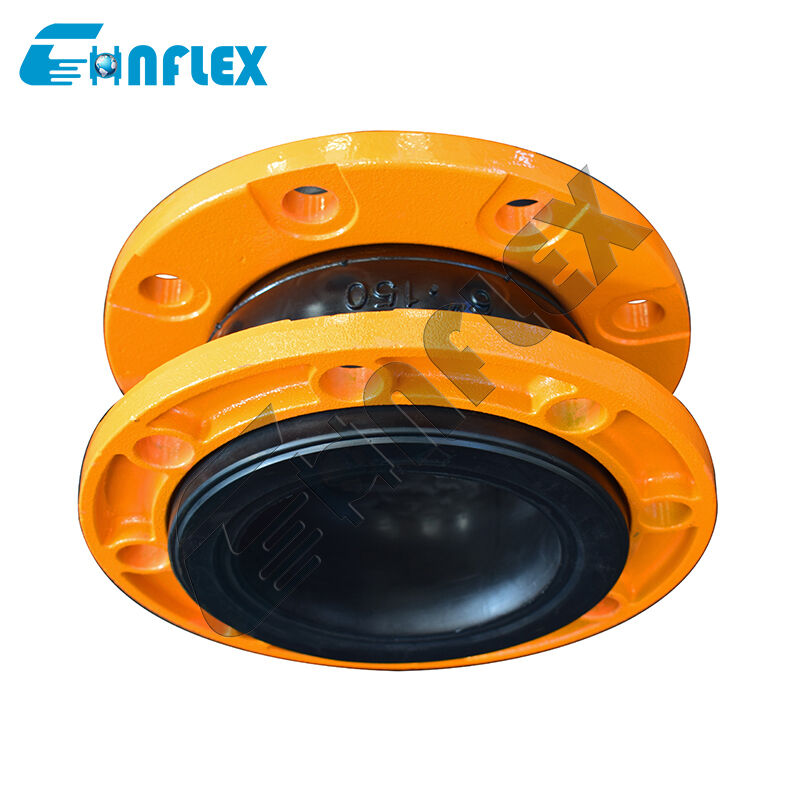

Name: High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems
Brand: Shanghai Songjiang Jingning Shock Absorber Co.,Ltd.
SKU: RLJS
Price: 31.16 USD
Availability: InStock

Home > Products > Single Sphere Rubber Expansion Joint >

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems

flanged rubber expansion joint

heavy duty flexible bellows connector

industrial fluid pipe expansion joint

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE，ISO

Model Number:

RLJS

Document:

REJ Manual - CHNFLEX.pdf

Request A Quote

Product Details

OEM/ODM:

For 20 Year's Experience

Product Name:

Rubber Expansion Joint Standard High Pressure Resistant In Piping Customized

Keyword:

Rubber Expansion Joint Standard

Material:

EPDM,NBR,NR, CR, FKM

Size:

DN50

Flange Standard:

PN10/16, Class150#, Class300#, JIS5K, JIS10K

Color:

Black

Shape:

Round

Material Of Flange:

Q235, SS304, SS316, SS316L

Surface Treatment:

Cold Galvanized

Nominal Diameter:

32mm - 1800mm

Warranty Time:

12 Months

In Stock:

20000

Businese Type:

Rubber Expansion Joints Manufacturer

Flange Material:

Carbon Steel, SS304, SS316

Main Frame:

Nylon Cord Fabric

Resistance:

Corrosion And Abrasion Resistant

Working Temperature:

-20℃~150℃

Feature:

Small Volume

Warranty:

12 Months

Deflection Angle:

10° - 15°

Axial Displacement:

6-18 Mm

Company Type:

Factory

Head Code:

Round

Product Drawings:

Offer

Connection Type:

Flanged

Oem:

Yes

Power:

Manual

Rubber Joint Material:

EPDM,NBR,CR,PTFE,etc.

Customized Support:

OEM, ODM

Operating Medium:

Water, Oil, Air, Chemicals

Applicable Media:

Air, Water, Oil, Weak Acid And Alkali

Standard:

DIN/ANSI/JIS/BS

Installation Manual:

Offer

Application:

Pipeline Systems

Temperature Rating:

200°F

Standard Of Flange:

ANSI, DIN, JIS, EN, Etc

Payment & Shipping Terms

Minimum Order Quantity

Price

US$11.16~51.16/pc

Packaging Details

carton or wooden

Delivery Time

5--15 working days

Payment Terms

Western Union,T/T,L/C,D/A,D/P,MoneyGram

Supply Ability

10000 sets per week

Flexible Joint 2 inch Expansion Bellows for Pipes Manufacturer Flanged Type

Get Best Price

Video

Rubber Expansion Bellows Manufacturer of Flanged Flexible Rubber Joint

Get Best Price

Video

Customized Pipe Expansion Joint Flange Type Flexible Joint in Pipes

Get Best Price

Video

High Pressure Resistant Flexible Expansion Joints In Piping Customized

Get Best Price

86-150-93112546

joints@chnflex.com

Contact Now

Product Description

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems

Product Description

Engineered to withstand high-pressure spikes, this heavy-duty flanged rubber expansion joint serves as a critical defense line for rugged industrial fluid networks. Utilizing a vulcanized composite matrix of thick synthetic rubber and high-tensile fabric reinforcement, it maintains structural integrity under immense hydraulic stress while swallowing up structural vibrations. The rigid backing flanges ensure uniform compression across the sealing face, eliminating any chance of blowouts at high-stress connection points.

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 0

Performance characteristics

1. Flexibility: Accommodates axial, lateral, and angular movements.
2. Durability: Reinforced rubber flexible joint provides long-lasting performance.
3. Corrosion Resistance: Resists aggressive environments and chemicals.
4. Noise & Vibration Reduction: Dampens vibrations and shock waves.
5. Ease of Installation & Maintenance: Compact design and standard flange connections facilitate installation and upkeep.

Product Specification

Size		Length	Allowable Movements in Operation
mm	inch	mm	Axial Compression mm	Axial Extension mm	Transverse Movement mm	Angular Deflection mm
mm	inch	mm	Axial Compression mm	Axial Extension mm	Transverse Movement mm	Angular Deflection mm
25	1	130/152	20	12	14	15°
32	1 1/4	95/130/152	20	12	14	15°
40	1 1/2	95/130/152	20	12	14	15°
50	2	105/130/152	20	12	14	15°
65	2 1/2	115/130/152	20	12	14	15°
80	3	130/135/152	20	12	14	15°
100	4	130/152	20	12	14	15°
125	5	130/152/165	20	12	14	15°
150	6	130/152/185	20	12	14	15°
200	8	130/152/210	20	12	14	15°
250	10	130/203/230	20	12	14	15°
300	12	130/203/245	25	16	22	15°
350	14	200/255	25	16	22	15°
400	16	200/255	25	16	22	15°
450	18	200/255	25	16	22	15°
500	20	200/255	25	16	22	15°
600	24	260	25	16	22	15°
700	28	260	25	16	22	15°
800	32	260	25	16	22	15°
900	36	260	25	16	22	15°
1000	40	260/300	25	16	24	15°
1100	44	300	25	16	24	15°
1200	48	300	25	16	24	15°

Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering

Product Details

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 1

Production Flow

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 2

1.Raw material

Top level CR/EPDM/NBR

rubber raw materials,

No recycled rubber

2.Plasticating and mixing

Special Formulation for better Bending with Nylon,For Better Strength,Sealing

3.Workblanks wraping

Cooper plated steel wire reinforcement prevent pull off

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 3

4.Vulcanizing

Automatic vulcanization machine ensure vulcanization time and pressure

5.Inspecting
100% strict inspection is to be responsible for consumers

6. Packaging
Protective Packaging for No
Rust and Breakage

Application

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 4

Rubber Expansion Joint Standard are widely used in various fields, including construction, chemical industry, shipbuilding, tap water, gas, chemical pipelines, petroleum pipelines, food pipelines, air conditioning pipelines, and sewage treatment.

Our Services

1.24-hour online

2.Free samples provided

3.Support customization

4.Provide drawings

5.Multiple payment styles to choose from

6.Factory inspection (material, specifications, quantity, pressure, packaging)

7.Long warranty period

8.Suitable packaging for transportation

Our Customer

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 5

Certificate

High-Pressure Flanged Rubber Expansion Joint: Heavy Duty Flexible Bellows Pipe Connector for Industrial Fluid Systems 6

FAQ

Q: What prevents this joint from bursting under high-pressure surges?
A: The internal core is woven with high-density synthetic fiber plies that mechanically restrain the elastomer from over-expanding under sudden pressure spikes.
Q: Can this model be used with petroleum products?
A: If ordered with our NBR (Nitrile) liner option, it offers excellent resistance to oil, fuels, and hydraulic fluids.
