Q1: Why do standard PTFE-lined joints fail in vacuum systems, and how does this model prevent it?

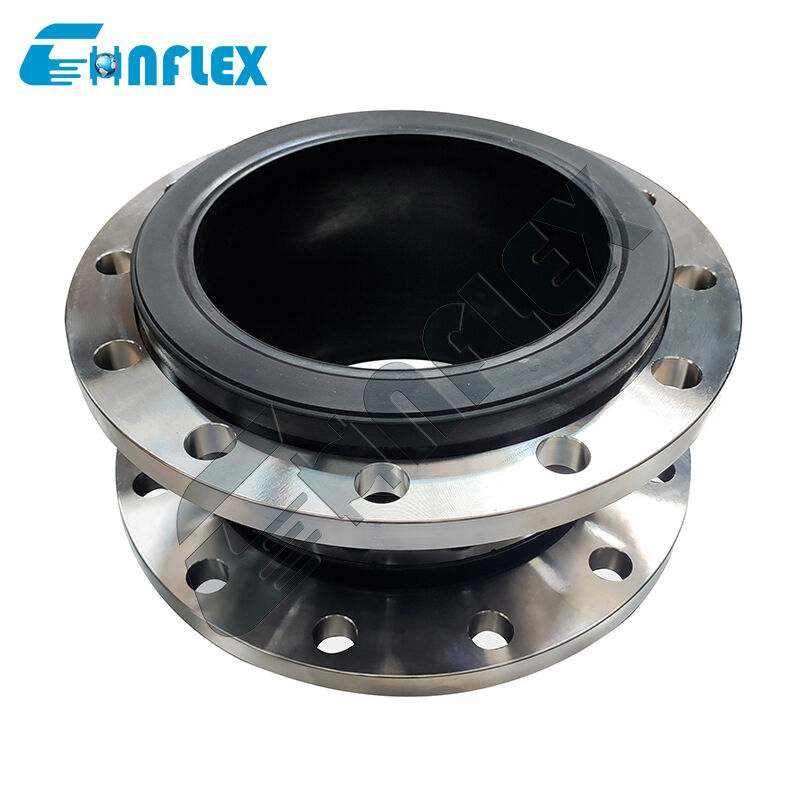

In standard lined joints, the internal plastic liner is only bonded or loosely fitted to the rubber body. When a vacuum (negative pressure) occurs, the suction forces pull the liner inward away from the rubber wall, causing it to collapse and block the pipe flow. Our high-vacuum rated bellows is engineered with internal structural support rings integrated during the vulcanization process, locking the PTFE liner firmly against the structural bellows shell so it cannot collapse.
Q2: What is the maximum vacuum or negative pressure rating this joint can handle?
Our heavy-duty reinforced units are designed to withstand full vacuum conditions (up to $-0.1text{ MPa}$ or $29.9text{ inHg}$) safely, even at elevated operating temperatures where standard plastics naturally soften and become more susceptible to deformation.
Q3: Does the internal vacuum reinforcement restrict the fluid flow inside the pipeline?
No. The vacuum reinforcement rings are precisely integrated behind or flush with the PTFE lining profile depending on the exact model configuration. This keeps the internal bore smooth, minimizing fluid friction loss, maintaining optimal volumetric flow velocity, and preventing chemical sediments from caking inside the arch.
