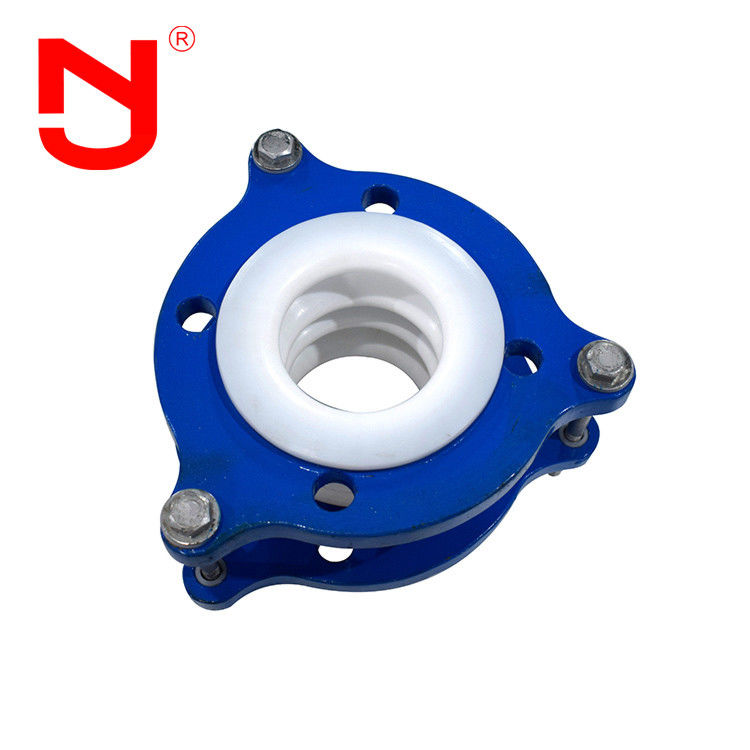

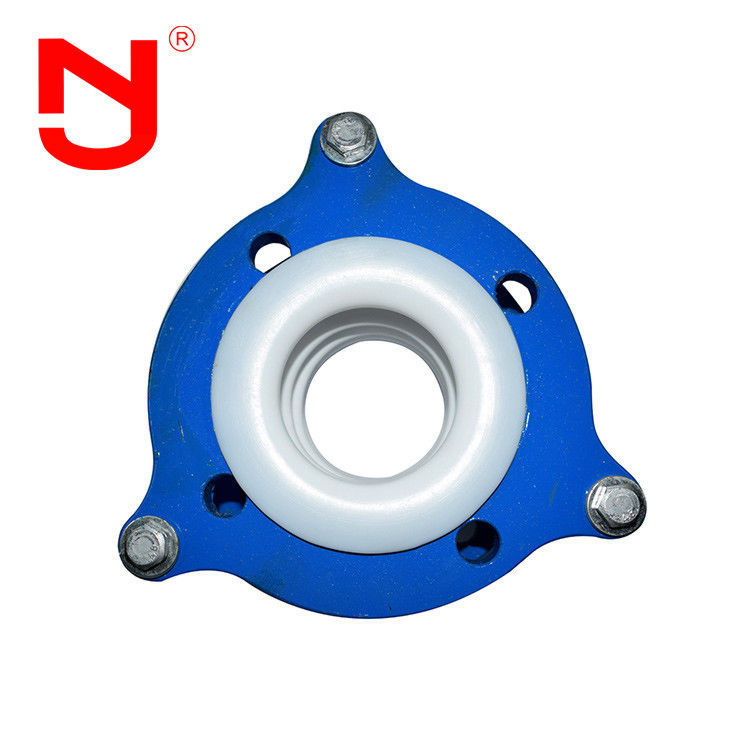

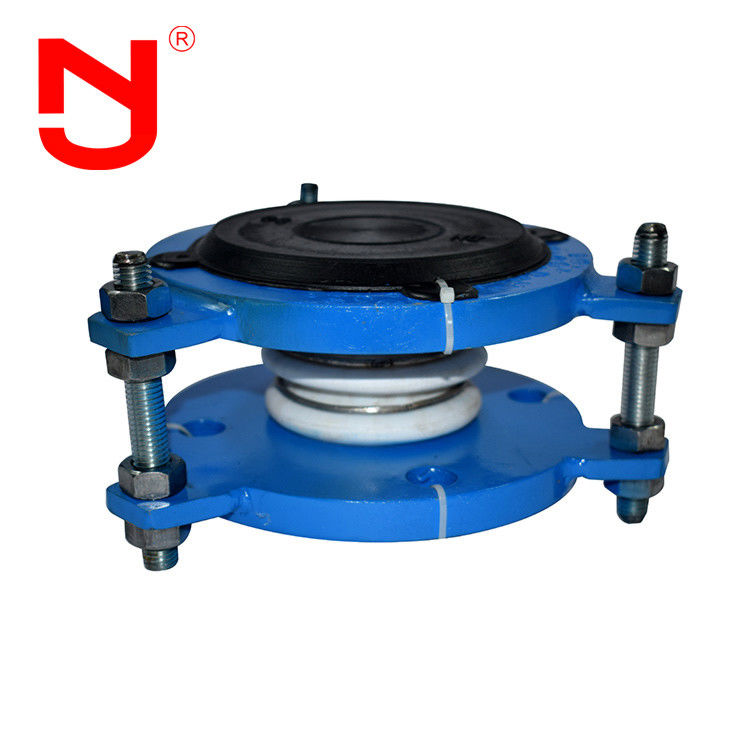

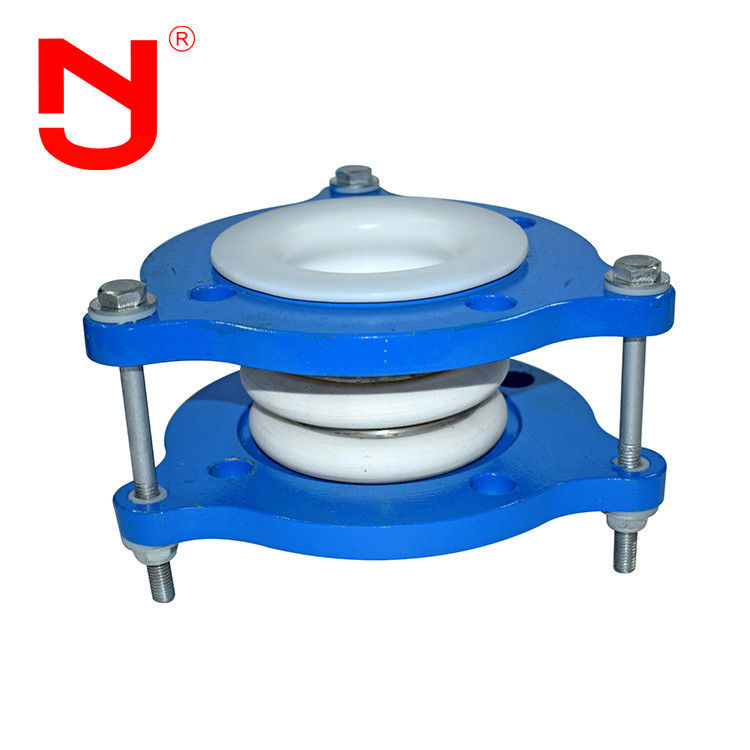

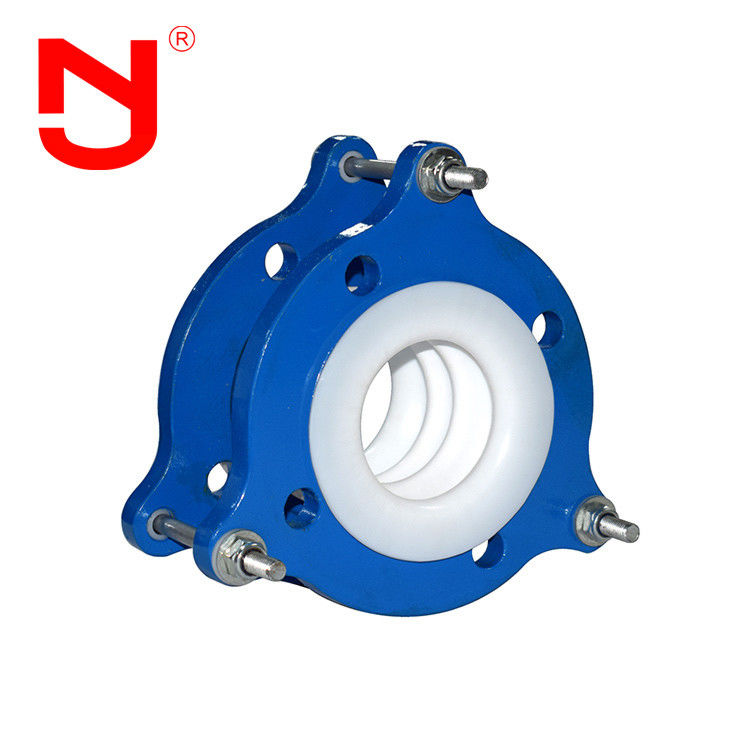

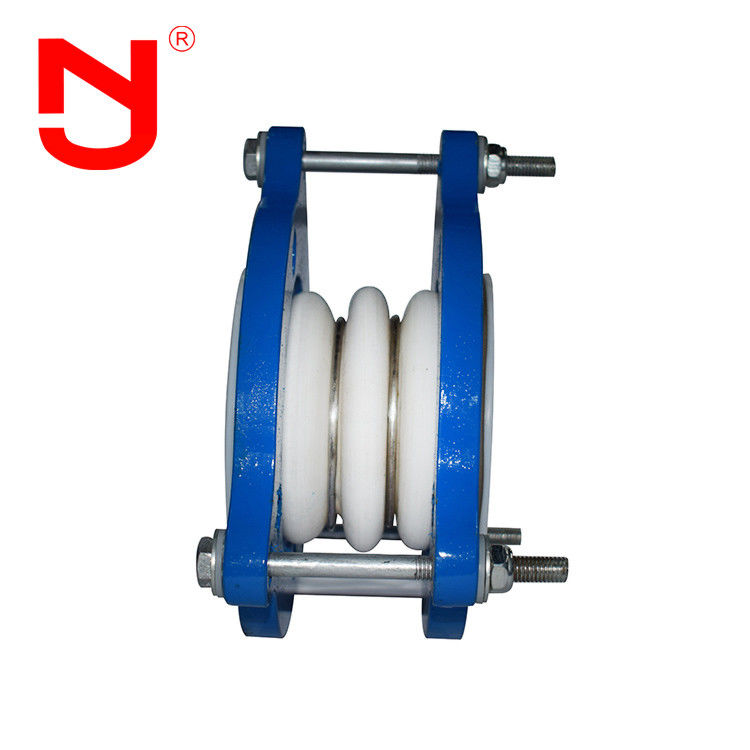

Chemical Resistant PTFE Flanged Expansion Joint Can be Customized
PTFE flanged expansion joint is a flexible conduit fabricated from polytetrafluoroethylene (PTFE), characterized by its accordion-like, undulating surface pattern. This design enhances axial and radial elasticity while maintaining structural integrity, enabling it to accommodate thermal expansion, vibration, and mechanical stress in dynamic systems. Its seamless construction ensures leak-proof performance in demanding industrial environments.
Performance characteristics
The main features of PTFE flanged expansion joint include:
1. Corrosion resistance
2. High temperature stability
3. Sealing performance
4. Widely used
5. Eliminate installation errors
In summary, pure PTFE flanged expansion joint have become indispensable and important equipment in the industrial field due to their unique material properties and excellent performance.
Product Specification
|
Diameter
(mm)
|
Pressure grade
(Mpa) |
Available Area
of Bellows
(c㎡)
|
Max Size of
External Diameter
(mm)
|
Length
(mm) |
| 1.0 |
1.6 |
2.5 |
Flange |
Tube |
| 32 |
20/26 |
18/63 |
15/98 |
16 |
225 |
160/250 |
264/280 |
| 40 |
20/24 |
18/89 |
15/98 |
23 |
244 |
164/259 |
269/289 |
| 50 |
20/70 |
18/70 |
15/106 |
37 |
259 |
172/276 |
282/306 |
| 65 |
26/44 |
22/55 |
15/138 |
55 |
270 |
215/294 |
300/322 |
| 80 |
34/33 |
28/41 |
19/68 |
81 |
284 |
240/338 |
344/366 |
| 100 |
40/75 |
35/93 |
25/54 |
121 |
304 |
235/317 |
323/345 |
| 125 |
38/59 |
34/74 |
29/117 |
180 |
334 |
282/314 |
316/342 |
| 150 |
40/62 |
34/78 |
29/92 |
257 |
364 |
282/339 |
338/367 |
| 200 |
59/52 |
53/58 |
46/65 |
479 |
442 |
340/402 |
402/426 |
| 250 |
87/35 |
79/39 |
48/78 |
769 |
507 |
393/459 |
493/399 |
| 300 |
87/37 |
79/41 |
71/47 |
1105 |
562 |
464/525 |
564/565 |
| 350 |
87/44 |
79/48 |
71/45 |
1307 |
622 |
509/564 |
609/604 |
| 400 |
87/43 |
79/47 |
71/47 |
1611 |
562 |
522/566 |
622/628 |
| 450 |
87/37 |
79/41 |
47/75 |
1972 |
700 |
403/498 |
503/523 |
| 500 |
87/68 |
79/75 |
71/45 |
2445 |
760 |
431/523 |
531/554 |
| 600 |
87/85 |
79/94 |
71/82 |
3534 |
835 |
478/548 |
578/588 |
| 700 |
87/77 |
79/85 |
71/103 |
4717 |
1110 |
490 |
590 |
| 800 |
102/102 |
94/112 |
71/95 |
5822 |
1265 |
502 |
602 |
| 900 |
102/97 |
94/107 |
80/123 |
7620 |
1186 |
/ |
698 |
| 1000 |
102/105 |
94/106 |
82/117 |
9043 |
1286 |
/ |
692 |
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
