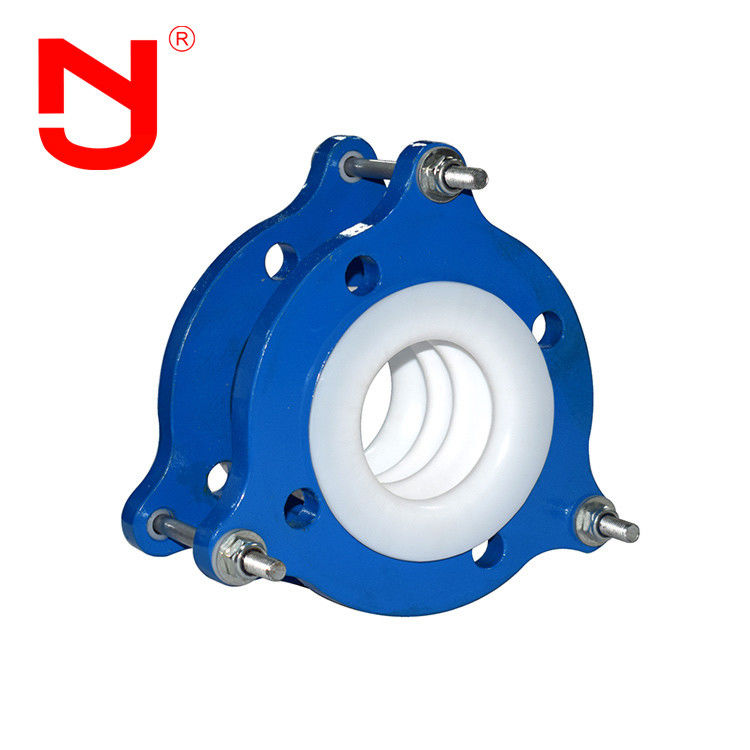

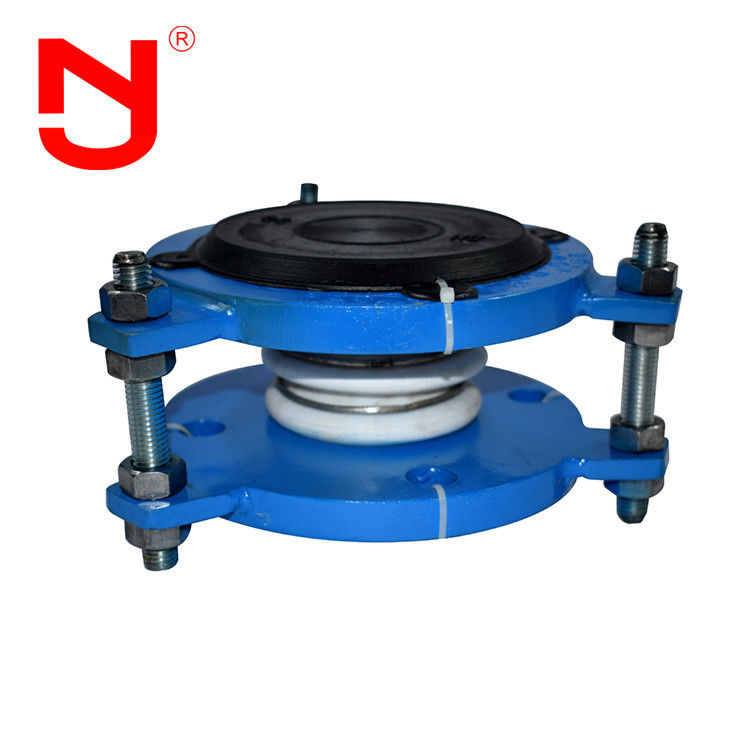

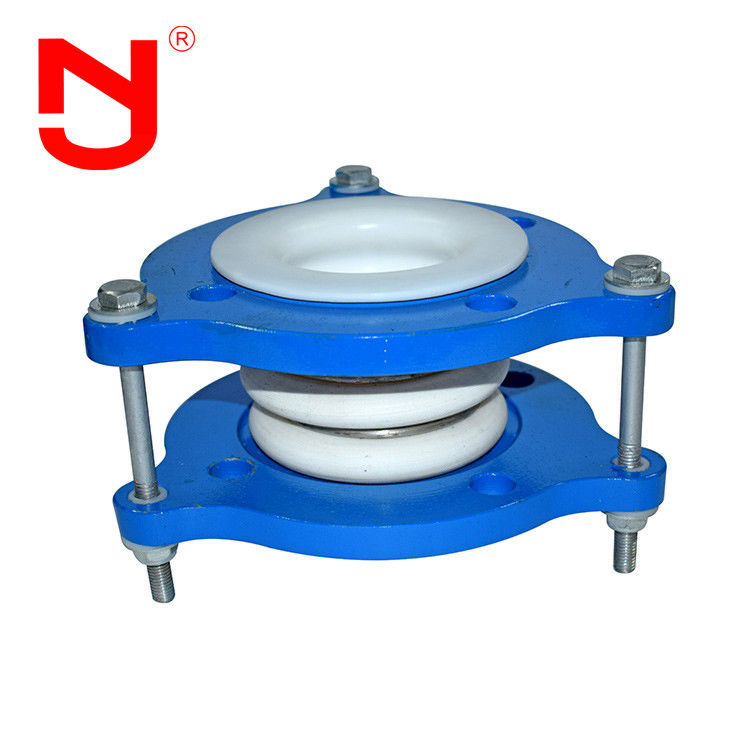

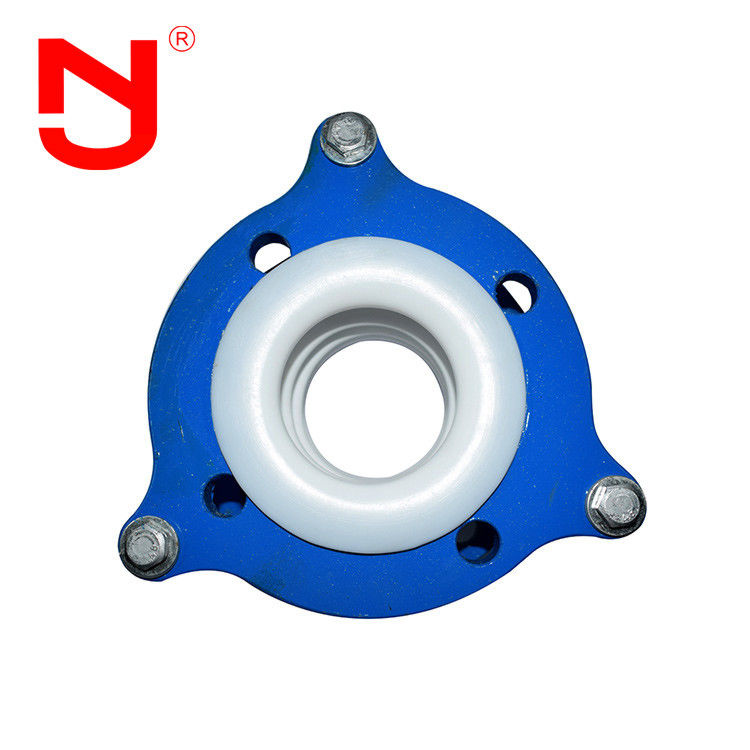

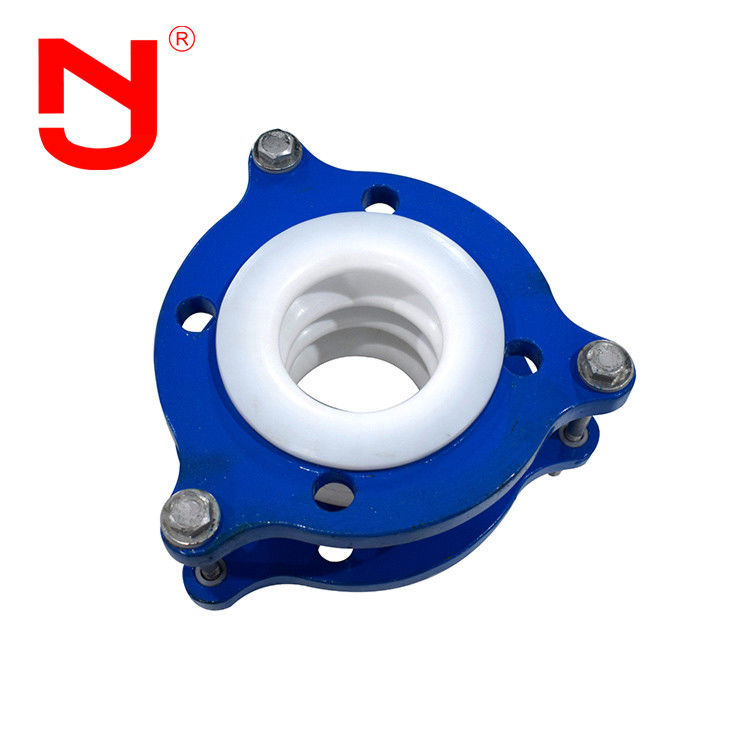

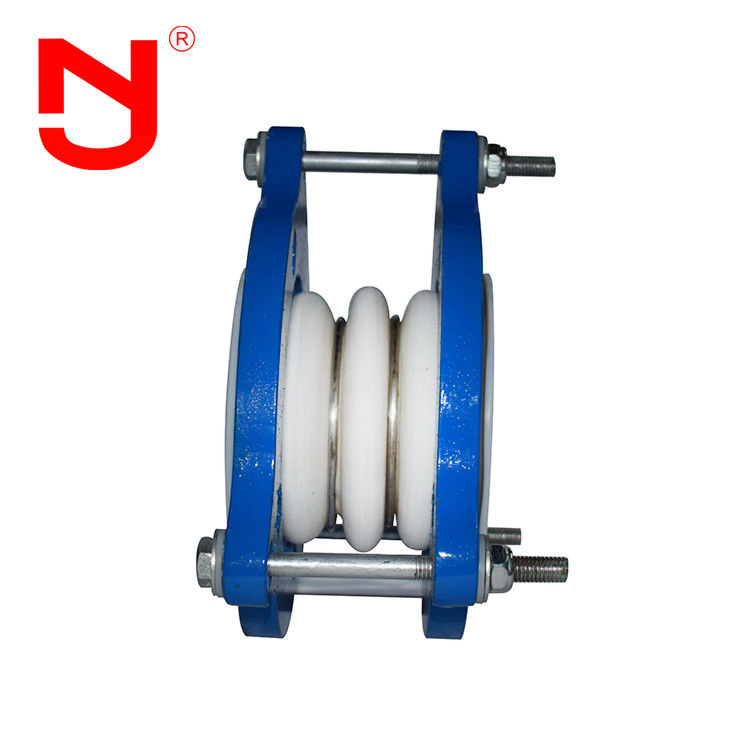

Can be Customized PTFE Bellow Joints Pump Flexible Connector
Produced via specialized processes like isostatic molding or helical winding, PTFE bellow joints achieve precise wall thickness and waveform consistency. Advanced sintering techniques optimize molecular alignment, enhancing fatigue resistance over millions of flex cycles. Optional conductive or reinforced variants incorporate carbon/graphite layers or stainless steel braiding for antistatic or high-pressure capabilities.
Performance characteristics
The main features of PTFE bellow joints include:
1. Corrosion resistance
2. High temperature stability
3. Sealing performance
4. Widely used
5. Eliminate installation errors
In summary, pure PTFE bellow joints have become indispensable and important equipment in the industrial field due to their unique material properties and excellent performance.
Product Specification
|
Diameter
(mm)
|
Pressure grade
(Mpa) |
Available Area
of Bellows
(c㎡)
|
Max Size of
External Diameter
(mm)
|
Length
(mm) |
| 1.0 |
1.6 |
2.5 |
Flange |
Tube |
| 32 |
20/26 |
18/63 |
15/98 |
16 |
225 |
160/250 |
264/280 |
| 40 |
20/24 |
18/89 |
15/98 |
23 |
244 |
164/259 |
269/289 |
| 50 |
20/70 |
18/70 |
15/106 |
37 |
259 |
172/276 |
282/306 |
| 65 |
26/44 |
22/55 |
15/138 |
55 |
270 |
215/294 |
300/322 |
| 80 |
34/33 |
28/41 |
19/68 |
81 |
284 |
240/338 |
344/366 |
| 100 |
40/75 |
35/93 |
25/54 |
121 |
304 |
235/317 |
323/345 |
| 125 |
38/59 |
34/74 |
29/117 |
180 |
334 |
282/314 |
316/342 |
| 150 |
40/62 |
34/78 |
29/92 |
257 |
364 |
282/339 |
338/367 |
| 200 |
59/52 |
53/58 |
46/65 |
479 |
442 |
340/402 |
402/426 |
| 250 |
87/35 |
79/39 |
48/78 |
769 |
507 |
393/459 |
493/399 |
| 300 |
87/37 |
79/41 |
71/47 |
1105 |
562 |
464/525 |
564/565 |
| 350 |
87/44 |
79/48 |
71/45 |
1307 |
622 |
509/564 |
609/604 |
| 400 |
87/43 |
79/47 |
71/47 |
1611 |
562 |
522/566 |
622/628 |
| 450 |
87/37 |
79/41 |
47/75 |
1972 |
700 |
403/498 |
503/523 |
| 500 |
87/68 |
79/75 |
71/45 |
2445 |
760 |
431/523 |
531/554 |
| 600 |
87/85 |
79/94 |
71/82 |
3534 |
835 |
478/548 |
578/588 |
| 700 |
87/77 |
79/85 |
71/103 |
4717 |
1110 |
490 |
590 |
| 800 |
102/102 |
94/112 |
71/95 |
5822 |
1265 |
502 |
602 |
| 900 |
102/97 |
94/107 |
80/123 |
7620 |
1186 |
/ |
698 |
| 1000 |
102/105 |
94/106 |
82/117 |
9043 |
1286 |
/ |
692 |
Note: If the medium is oil, acidic or alkaline substances, and there are special requirements for the working temperature, you can customize it by sending a letter or drawing. Please specify when ordering.
Product Details
Hot Products
Application
PTFE bellow joints are widely used in industries such as aviation, petroleum, chemical, metallurgical, power, papermaking, wood, textile, construction, medicine, and transportation.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Our Customer
Certificate
FAQ
Q1:Can you provide drawings of PTFE bellow joints?
A1:Yes,we could provide drawings for you.Please contact us to get the drawings.
Q2:What’s the warranty period of PTFE bellow joints?
A2:We provide 18 months’ warranty.
Q3:What’ the MOQ of PTFE bellow joints?
A3:1pc. We could delivery any quantity according to your requirements.
Q4:Can we get a sample of PTFE bellow joints?
A4:Yes,we could provide samples for you to test the quality.
