Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size

Detailed Product Description
Name: Rubber Vibration Damper Rubber Material: EPDM/NBR/CR
Flange Material: Carbon Steel Flange Standard: PN6/PN10/PN16
Working Pressure: Max 1.6Mpa Operating Temperature: -20℃~100℃
Applicable Media: Water,Sea Water,Drinking Water,etc Package: Carton
High Light:

rubber flexible joint

,

rubber flexible connector

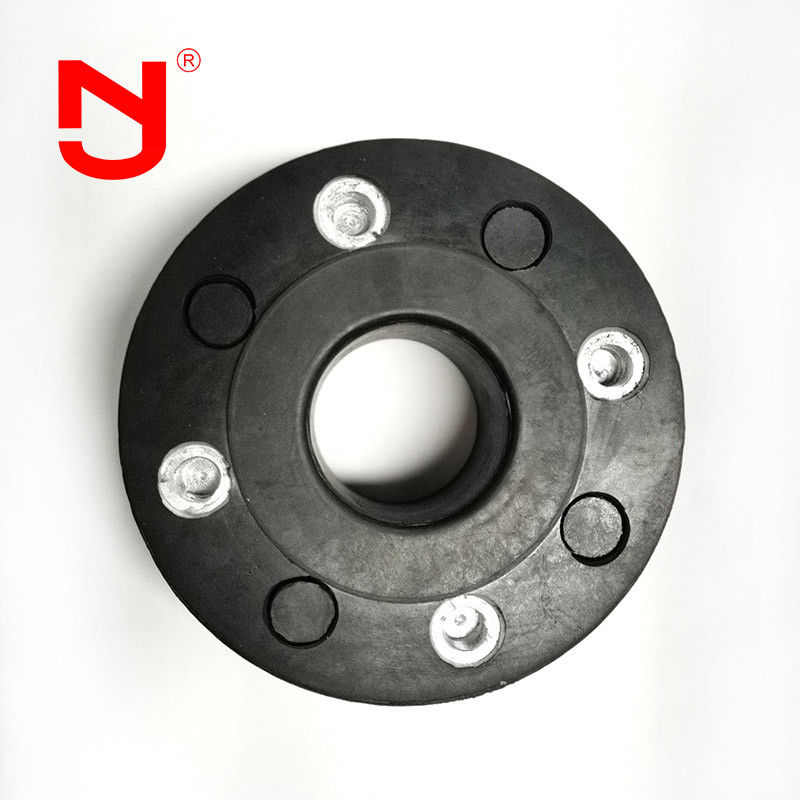

Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size



Chinese Supplier Rubber Vibration Dampers With Flange For Noise-Damping Properties JINGNING vibration dampers are designed to be used against sound and vibrations in pipelines and pumps, regulators and machines.The vibration damper is made up of nitrile rubber with invulcanized steel flanges completely separate from each other, from DN 80 with embedded,elastically stored spacer bolts and reinforced sealing surface. The vibration damper is internally smooth which minimizes the flow resistance.AL 86-GRV can be used at temperatures between -20℃~100℃.Resistance to cold water, hot water, oils and certain acids.


Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size 0

Note:Vibration dampers cannot be used to absorb vibrations, pulls or voltages. An interference-free function of vibration dampers requires proper piping, whereby the attachment points must be paid special attention. Beginning in DN 80 has spacer and control bolts built-in that prevents the vibration damper from tearing and does possible to detect unauthorized tensile loads.



Specifications



Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size 1



Rubber material:EPDM,NBR,CR,VITON,PTFE,SBR

Structure:Inner layer, outer layer, skeleton, metal ring

Flange hole standard:BS,ANSI,DIN,JIS,UNI,ISO etc international standard

Size range:DN20-DN200



Product Features



1. Small size, easy to install and maintain;
2. Damping capacity, can reduce the structural noise;
3. The internal seamless can stand high pressure;
4. Rubber high temperature corrosion, and acid and alkali oil and other media, long service life.



Size

Face to face Length

D

D 1

n*M

L1

mm

mm

mm

mm



mm

20

70

109

75

4xM12

12

25

119

85

16

32

145

100

4xM16

40

156

110

50

171

125

65

192

145

80

207

160

8xM16

18

100

227

180

125

257

210

150

294

240

8xM20

200

90

343

295

20



Where JINGNING®  Rubber Vibration Dampers are used:

On industrial equipment

On motors

On machines

On pumps

On compressors



Established sectors for JINGNING®  Rubber Vibration Dampers:

Building services engineering

Heating engineering

Water supply and water treatment



Typical installation

Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size 2Round Rubber Metal Pipe Connector Rubber Vibration Damping Mounts Small Size 3



Installation / Maintenance


Installation instructions are included with each vibration damper. Pipelines must be fitted with mounting points at the installation sites. mounting should be done in an easily accessible place eg. at the circulation pump, at the shunt valve or for control fittings, i.e. in places that constantly monitored and controlled. During the annual inspection of the heating system, vibration dampers shall be checked for functionality (possibly surface cracks, increased hardness, lack of elasticity, etc.).
