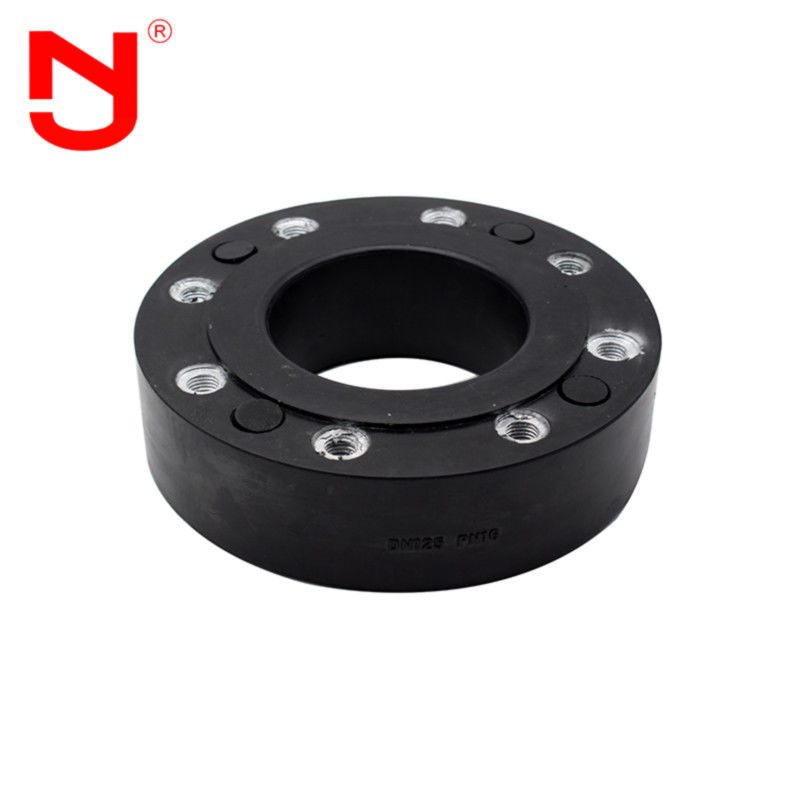

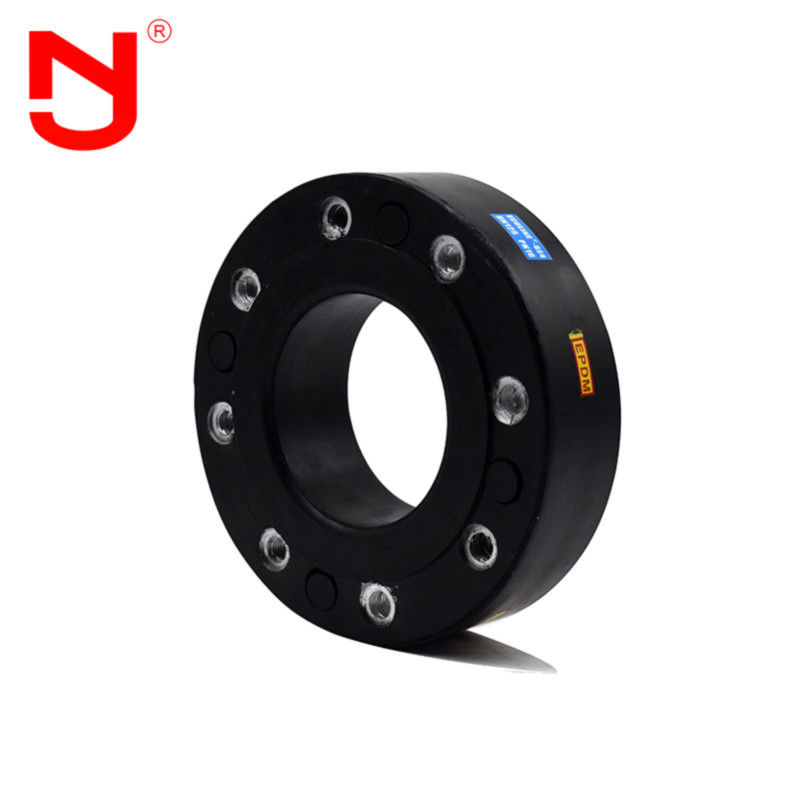

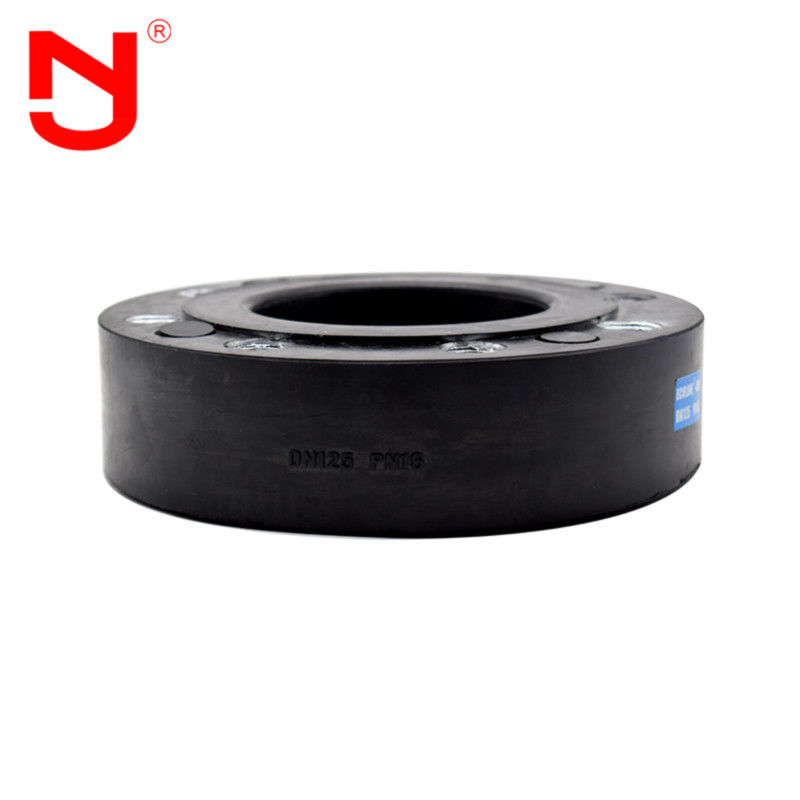

Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200

Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200
Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200

Large Image :  Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200

Product Details:
Place of Origin: China
Brand Name: JINGNING
Certification: CE
Model Number: RFJH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton box
Delivery Time: 7-20days
Payment Terms: T/T, Western Union, , L/C
Supply Ability: 2000pc/week
Detailed Product Description
Name: Rubber Compacted Joint Rubber Material: EPDM
Flange Material: Carbon Steel Flange Standard: PN16
Working Pressure: 1.6Mpa Operating Temperature: -20℃~100℃
Applicable Media: Water,Sea Water,Drinking Water,etc Package: Carton
High Light:

PN16 Rubber Metal Pipe Connector

,

DN32 Rubber Metal Pipe Connector

,

DN200 Rubber Metal Pipe Connector

EPDM Galvanized Double Sphere Flexible Bellow Rubber Expanison Joint



Bellow rubber can also be called fan coil rubber joint, screw rubber soft joint, screw rubber soft joint, screw rubber soft joint and so on. Bellow rubber is composed of inner rubber, multi-layer scraper cord fabric reinforcement, outer rubber tube and metal movable joint.



Specifications of bellow rubber





Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 0



Technical data of bellow rubber



Main data of bellow rubber
Size Face to face Length
mm
D
mm
D 1
mm
n*M L1
mm
mm
20 70 109 75 4xM12 12
25 119 85 16
32 145 100 4xM16
40 156 110
50 171 125
65 192 145
80 207 160 8xM16 18
100 227 180
125 257 210
150 294 240 8xM20
200 90 343 295 20

Note: 1. The special requirements of bellow rubber can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of bellow rubber can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the bellow rubber above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the bellow rubber shall be installed with anti falling device.



Typical installation
Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 1

The installation in the piping of the anti-vibration joints near of pumps, compressors, control devices, valves, operating machines, etc., allows to interrupt the propagation of sound waves and to absorb small vibrations.



Bellow rubber production Flow



Do you know how is a bellow rubber made?Let's see with JINGNING.



Compact Rubber Metal Pipe Connector EPDM Flexible Connector PN16 DN32 - DN200 2



It is very important to select the appropriate bellow rubber of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal bellow rubberfor any application.



Threaded rubber expansion joint advantage



1. The bellow rubber is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.

2. Bellow rubber are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.

3. The natural rubber content of bellow rubber is 47%, which can be used continuously for 15 years without aging.

We introduce foreign advanced technology and combine with China's production experience. In the bellow rubber manufacturing operation, the inner side bears high pressure, and the nylon cord and the inner side rubber are combined better, which can bear higher pressure than the ordinary bellow rubber. Bellow rubber is characterized by perfect combination of inner rubber layer, bright, clean and seamless; the label of bellow rubber adopts vulcanization process, which perfectly matches the ball of bellow rubber.



Bellow rubber application



Heating, water pumping, air-conditioning, for installations such as apartment buildings, hospitals, schools, etc.. Compatible fluids: water, sea water, weak acids and bases, and so on.
Maximum operating pressure: 10 bar
Max continuous operating temperature: +100 ° C.
