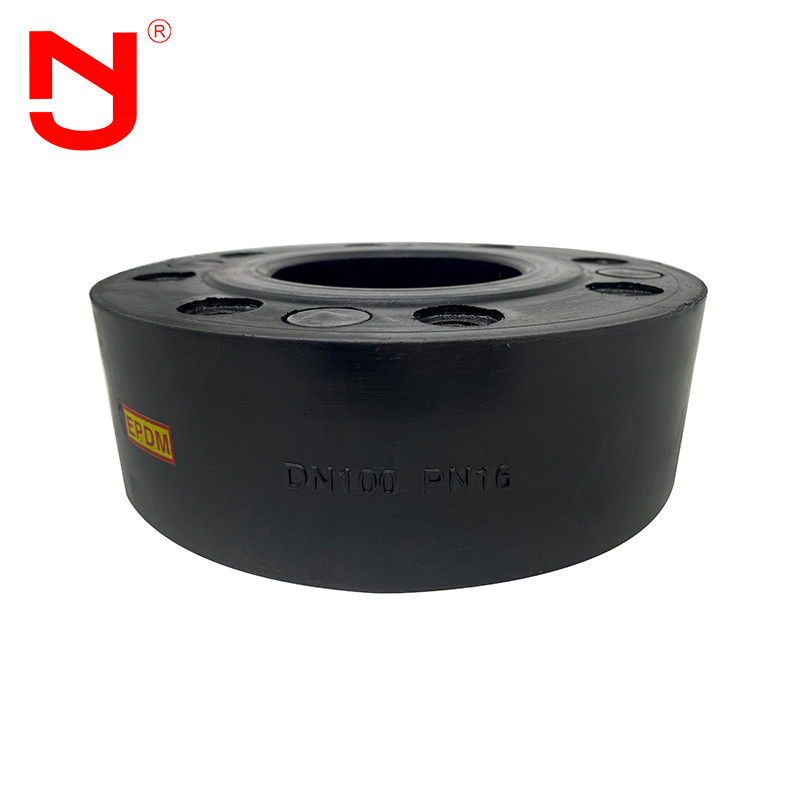

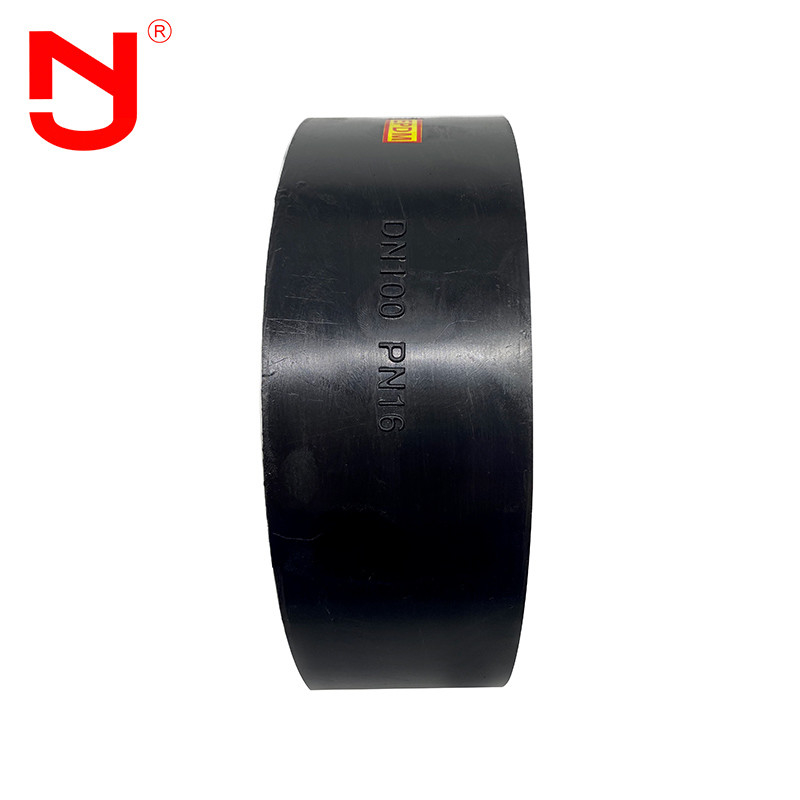

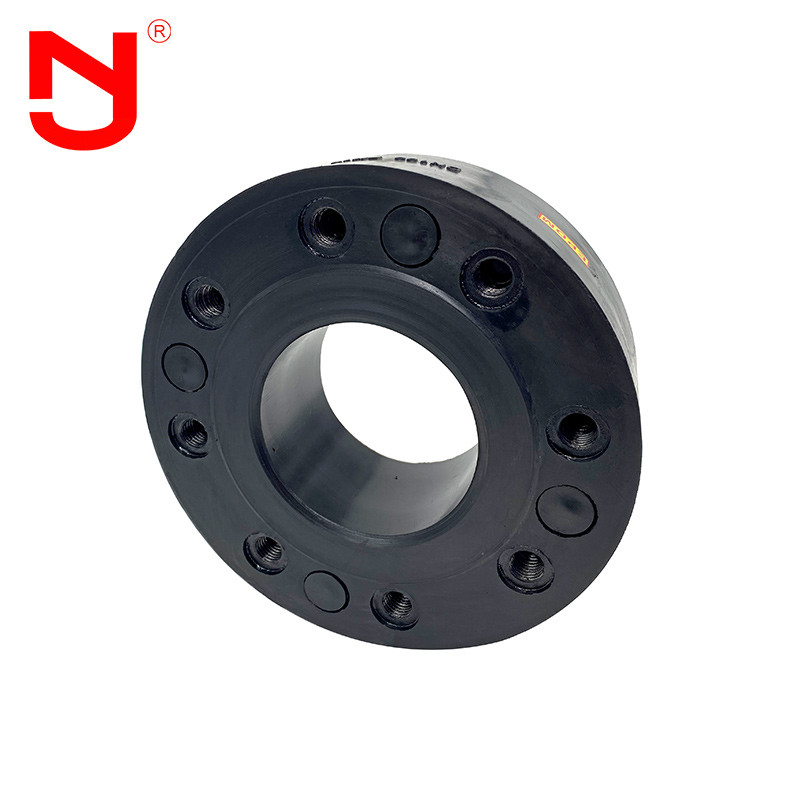

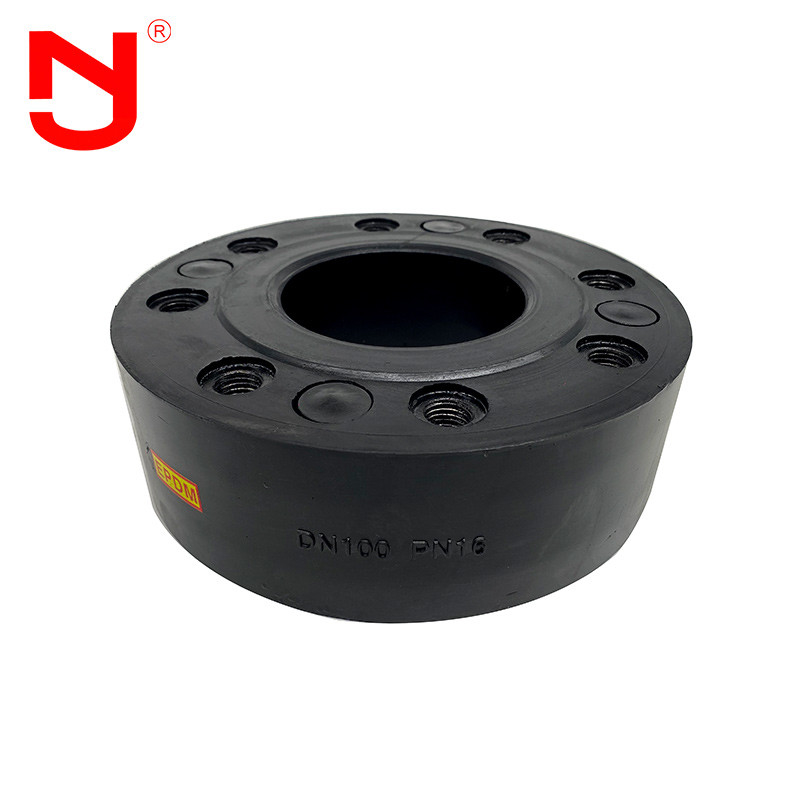

Rubber metal pipe connector
Rubber metal pipe connector can also be called screw rubber soft joint, screw rubber soft joint and so on. Rubber metal pipe connector is composed of inner rubber, multi-layer scraper cord fabric reinforcement, outer rubber tube and metal movable joint.
Specifications of rubber metal pipe connector
Technical data of rubber metal pipe connector
| Main data of rubber metal pipe connector | |||||
| Size | Face to face Length mm |
D mm |
D 1 mm |
n*M | L1 mm |
| mm | |||||
| 20 | 70 | 109 | 75 | 4xM12 | 12 |
| 25 | 119 | 85 | 16 | ||
| 32 | 145 | 100 | 4xM16 | ||
| 40 | 156 | 110 | |||
| 50 | 171 | 125 | |||
| 65 | 192 | 145 | |||
| 80 | 207 | 160 | 8xM16 | 18 | |
| 100 | 227 | 180 | |||
| 125 | 257 | 210 | |||
| 150 | 294 | 240 | 8xM20 | ||
| 200 | 90 | 343 | 295 | 20 | |
Note: 1. The special requirements of rubber metal pipe connector can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber metal pipe connector can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the rubber metal pipe connector above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the rubber metal pipe connector shall be installed with anti falling device.
Typical installation
The installation in the piping of the anti-vibration joints near of pumps, compressors, control devices, valves, operating machines, etc., allows to interrupt the propagation of sound waves and to absorb small vibrations.
Rubber metal pipe connector production Flow
Do you know how is a rubber metal pipe connector made?Let's see with JINGNING.
It is very important to select the appropriate rubber metal pipe connector of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal rubber metal pipe connector for any application.
Threaded rubber expansion joint advantage
We introduce foreign advanced technology and combine with China's production experience. In the rubber metal pipe connector manufacturing operation, the inner side bears high pressure, and the nylon cord and the inner side rubber are combined better, which can bear higher pressure than the ordinary rubber metal pipe connector. Rubber metal pipe connector is characterized by perfect combination of inner rubber layer, bright, clean and seamless; the label of rubber metal pipe connector adopts vulcanization process, which perfectly matches the ball of rubber metal pipe connector.
rubber metal pipe connector application
Rubber metal pipe connectors are mainly used for heating, pumping and air conditioning of apartment buildings, hospitals, schools and other facilities.Applicable liquid environment of rubber metal pipe connector: water, seawater, weak acid and weak alkali, etc.；Maximum working pressure of rubber metal pipe connector: 10 bar；Maximum continuous working temperature of rubber metal pipe connector: + 100 ℃.
FAQ
Q1:Can you provide drawings of rubber metal pipe connector?
A1:Yes,we could provide drawings of rubber metal pipe connector for you.Please contact us to get the drawing of rubber metal pipe connector.
Q2:What certificates of rubber metal pipe connector can you provide?
A2:We could provide CE,ISO certificate for our rubber metal pipe connector.
Q3:Can we get a sample of rubber metal pipe connector?
A3:Yes,we could provide samples for you to test the quality of our rubber metal pipe connector.
Q4:What’s the warranty period of rubber metal pipe connector?
A4:We provide 18 months’ warranty for our rubber metal pipe connector.
