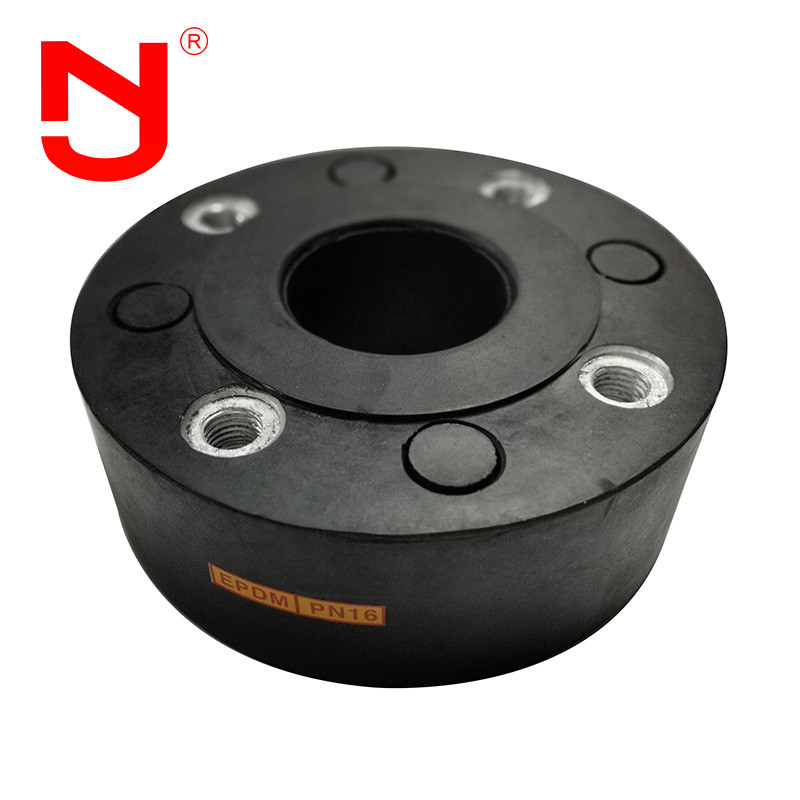

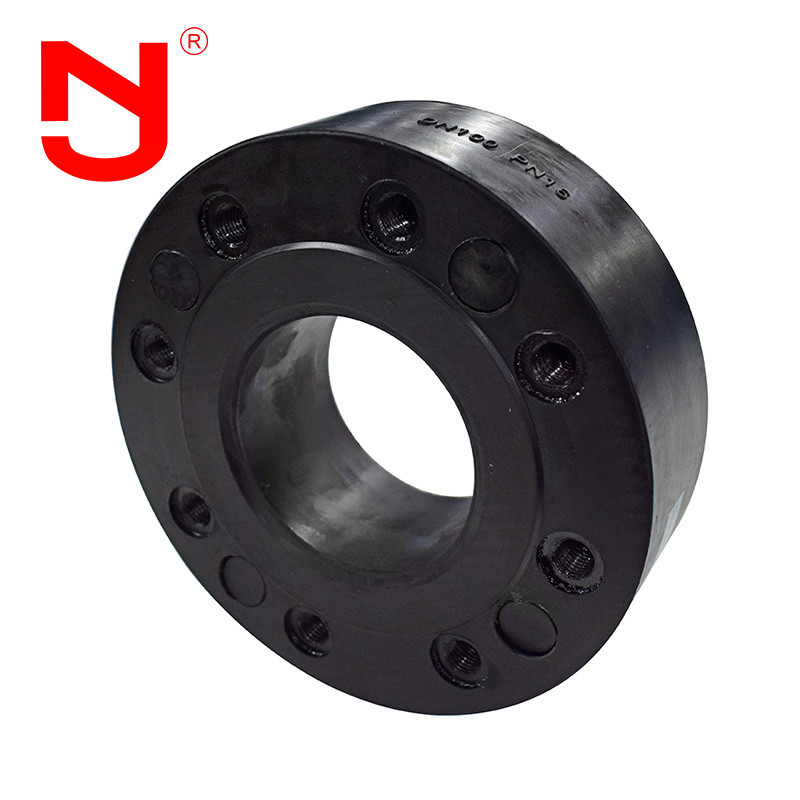

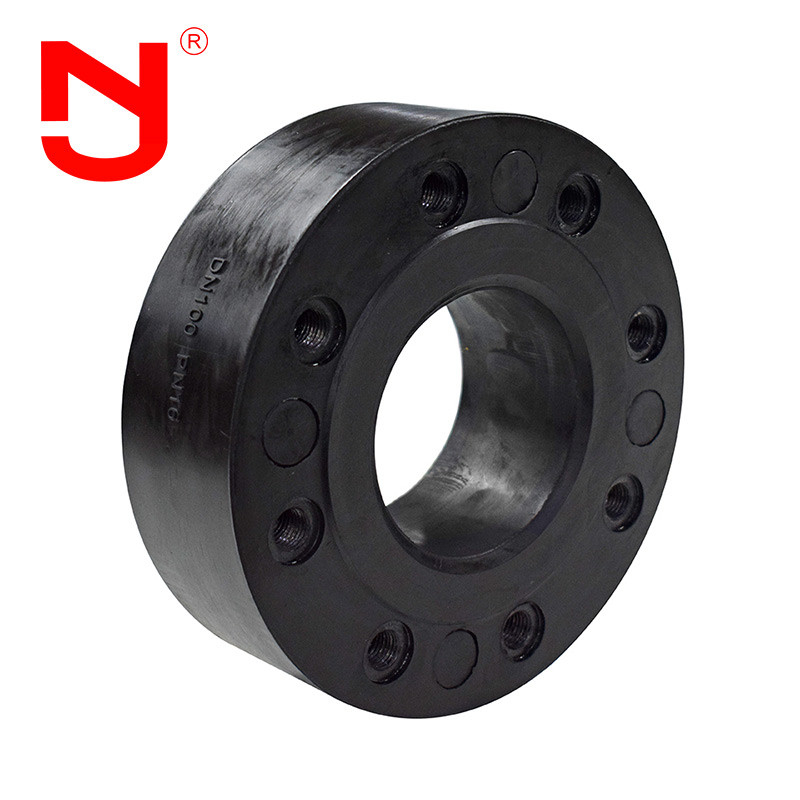

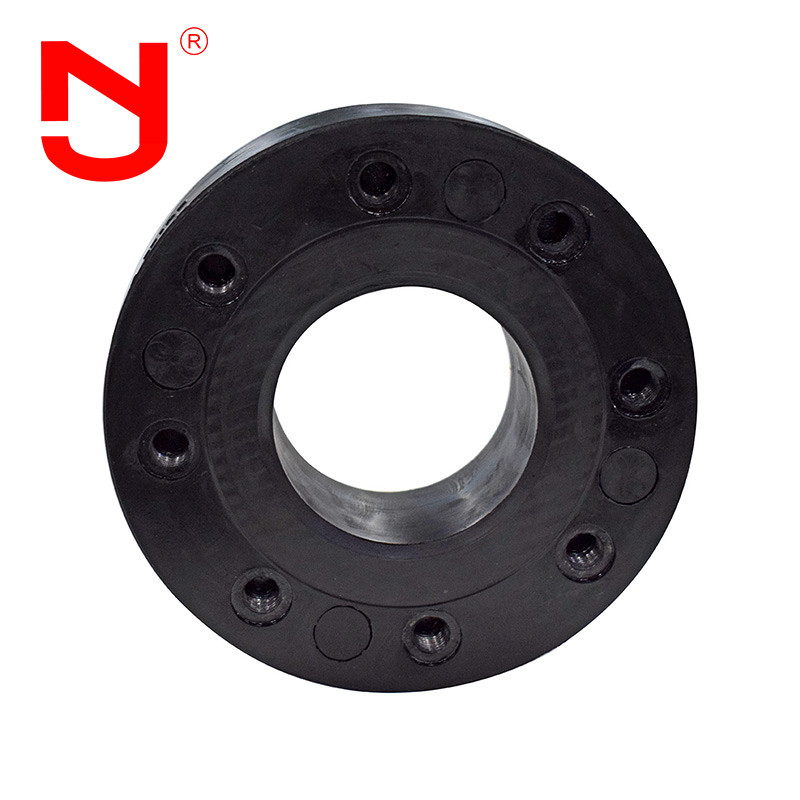

RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector

RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector

RFJH Pipe Fittings

Rubber Metal Pipe Connector Pipe Fittings

RFJH Rubber Metal Pipe Connector

Place of Origin:

China

Brand Name:

JINGNING

Certification:

CE,ISO

Model Number:

RFJH

Contact Us

Request A Quote
Product Details
Name:
RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector
Flange Material:
Rubber Metal Pipe Connector
Working Pressure:
1.6Mpa
Operating Temperature:
-20℃~100℃
Applicable Media:
Water,Sea Water,Drinking Water,etc
Package:
Carton
Key Words:
Pipe Connector
Color:
Black
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton box
Delivery Time
7-20days
Payment Terms
T/T, Western Union, , L/C
Supply Ability
2000pc/week
Product Description

RFJH Rubber Metal Pipe Connector Pipe Fittings of Rubber Metal Pipe Connector

Rubber metal pipe connector can also be called fan coil rubber joint, spiral rubber soft joint, etc. Rubber metal pipe connector consists of inner rubber, multi-layer scraper cord reinforcement, outer rubber pipe and metal movable joint.



Specifications of rubber metal pipe connector



RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector 0



Technical data of rubber metal pipe connector

Main data of rubber metal pipe connector
Size Face to face Length
mm
D
mm
D 1
mm
n*M L1
mm
mm
20 70 109 75 4xM12 12
25 119 85 16
32 145 100 4xM16
40 156 110
50 171 125
65 192 145
80 207 160 8xM16 18
100 227 180
125 257 210
150 294 240 8xM20
200 90 343 295 20

Note: 1. The special requirements of rubber metal pipe connector can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber metal pipe connector can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the rubber metal pipe connector above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the rubber metal pipe connector shall be installed with anti falling device.



Typical installation
RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector 1

The installation in the piping of the anti-vibration joints near of pumps, compressors, control devices, valves, operating machines, etc., allows to interrupt the propagation of sound waves and to absorb small vibrations.



Rubber metal pipe connector production Flow

Do you know how is a rubber metal pipe connector made?Let's see with JINGNING.

RFJH Rubber Metal Pipe Connector Pipe Fittings Of Rubber Metal Pipe Connector 2

It is very important to select the appropriate rubber metal pipe connector of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal rubber metal pipe connector for any application.



Rubber metal pipe connector advantage

1. The rubber metal pipe connector is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.

2. rubber metal pipe connector are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.

3. The natural rubber content of rubber metal pipe connector is 47%, which can be used continuously for 15 years without aging.



Rubber metal pipe connector application

Rubber metal pipe connectors are mainly used for heating, pumping and air conditioning of apartment buildings, hospitals, schools and other facilities.Applicable liquid environment of rubber metal pipe connector: water, seawater, weak acid and weak alkali, etc.;Maximum working pressure of rubber metal pipe connector: 10 bar;Maximum continuous working temperature of rubber metal pipe connector: + 100 ℃.



FAQ

Q1:Can the rubber metal pipe connector be marked with customized logo?

A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.


Q2:What’s the face to face length of rubber metal pipe connector?

A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.


Q3:Can you provide drawings of rubber metal pipe connector?

A3:Yes,we could provide drawings for you.Please contact us to get the drawing of rubber metal pipe connector.


Q4:What certificates of rubber metal pipe connector can you provide?

A4:We could provide CE,ISO certificate.
