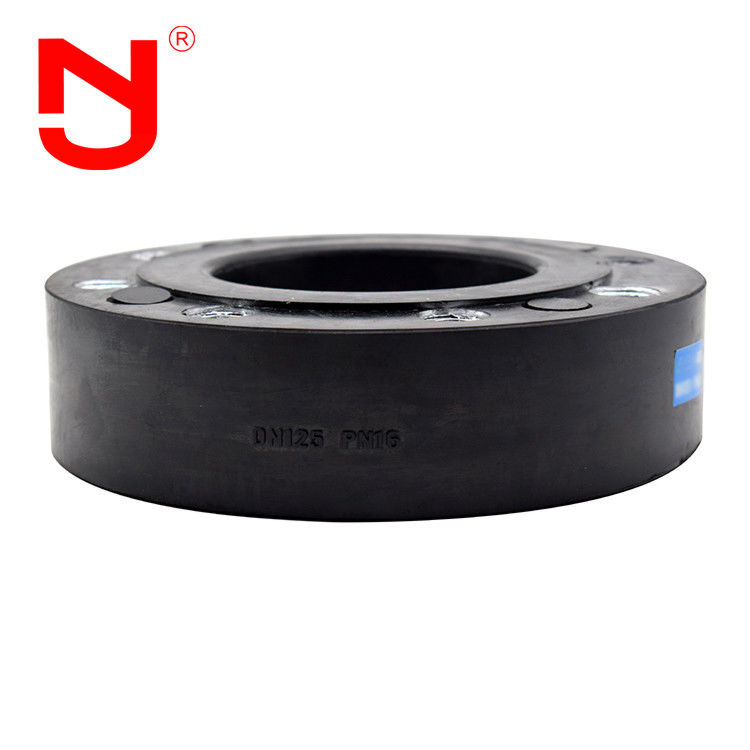

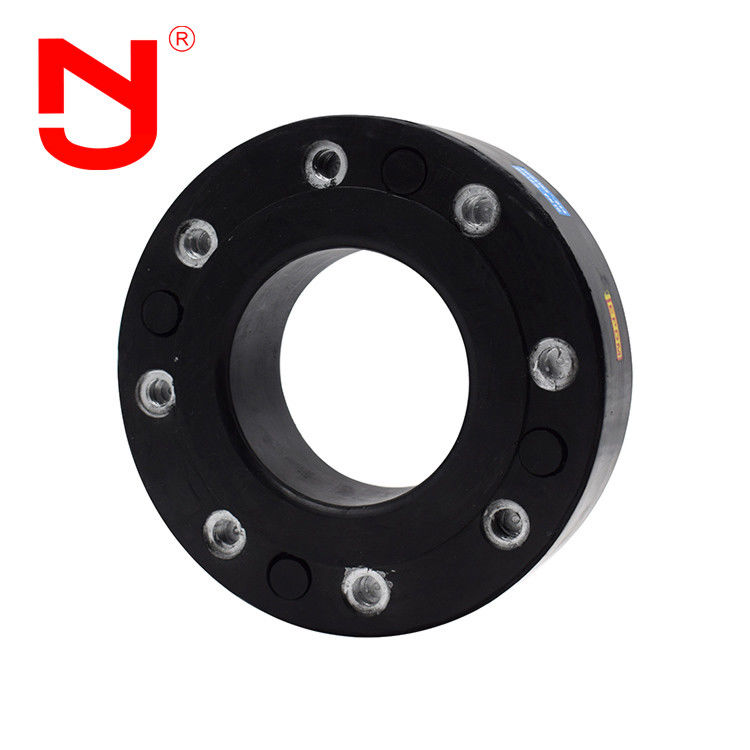

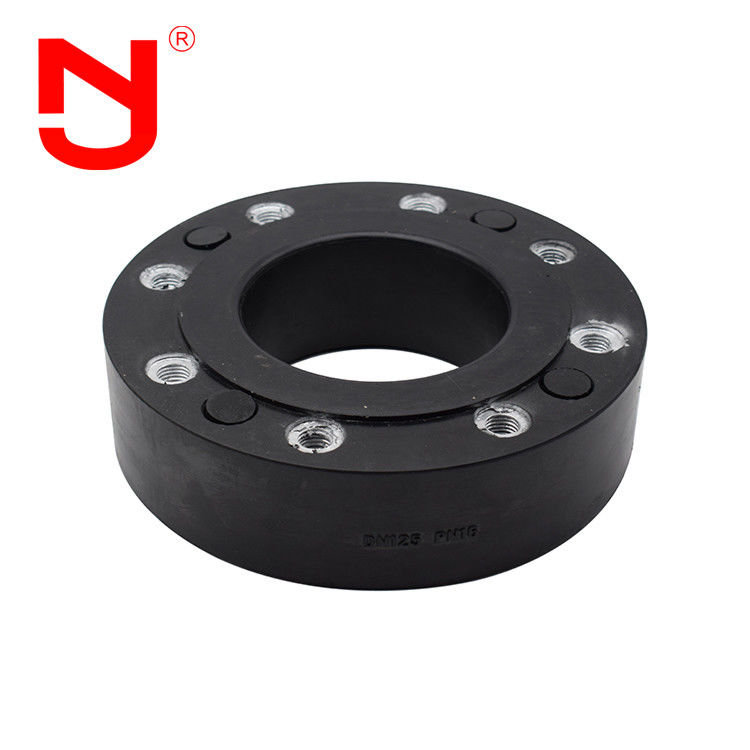

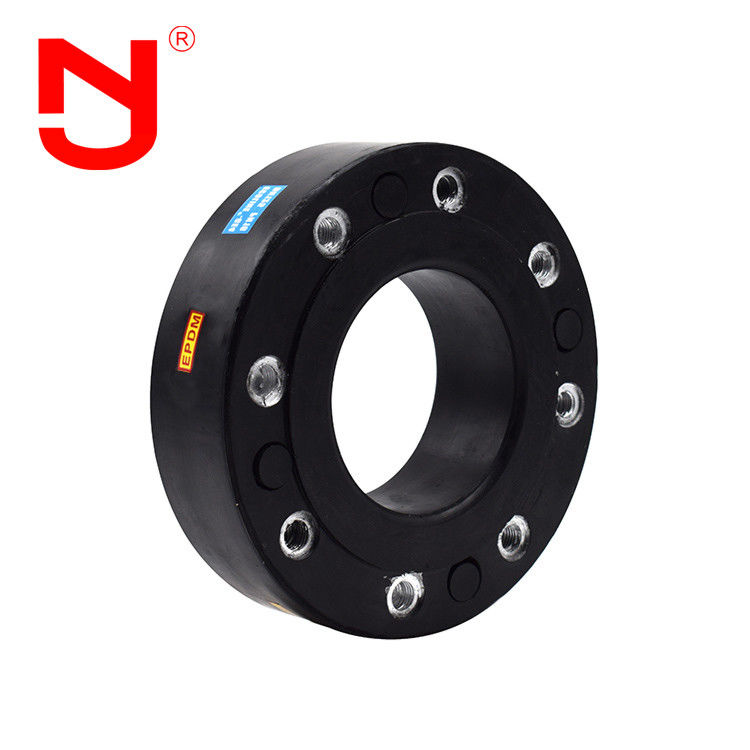

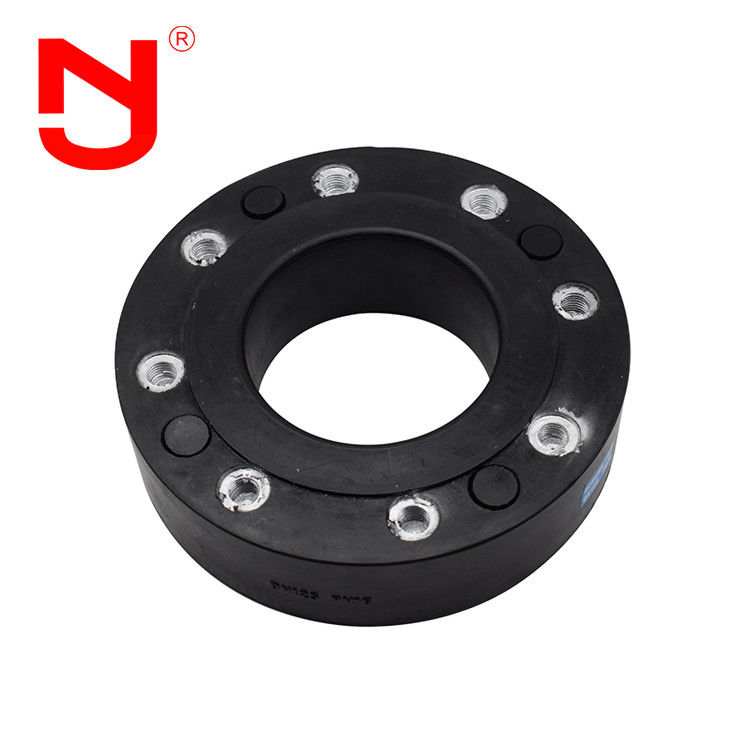

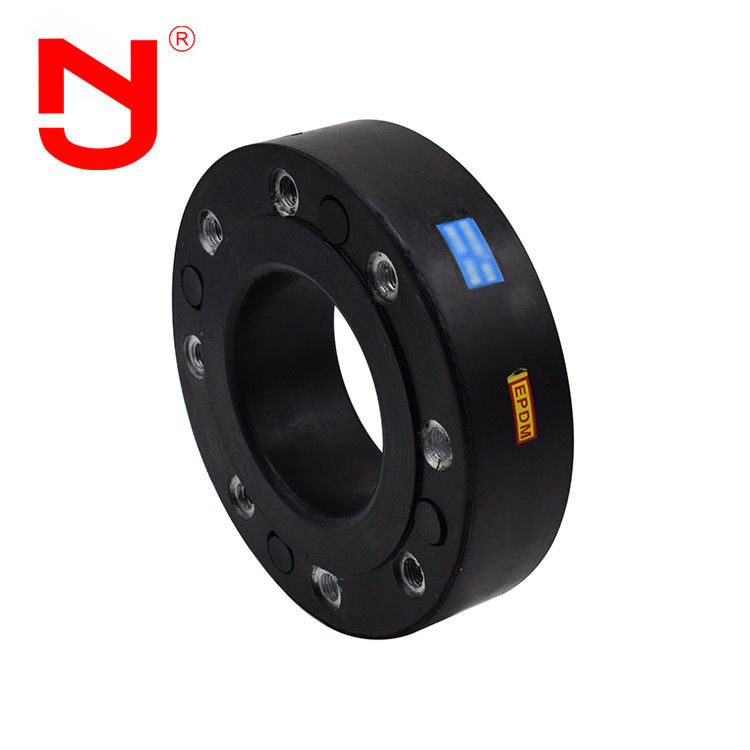

RFJH Rubber Metal Expansion Joint Type Rubber Flexible Connector
Combining the high tensile strength of metals with the viscoelasticity of synthetic rubbers (EPDM, NBR, or silicone), these fittings excel in environments requiring dynamic flexibility and structural durability. The metal segments ensure secure, leak-proof connections via threaded or clamped interfaces, while the rubber elements absorb shock, thermal expansion, and acoustic noise, preventing fatigue failure in automotive, HVAC, or hydraulic systems.
Specifications of Rubber Metal Expansion Joint
Technical data of Rubber Metal Expansion Joint
| Main data of Rubber Metal Expansion Joint |
| Size |
Face to face Length
mm |
D
mm |
D 1
mm |
n*M |
L1
mm |
| mm |
| 20 |
70 |
109 |
75 |
4xM12 |
12 |
| 25 |
119 |
85 |
16 |
| 32 |
145 |
100 |
4xM16 |
| 40 |
156 |
110 |
| 50 |
171 |
125 |
| 65 |
192 |
145 |
| 80 |
207 |
160 |
8xM16 |
18 |
| 100 |
227 |
180 |
| 125 |
257 |
210 |
| 150 |
294 |
240 |
8xM20 |
| 200 |
90 |
343 |
295 |
20 |
Note: 1. The special requirements of rubber metal pipe connector can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber metal pipe connector can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the rubber metal pipe connector above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the rubber metal pipe connector shall be installed with anti falling device.
Typical installation
The installation in the piping of the anti-vibration joints near of pumps, compressors, control devices, valves, operating machines, etc., allows to interrupt the propagation of sound waves and to absorb small vibrations.
Rubber Metal Expansion Joint production Flow
Do you know how is a Rubber Metal Expansion Joint made?Let's see with JINGNING.
It is very important to select the appropriate rubber metal expansion joint of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal expansion joint flange for any application.
Rubber Metal Expansion Joint Advantage
1. The rubber metal expansion joint is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.
2. Rubber metal expansion joint are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.
3. The natural rubber content of expansion joint flange is 47%, which can be used continuously for 15 years without aging.
Rubber Metal Expansion Joint Application
Rubber metal expansion joint are mainly used for heating, pumping and air conditioning of apartment buildings, hospitals, schools and other facilities.Applicable liquid environment of expansion joint flange: water, seawater, weak acid and weak alkali, etc.；Maximum working pressure of rubber metal pipe connector: 10 bar；Maximum continuous working temperature of rubber metal expansion joint : + 100 ℃.
FAQ
Q1:Can the rubber metal expansion joint be marked with customized logo?
A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q2:What’s the face to face length of rubber metal expansion joint ?
A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.
Q3:Can you provide drawings of rubber metal expansion joint ?
A3:Yes,we could provide drawings for you.Please contact us to get the drawing of expansion joint flange.
Q4:What certificates of rubber metal expansion joint can you provide?
A4:We could provide CE,ISO certificate.
