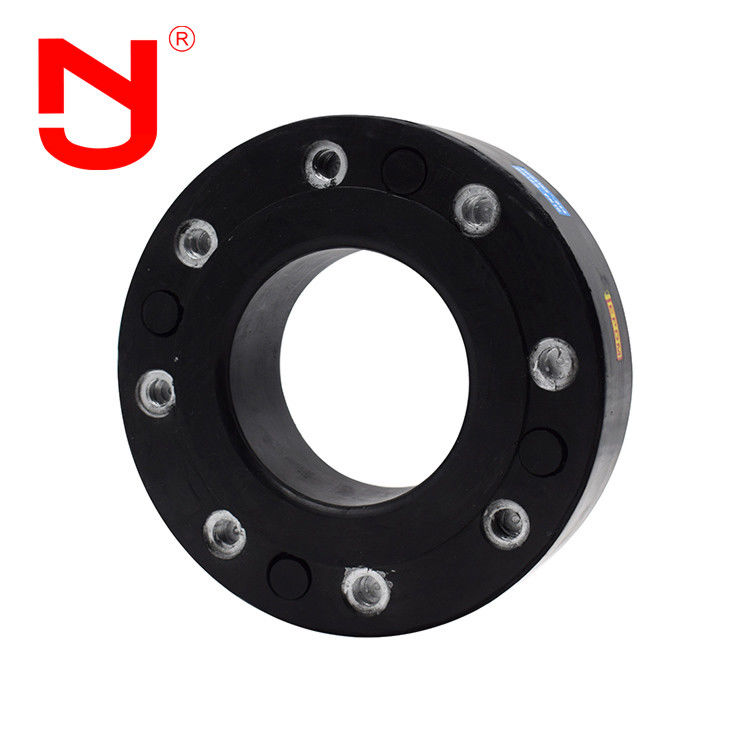

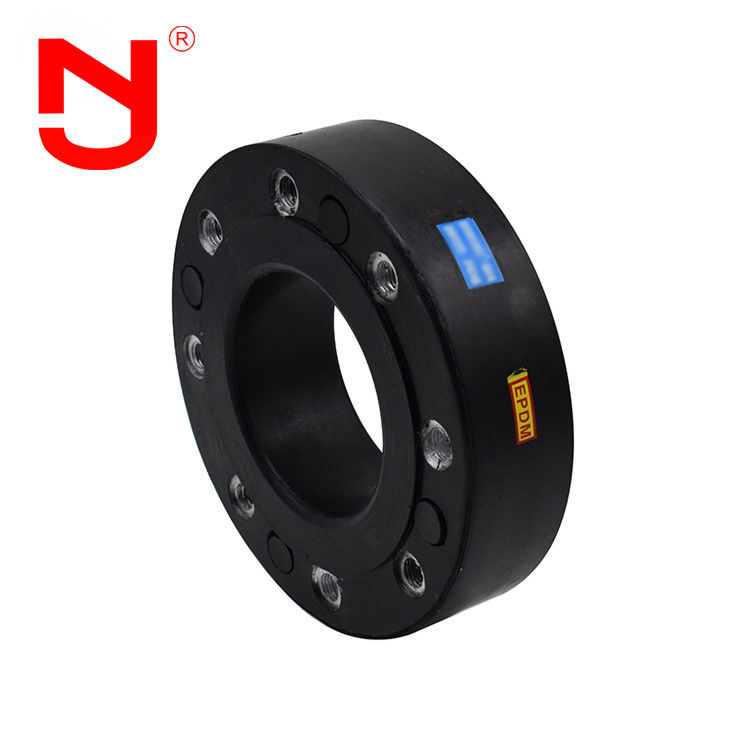

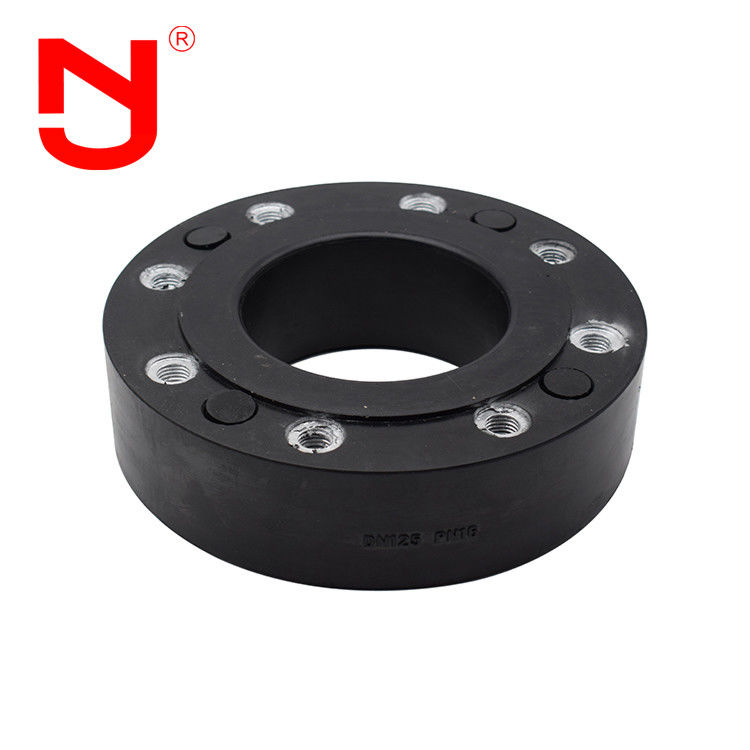

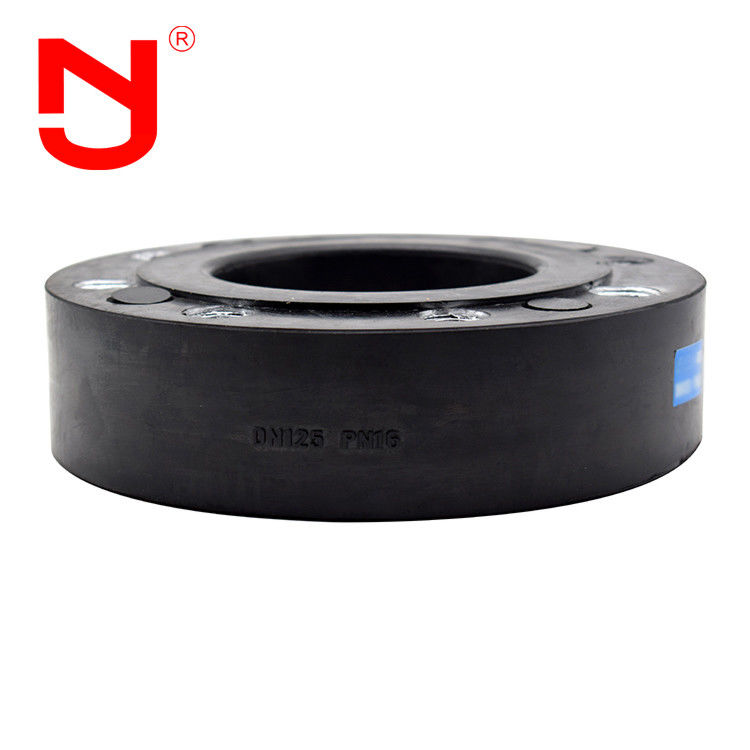

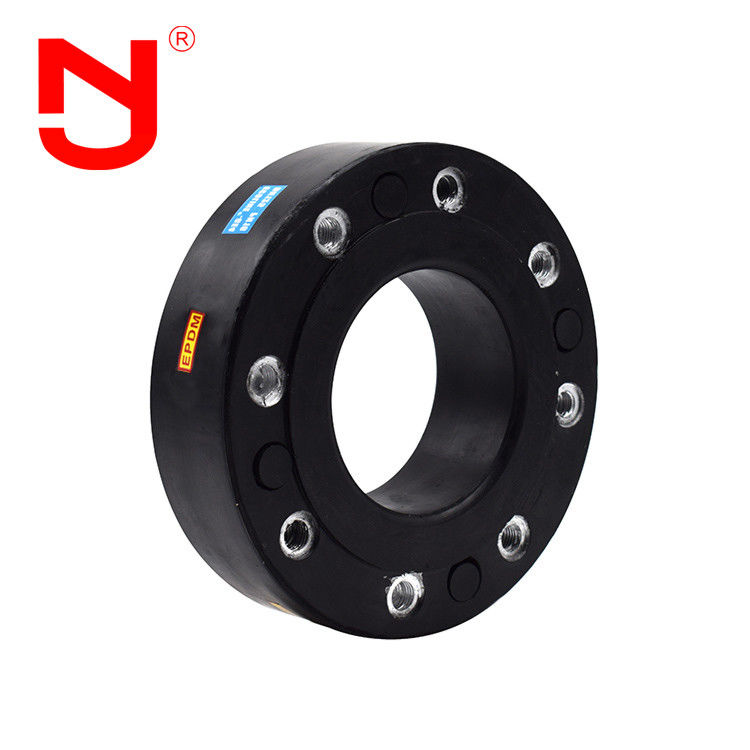

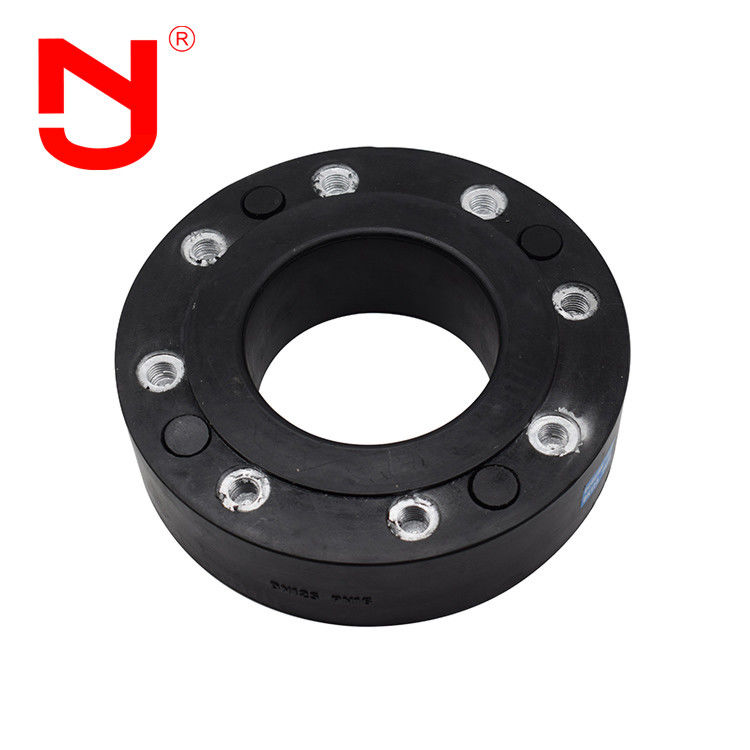

NR Rubber Metal Flexible Joint in Pipes Class 150 Flanged Type
Rubber metal flexible joint in pipes, Certified to SAE J1404, ISO 1436, and other industry standards, these connectors balance flame-retardant properties (via halogen-free rubbers) with anti-static safety in explosive atmospheres. Unlike all-metal alternatives, they eliminate galvanic corrosion risks at dissimilar material junctions while offering superior noise/vibration reduction—key for marine, renewable energy, or compressed air systems prioritizing longevity and operational silence.
Specifications of Rubber Metal Flexible Joint in Pipes
Technical data of Rubber Metal Flexible Joint in Pipes
| Main data of Rubber Metal Flexible Joint in Pipes |
| Size |
Face to face Length
mm |
D
mm |
D 1
mm |
n*M |
L1
mm |
| mm |
| 20 |
70 |
109 |
75 |
4xM12 |
12 |
| 25 |
119 |
85 |
16 |
| 32 |
145 |
100 |
4xM16 |
| 40 |
156 |
110 |
| 50 |
171 |
125 |
| 65 |
192 |
145 |
| 80 |
207 |
160 |
8xM16 |
18 |
| 100 |
227 |
180 |
| 125 |
257 |
210 |
| 150 |
294 |
240 |
8xM20 |
| 200 |
90 |
343 |
295 |
20 |
Note: 1. The special requirements of rubber metal pipe connector can be customized according to the user's drawing. Flange standard is GB / t9115.1-2000. Various flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, en, JIS, ISO, etc.) can be selected for production. The rubber ball of rubber metal pipe connector can be used as natural rubber, ethylene propylene diene monomer rubber, chloroprene rubber, butyl rubber, butadiene rubber, fluorine rubber, etc. When the rubber metal pipe connector above DN200 is used for suspended water supply, the pipe must have fixed support or fixed support, otherwise the rubber metal pipe connector shall be installed with anti falling device.
Typical installation
The installation in the piping of the anti-vibration joints near of pumps, compressors, control devices, valves, operating machines, etc., allows to interrupt the propagation of sound waves and to absorb small vibrations.
Rubber Metal Flexible Joint in Pipes production Flow
Do you know how is a Rubber Metal Flexible Joint in Pipes made?Let's see with JINGNING.
It is very important to select the appropriate rubber metal flexible joint in pipes of the pipeline, understand the compatibility of the medium with the selected material, the full temperature, pressure and vacuum range, the required movement and the size between the pipeline flanges. With this information, Jingning application engineers can help determine the ideal expansion joint flange for any application.
Rubber Metal Flexible Joint in Pipes Advantage
1. The rubber metal flexible joint in pipes is galvanized for 15 minutes, resistant to high pressure, high temperature, oil, wear, corrosion, acid and alkali.
2. Rubber metal flexible joint in pipes are connected with pumps, valves, fire-fighting equipment, pipes with large vibration and pipes with frequent changes of cold and heat.
3. The natural rubber content of rubber metal flexible joint in pipes is 47%, which can be used continuously for 15 years without aging.
Rubber Metal Flexible Joint in Pipes Application
Expansion joint flange are mainly used for heating, pumping and air conditioning of apartment buildings, hospitals, schools and other facilities.Applicable liquid environment of rubber metal flexible joint in pipes: water, seawater, weak acid and weak alkali, etc.；Maximum working pressure of rubber metal pipe connector: 10 bar；Maximum continuous working temperature of rubber metal pipe connector: + 100 ℃.
FAQ
Q1:Can the rubber metal flexible joint in pipes be marked with customized logo?
A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q2:What’s the face to face length of rubber metal flexible joint in pipes?
A2:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.
Q3:Can you provide drawings of rubber metal flexible joint in pipes?
A3:Yes,we could provide drawings for you.Please contact us to get the drawing of expansion joint flange.
Q4:What certificates of rubber metal flexible joint in pipes can you provide?
A4:We could provide CE,ISO certificate.
